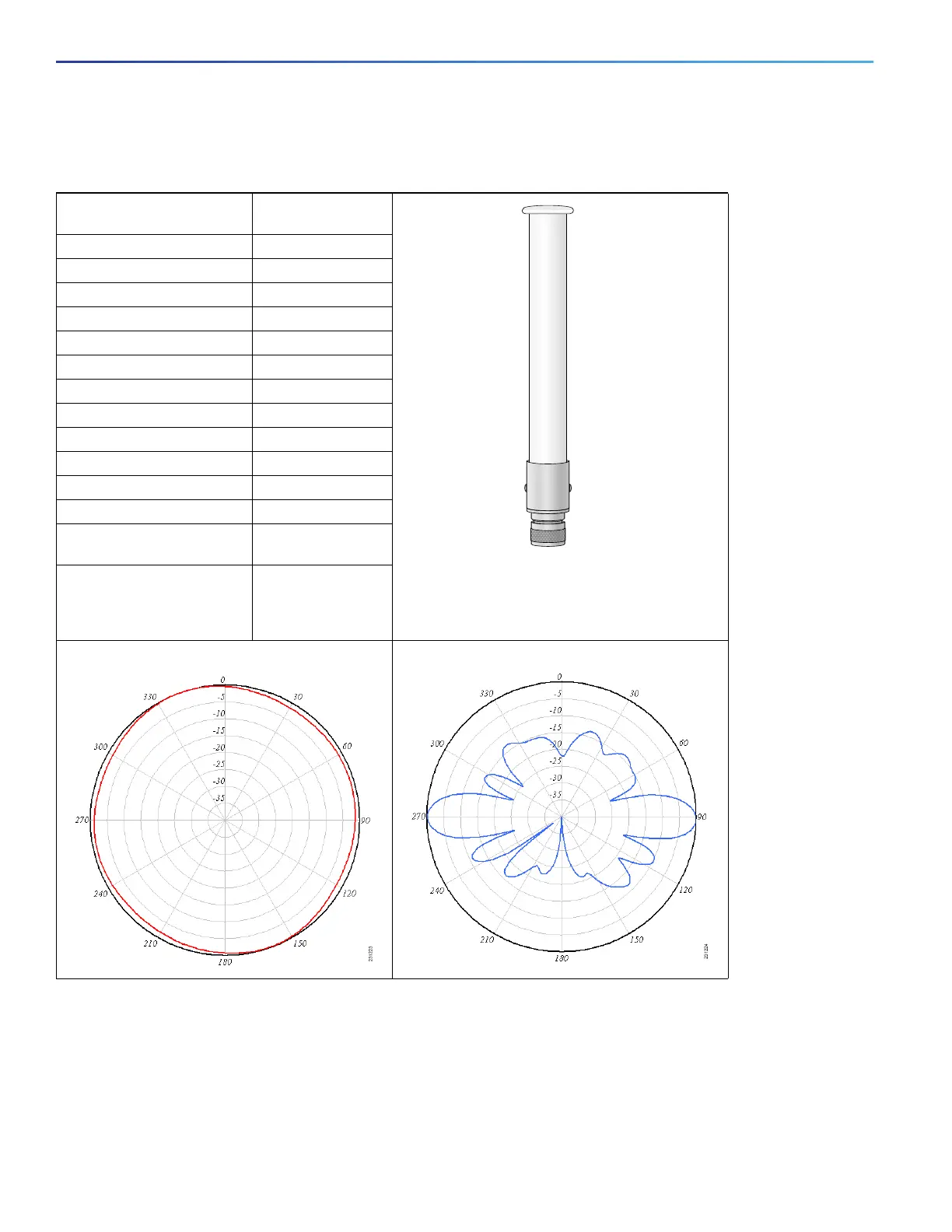

Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Technical Specifications
System Requirements
This antenna is designed for use with the Cisco Aironet 1520 Outdoor Mesh Access Points. The antenna is compatible with
Cisco Aironet 1505 and 1510 Outdoor Mesh Access Points.
Antenna type Omnidirectional
colinear array
Operating frequency range 4900–5850 MHz
1.7:1 VSWR bandwidth 4900–5850 MHz
Nominal input impedance 50 Ohms
Gain (4900–5000 MHz) 7-dBi
Gain (5400–5850 MHz) 8-dBi
Polarization Linear
E-plane 3-dB beamwidth 16°
H-plane 3-dB bandwidth Omnidirectional
Length 11.0 in. (27.9 cm)
Diameter 1.0 in. (2.54 cm)
Weight 6.0 oz. (160.0 g)
Connector type N-Male
Operating temperature –22°F - 158°F
(–30°C - 70°C)
Wind rating 125 mph (201 kmh)
operational
165 mph (265 kmh)
survival
Azimuth Radiation Pattern Elevation Radiation Pattern
231296
