Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)

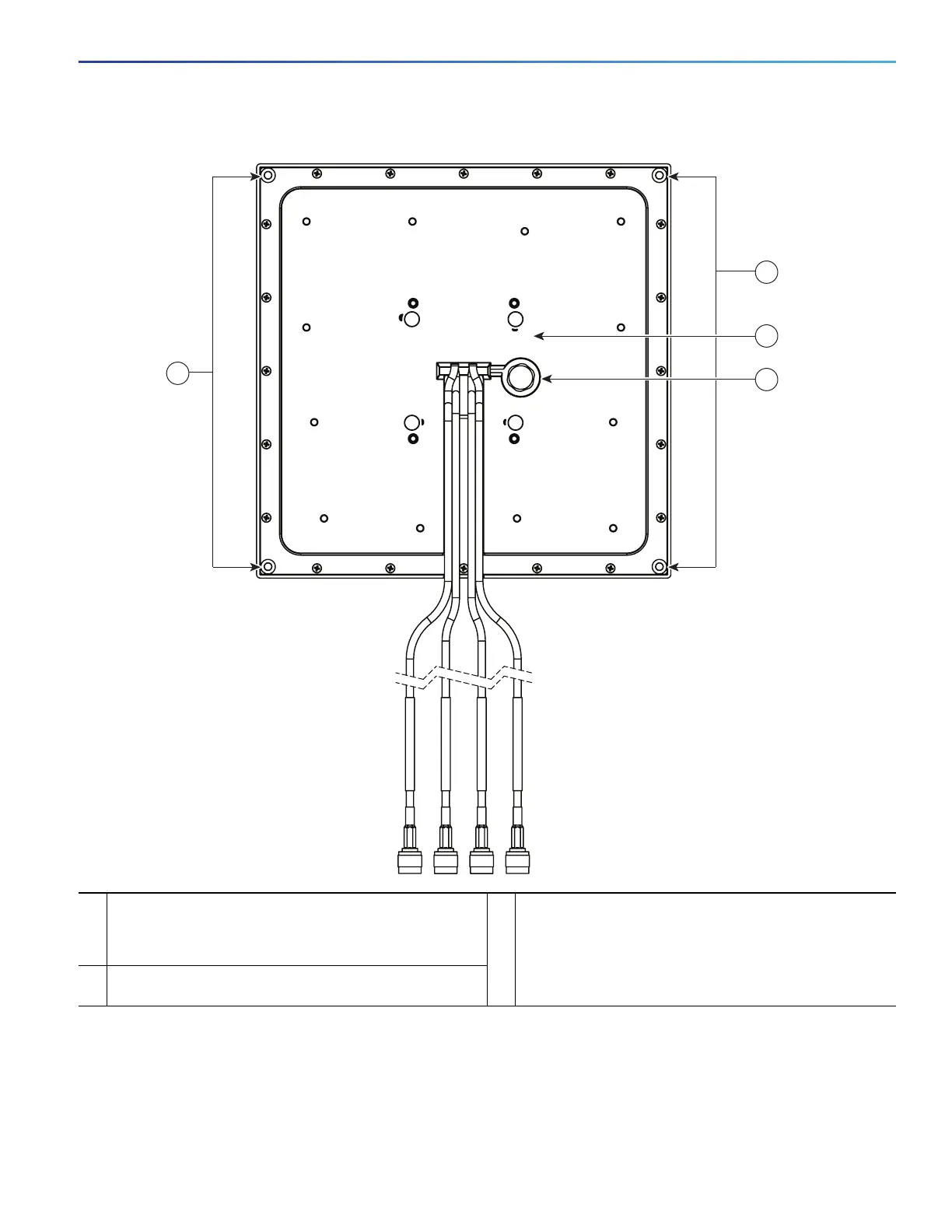

Figure 10 Back of the Antenna with Flush Mounting Screw-Holes Locations
Recommended Cable
This antenna comes with four 3 foot long cables with RP-TNC connectors. If you need a longer cable reach, use
AIR-CAB005LL-R= to extend the length by an additional 5 feet.
1
Screw holes for flush mounting on a wall. Each hole takes
an 8 x 1¼-inch screw.
See Figure 2 for the distances between these holes.
3
Pressure release vent.
2
Spot where the preinstalled articulating flange mount was
removed from.
354039
1
1
2
3
