Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
4. From the exterior of the router, tighten the antenna using the torque wrench. Tighten to 6 to 7 ft-lbs.
5. From the interior of the router, install the coaxial end of the cable to the appropriate connector on your installed module.
The antenna and module ports should be the same color (red, yellow, or green).
NOTE: Some modules require two antennas: a main antenna and a diversity antenna. These modules have two antenna
connectors on the front panel, labeled MAIN and DIV. Be sure to connect the main and diversity antennas to the correct module
connectors.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)

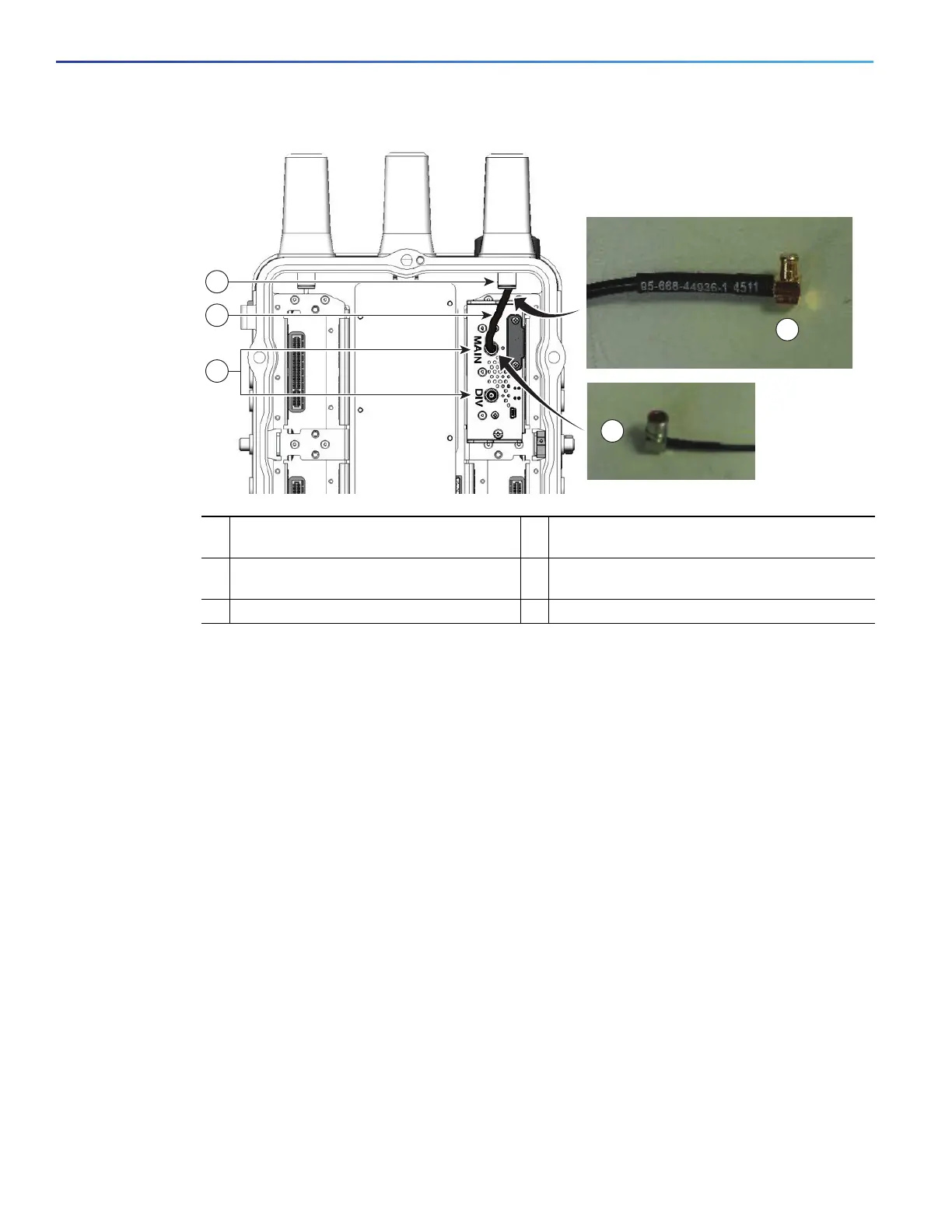

1 Antenna base 2 Antenna-to-router coaxial antenna cable (with
QMA-male connector)
3 Connected Grid module coaxial connectors
(QMA-female)
4 MCX end
5 QMA end
3
300646
1
2
4
5
