Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)

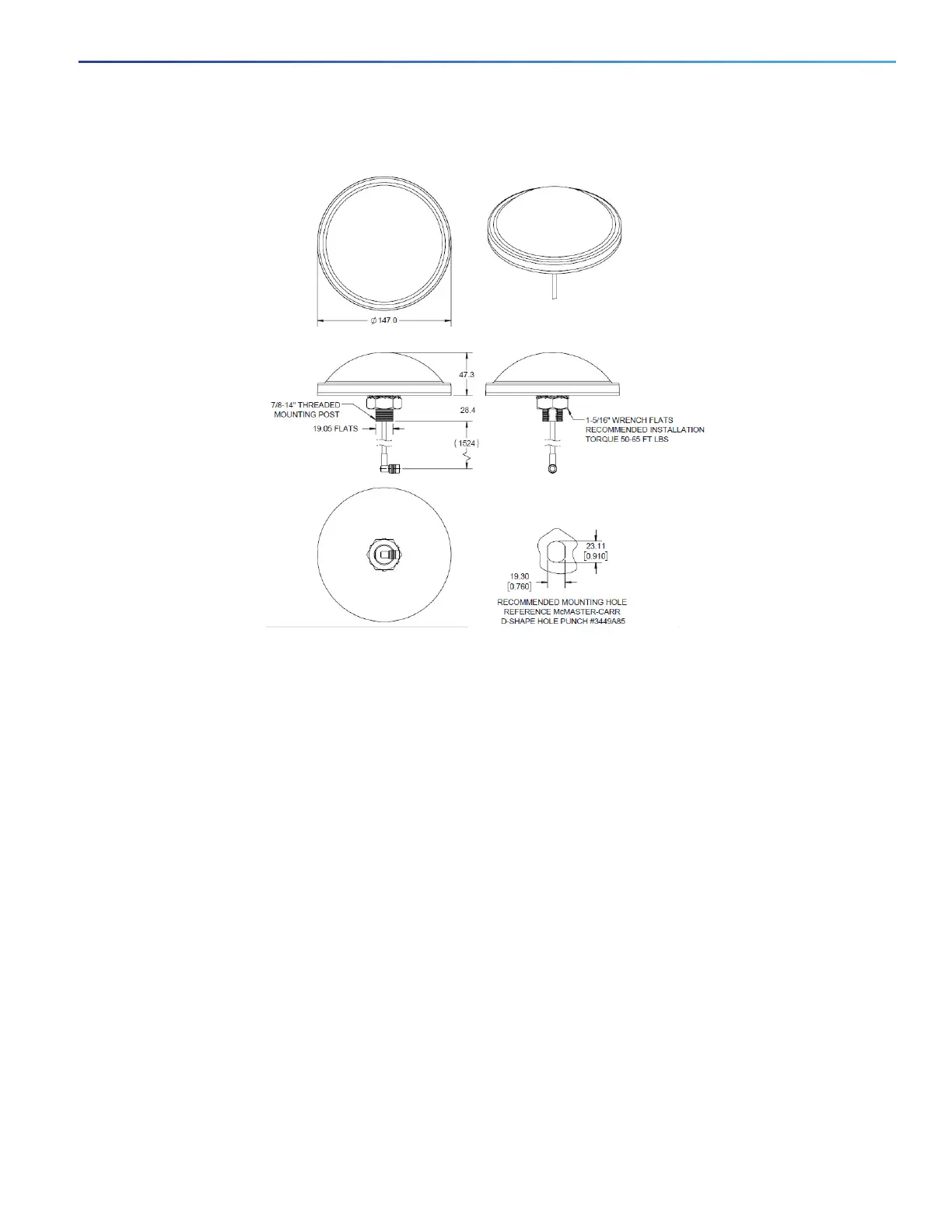

Figure 2 Dimensions
NOTE: Antenna Dimensions are shown in millimeters, except where explicitly specified in inches denoted by " or [ ].
Antenna Installation
The antenna installation includes the following procedures:
 Tools and Equipment Required
 Mounting Components
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tools to install the antenna on the router:
 1-5/16" (1.3125"), or 33.34mm open-end wrench. Recommended torque is 50-65 ft-lb or 68-88 Nm.
 McMaster Carr Double-D Hole Punch P/N 3449A85 or equivalent. Alternatively, you can drill or use a circular hole punch to
create a 0.91" diameter hole.
