Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)

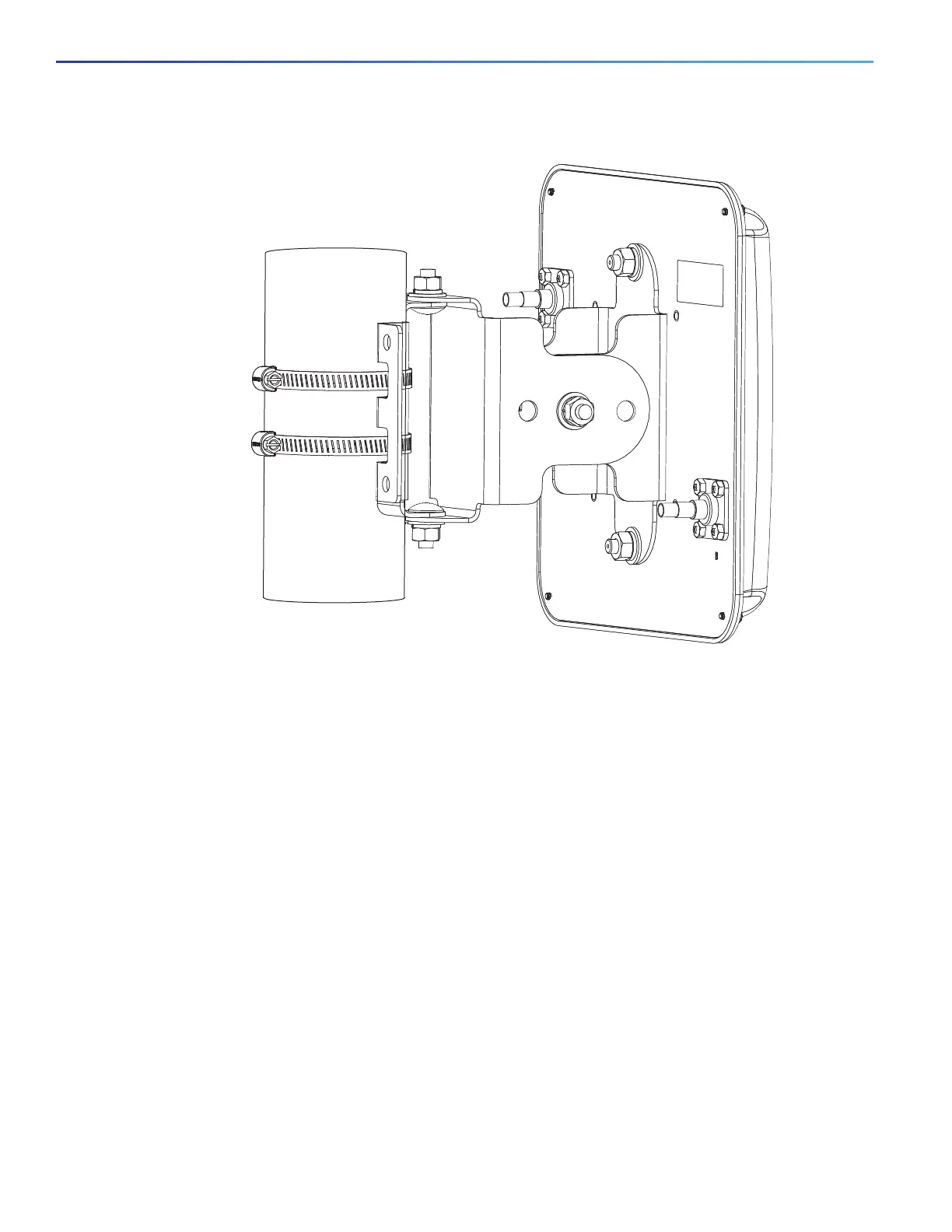

Figure 5 Adjusting Antenna Position
NOTE: Cisco recommends grounding the antenna. See the Grounding the Antenna for details.
Installing the Optional Mounting Bracket Kit
Using an optional antenna mounting bracket kit, the AIR-ANT2413P2M-N antenna can be mounted directly on an access point
in a strand mount or pole mount environment. The antenna bracket kit contains four bracket sections and fasteners that you can
assemble in multiple configurations to position and aim the directional antenna in a range of positions. For more information on
mounting the antenna with the optional mounting bracket, refer to Installing Antenna Brackets on Cisco 1550 Series Outdoor
Mesh Access Points.
Mounting on a Vertical Surface
The antenna can be wall mounted. Hardware is not included for wall-mount installation.
Follow these steps to mount your antenna on a vertical surface.
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown in Figure 1, applying a maximum nut-tightening torque
of 55 in-lbf (6.2 Nm).
3. Attach elevation adjustable bracket as shown in Figure 2 and loosely secure hardware. The carriage bolt square holes must
be on the inside.
4. Using the appropriate customer-supplied anchors and screws, attach the azimuth adjustable bracket to the wall as shown:
