Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)

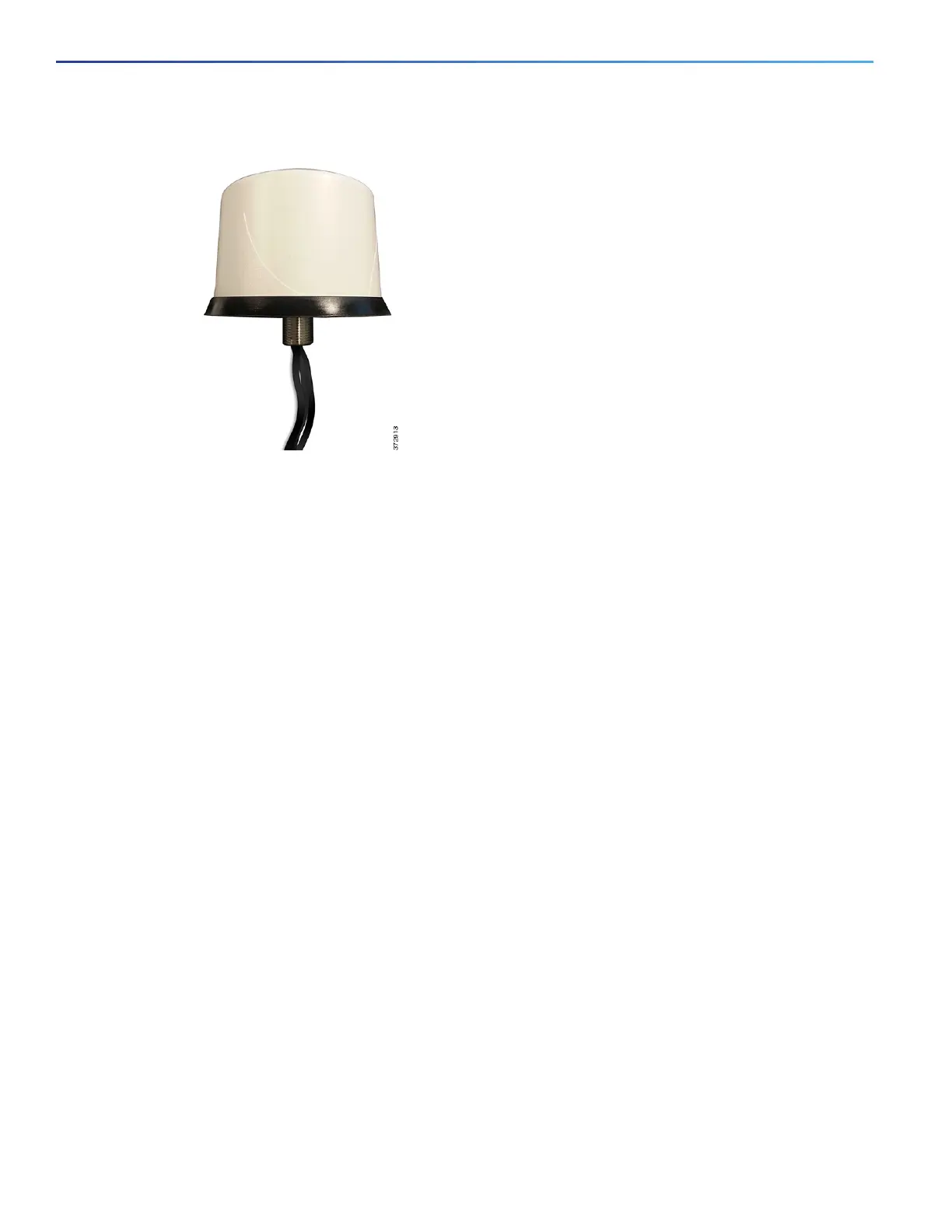

Figure 1 4G-LTE-ANTM-O-3 Antenna
Parts List
The shipment of your antenna includes the following items:
 One Antenna Unit
 Two SMA-Female to TNC-Male Adapters
 Installation Guide
Features of the 4G-LTE-ANTM-O-3-B Antenna
The 4G-LTE-ANTM-O-3-B antenna supports the following features:
 No tune, multiband coverage, dual 4G LTE, and GPS L1 frequencies.
 Metal 5/8-inch stud mount with serrated face nut provides single cable exit for easier installation or antenna replacement.
 Attractive low-profile housing for added overhead clearance.
 IP67-compliant design provides maximum protection against water or dust under severe environmental conditions.
 High-performance, low-loss cable, and high-quality connectors for maximum Radio Frequency (RF) system efficiency.
 UV-resistant red, blue, black, or white radome.
Technical Specifications
Table 1 lists the specifications for the RF antenna.

Cisco AIR-ANT2544V4M-R Specifications

General

Brand	Cisco
Model	AIR-ANT2544V4M-R
Category	Antenna
Language	English
