Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Antenna Installation
Follow these steps to install the GPS antenna onto the router:
NOTE: These installation steps are for the CGR1120 router.
1. Mount the antenna in its proper location by using the provided antenna bracket.
2. Route and connect the LMR-100 cable to the TNC-to-N-connector adapter installed at the building entry panel.
3. At the inside of the entry panel, install the LMR-100 cable to the N-connector on the adapter.
4. Route the cable to the router and attach to the antenna connector.

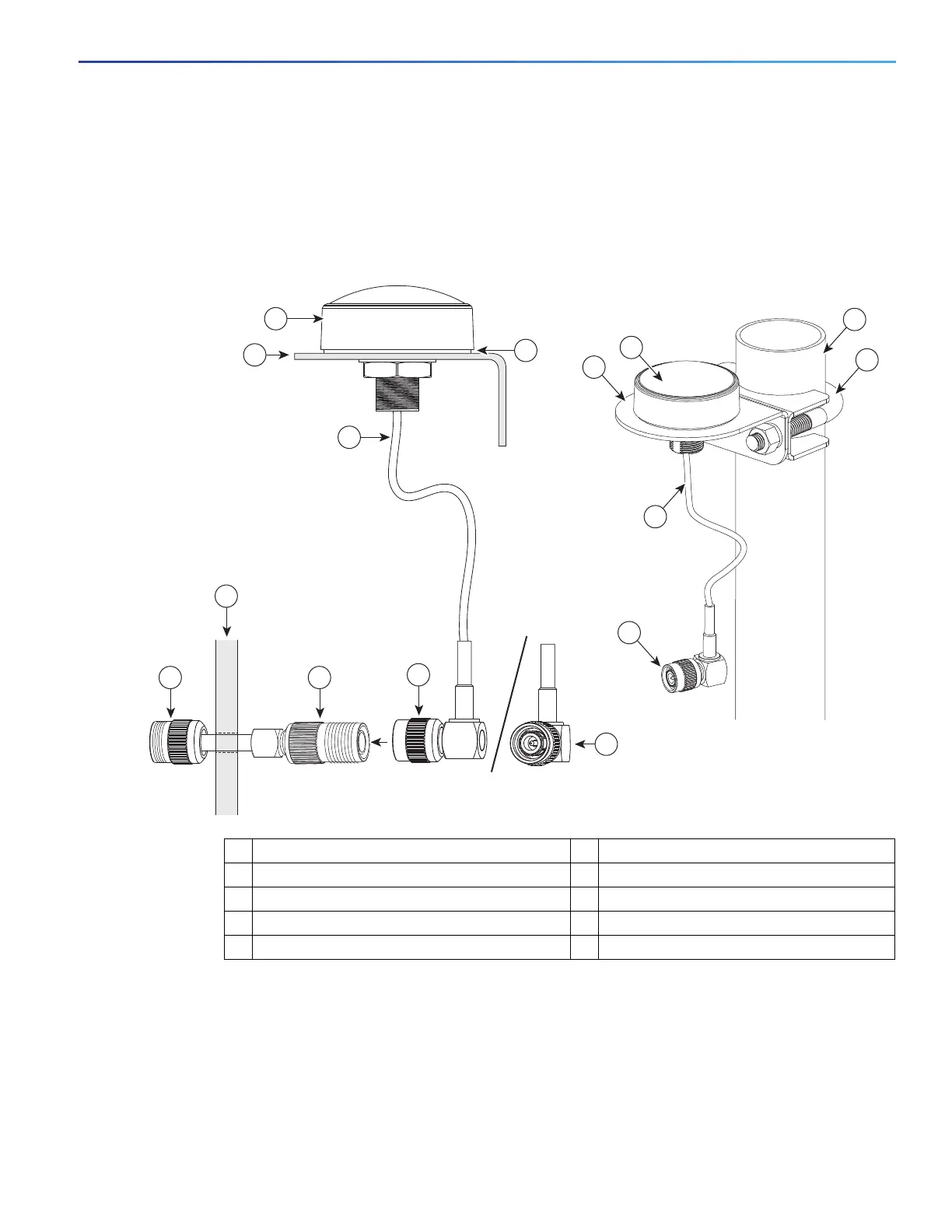

1 GPS antenna 2 Mounting L-bracket
3 LMR-100 cable 4 Right-angle TNC (m) connector
5 Adapter, TNC connector (f) 6 Building entry panel
7 Adapter, N-connector (f) to router 8 VHT adhesive tape
9 2” (outside dimension) pipe/mast 10 U-bolt
300688
1
2
4
1
4
3
2
9
10
8
3
4
57
6
