Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna

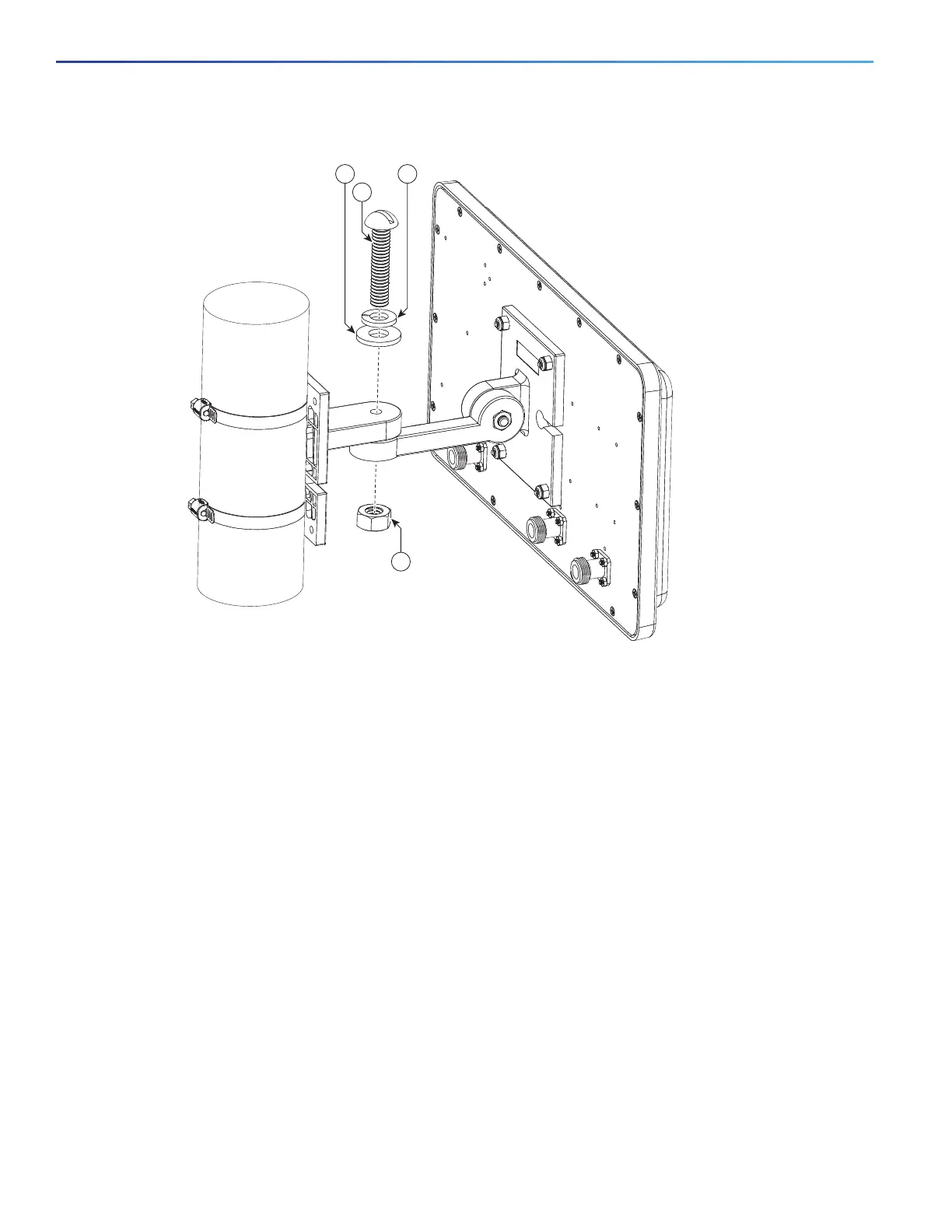

Figure 4 Attaching Antenna Assembly
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (2
places) to a maximum torque of 30 in-lbf (3.4 Nm). The bracket allows the antenna position to be adjustable to +/–45
degrees azimuth and +/–60 degrees elevation.
Note: Cisco recommends grounding the antenna. See Grounding the Antenna, page 235.
Mounting on a Vertical Surface
The antenna can be wall mounted. Hardware is not included for wall-mount installation.
To mount your antenna on a vertical surface:
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown in Figure 1, applying a maximum nut-tightening
torque of 12 in. lbf (1.1 Nm).
3. Attach elevation adjustable bracket as shown in Figure 2 and loosely secure hardware.
4. Using the appropriate customer-supplied anchors and screws, attach the azimuth adjustable bracket to the wall as
shown:
1 Azimuth adjustment bolt 3 1/4-in. flat washer
2 Lock washer 4 Hex nut
