Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
2. Place the pipe clamps into the grooves on the bracket.
3. Attach the bracket to the top of the mast. The top surface of the mounting mast must not exceed the top surface of the
mounting bracket. Securely tighten hose clamps.
4. Route the cable to the router and attach the cable to the antenna port of the router.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.

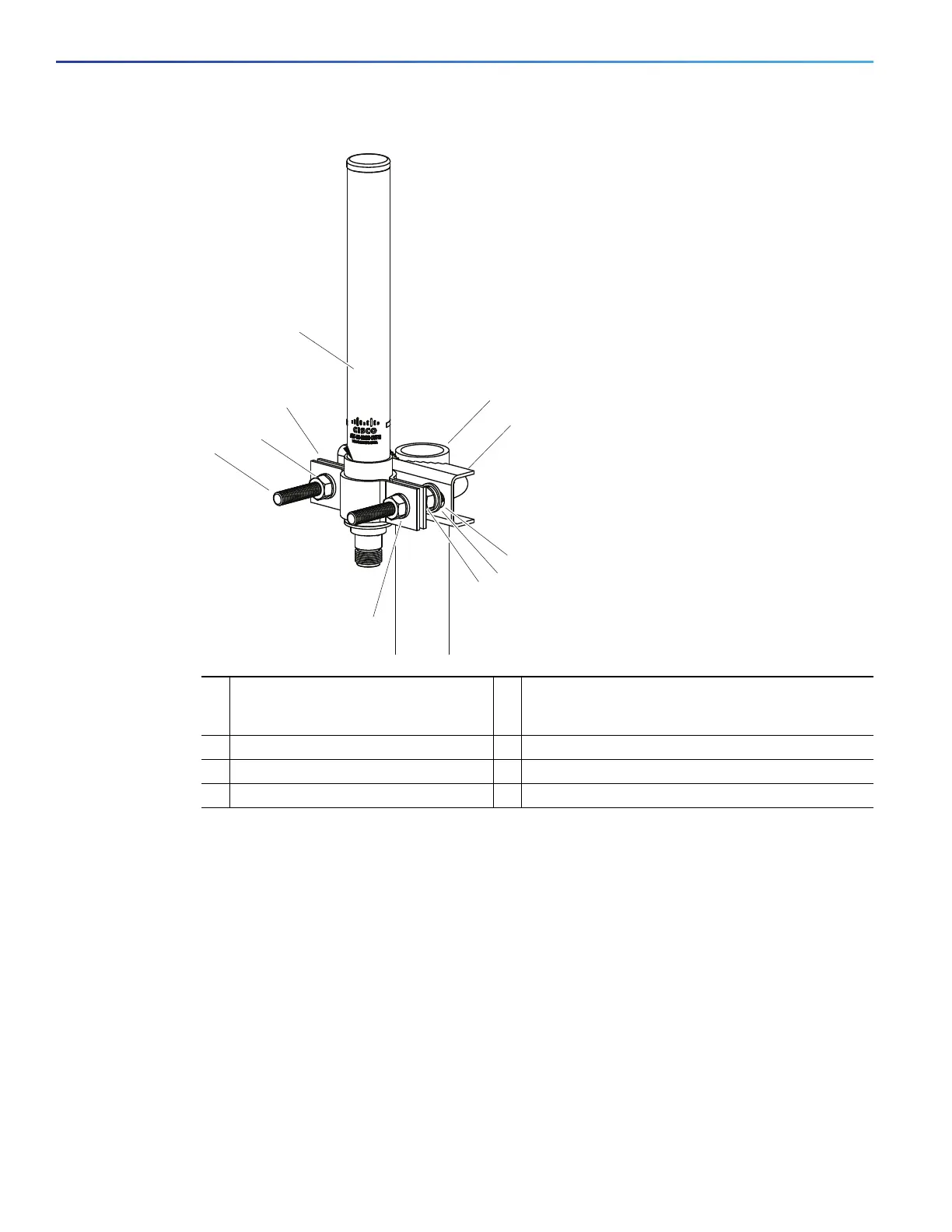

1 Outdoor omnidirectional antenna 2 Aluminum pipe/mast—31.8 mm to 54.0 mm mast
diameter. (For optimum performance, mast height
should sit lower than aluminum tube)
3 Antenna bracket 4 Flat washer
5 Lock washer 6 Hex nut
7 Carriage bolt 8 Pipe clamps
300642
1
7
8
6
2
3
6
4
5
6
