411

Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)

Dimensions

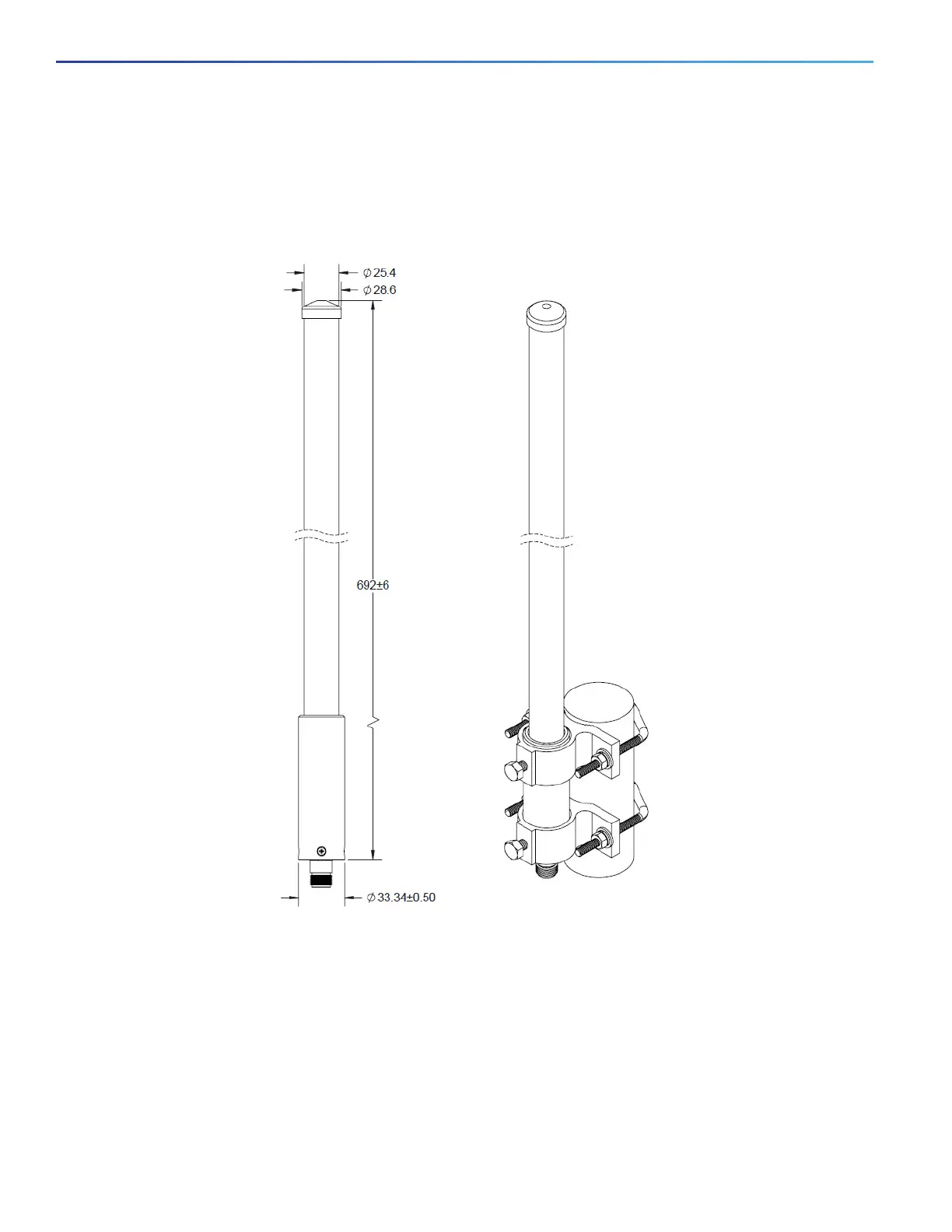

Figure 2 shows the Antenna Dimensions.

Figure 2 Dimensions

NOTE: Antenna dimensions are shown in Millimeters.

Antenna Installation

The antenna installation includes the following procedures:

 Tools and Equipment Required

 Mounting Components

Default Chapter4
