Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)

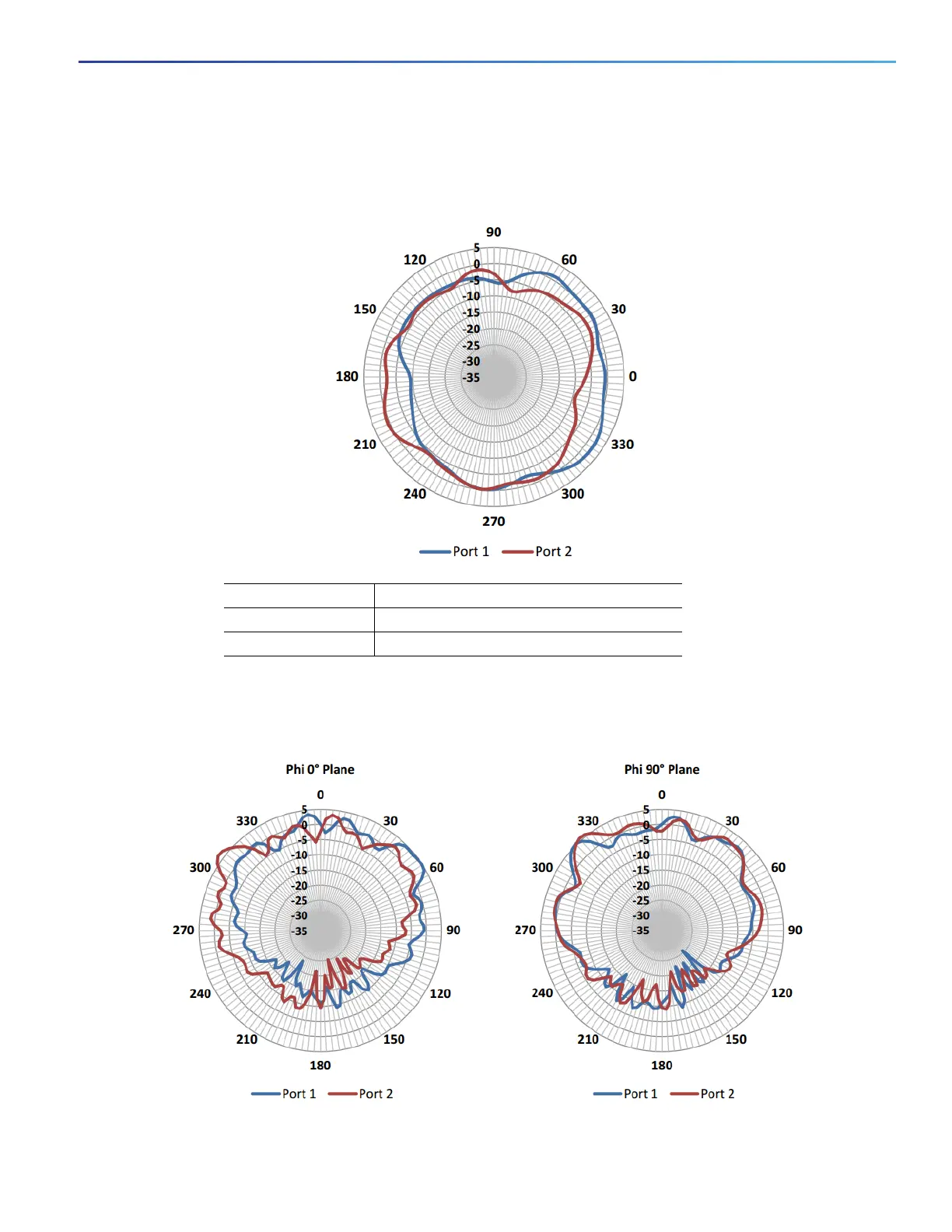

5.9 GHz Antenna Radiation Pattern-Horizontal Plane
Figure 10 5.9 GHz Antenna Radiation Pattern-Horizontal Plane
5.9 GHz Antenna Radiation Patterns-Vertical Plane
Figure 11 5.9 GHz Antenna Radiation Patterns-Vertical Plane
Line Color Description
Blue (
—)Port 1
Red (
—)Port 2
