Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)

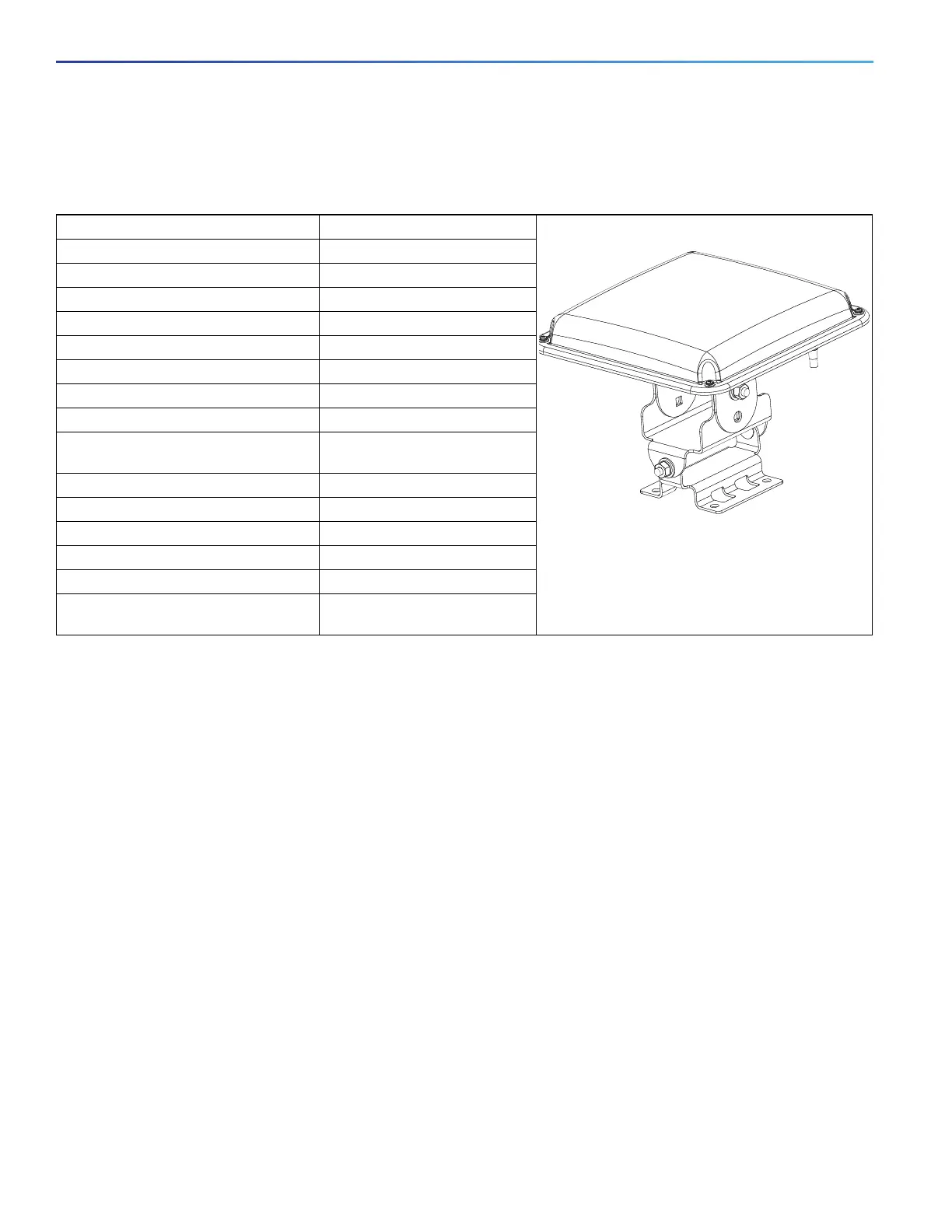

Technical Specifications
Note: The AIR-ANT5114P2M-N antenna may be referred to as a +14 dBI antenna in variety of Cisco documents. The actual
gain of the AIR-ANT5114P2M-N product is +13 dBI, confirmed over many samples of the AIR-ANT5114P2M-N antenna. The
gain of the raw antenna element inside AIR-ANT5114P2M-N is just under 14 dBI, but due to 1dB RF loss of the integrated 30"
length coaxial RF cable, the actual gain of the AIR-ANT5114P2M-N antenna product is 13 dBI maximum.
Table 1
Antenna type 2-Element Patch Array
Operating frequency range 5150–5900 MHz
Nominal input impedance 50 Ohms
Peak gain 13 dBi (see note below)
Polarization Linear, Dual
Elevation plane 3-dB beamwidth 30°
Azimuth plane 3-dB beamwidth 30°
Sidelobe level < –15 dBc
Front-to-back ratio > 25 dB
Cable length and type 30 in. (76.2 cm)
outdoor rated Coax
Connector type N Male
Length 7.8 in. (19.8 cm)
Width 7.8 in. (19.8 cm)
Height 1.2 in. (3 cm)
Weight 21.6 oz. (0.61 kg)
Operating temperature range -40–131°F
(-40–55°C)
