Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Mounting the Antenna on a Ceiling Tile

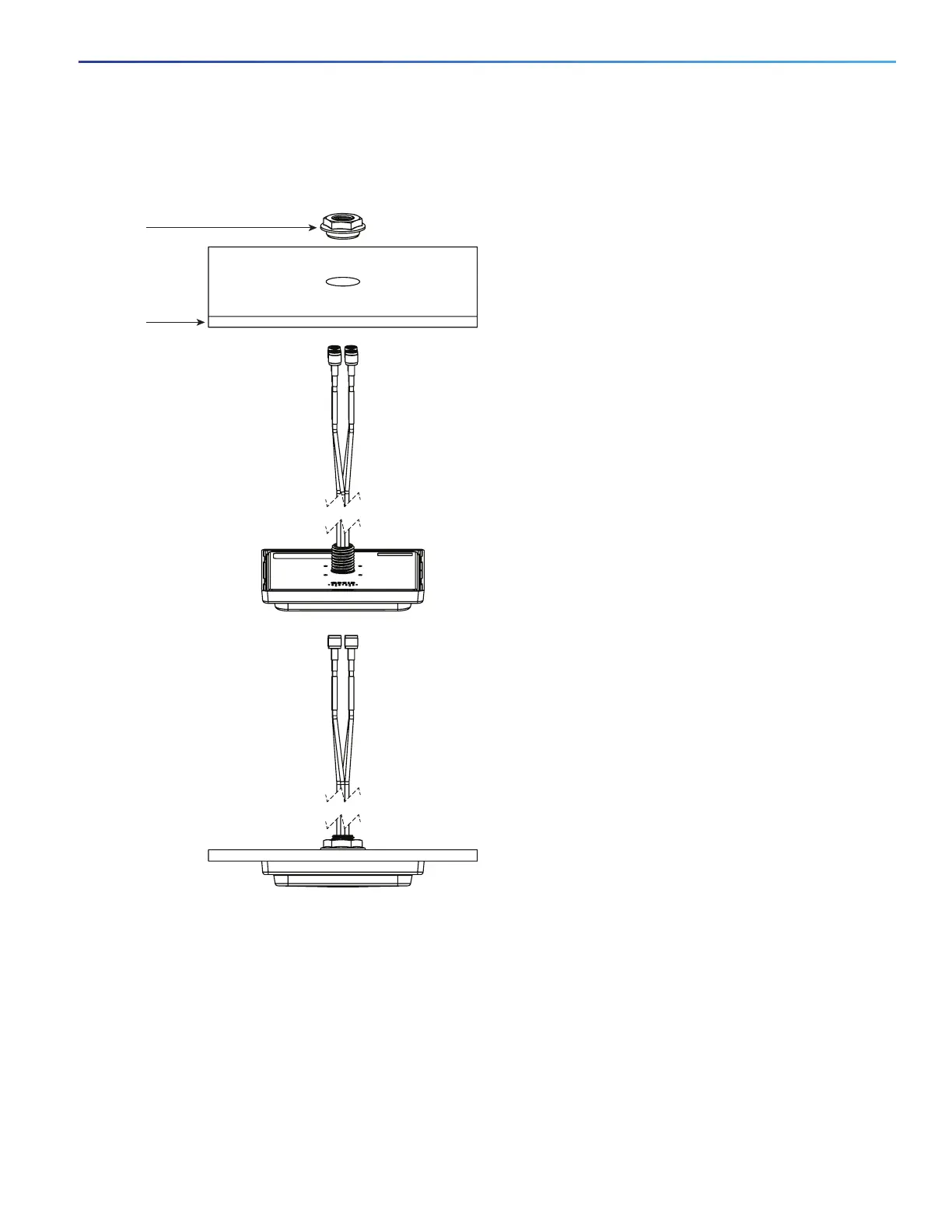

Figure 2 Ceiling Tile Mounting Details
To mount the antenna on a suspended ceiling tile:
1. Mark the mounting location on the ceiling tile.
2. Remove the ceiling tile from the ceiling grids.
3. Use a 1" (2.54 cm) hole saw to cut a hole in the ceiling tile.
4. Insert the antenna cables, one at a time, through the hole in the ceiling tile.
5. Insert the antenna cables, one at a time, through the hole in the plastic nut as shown in Ceiling Tile Mounting Details.
330750
Nut
Ceiling Tile
