Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)

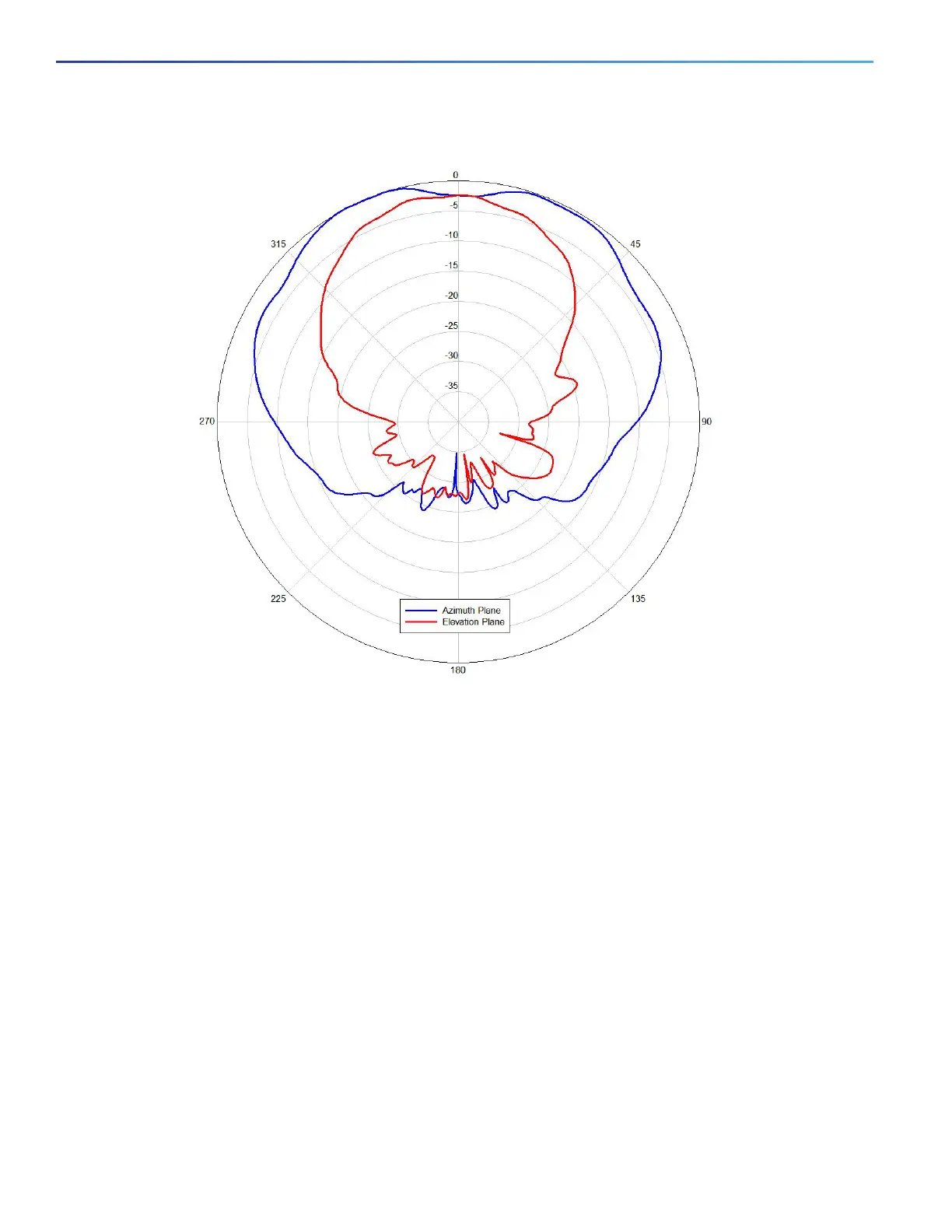

Figure 2 Azimuth and Elevation Radiation Patterns - 5 GHz Band
System Requirements
This antenna is designed for indoor and outdoor use with any Cisco Aironet access point that requires four (4) dual-band
antennas.
Safety Precautions
Translated versions of the following safety warnings are provided in the Safety Warnings for Cisco Aironet Antennas, which is
available at http://www.cisco.com.
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Cisco AIR-ANT2544V4M-R Specifications

General

Brand	Cisco
Model	AIR-ANT2544V4M-R
Category	Antenna
Language	English
