Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)

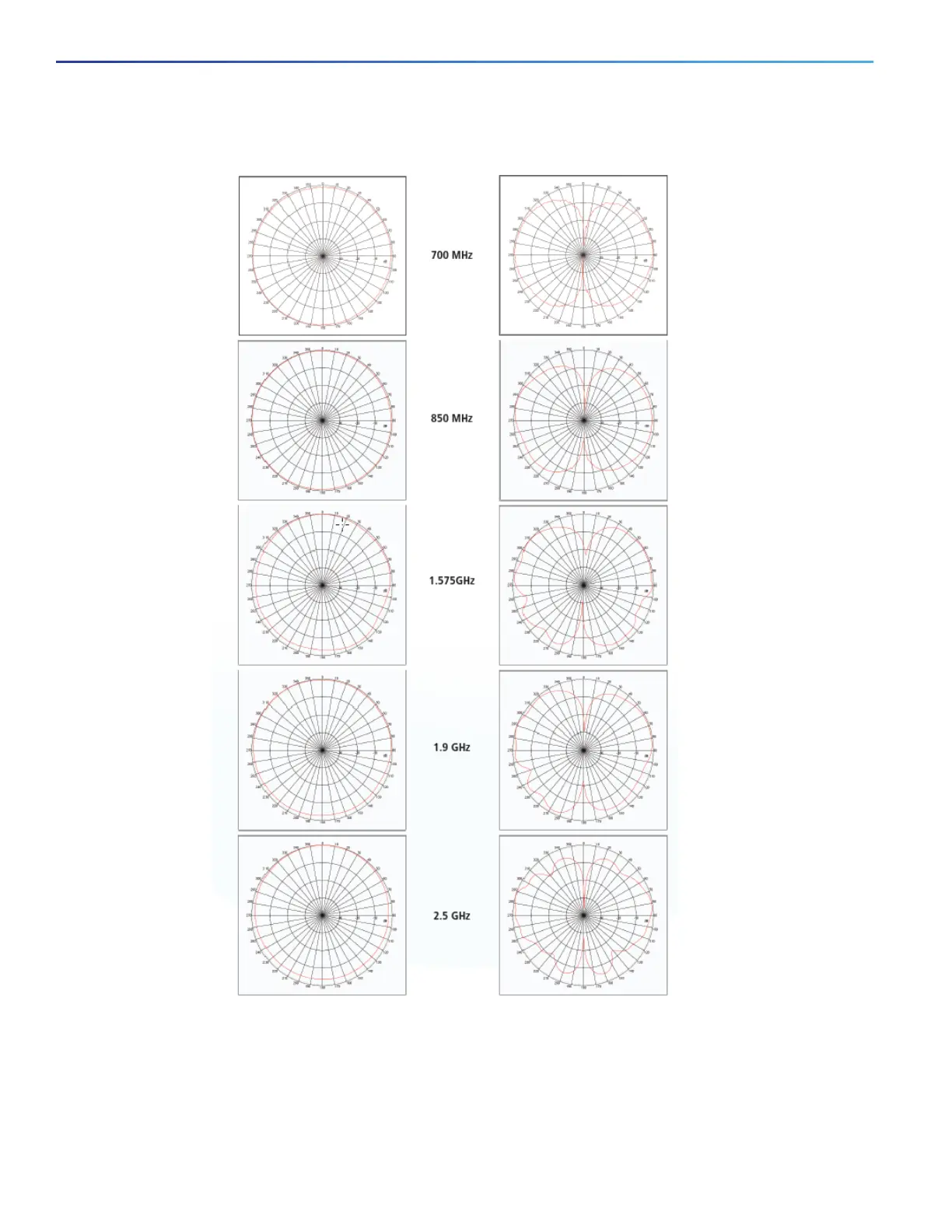

Figure 2 4G Volcano Antenna Radiation Patterns

Contents of the Antenna Kit

The Cisco Multiband Indoor 4G Ceiling-mount Volcano Antenna Kit contains the following items:

 Ceiling-mount Volcano antenna, with integrated TNC cable

300687
