Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
9. Seal the cable connections on the router and the back of the antenna by using weatherproof sealing tape (coax seal) at the
connector junction. Start wrapping at the top of the antenna connector, wrap downward 3 times and end about 2 inches
downward from the center of the connecter junction. Then wrap upwards another 3 times to reach the top of the antenna
connector.
10. To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for
the model of hardware you are installing. Links to hardware installation guides and other information may be found in
Chapter 1, “Additional Information”.
Connecting the Lightning Arrestor
To install a lightning-protection device, please refer to the appropriate Hardware Installation Procedures for the model of
hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1, “Additional
Information”.
Connecting the Antenna to the Router
To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for the
model of hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1,
“Additional Information”.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.

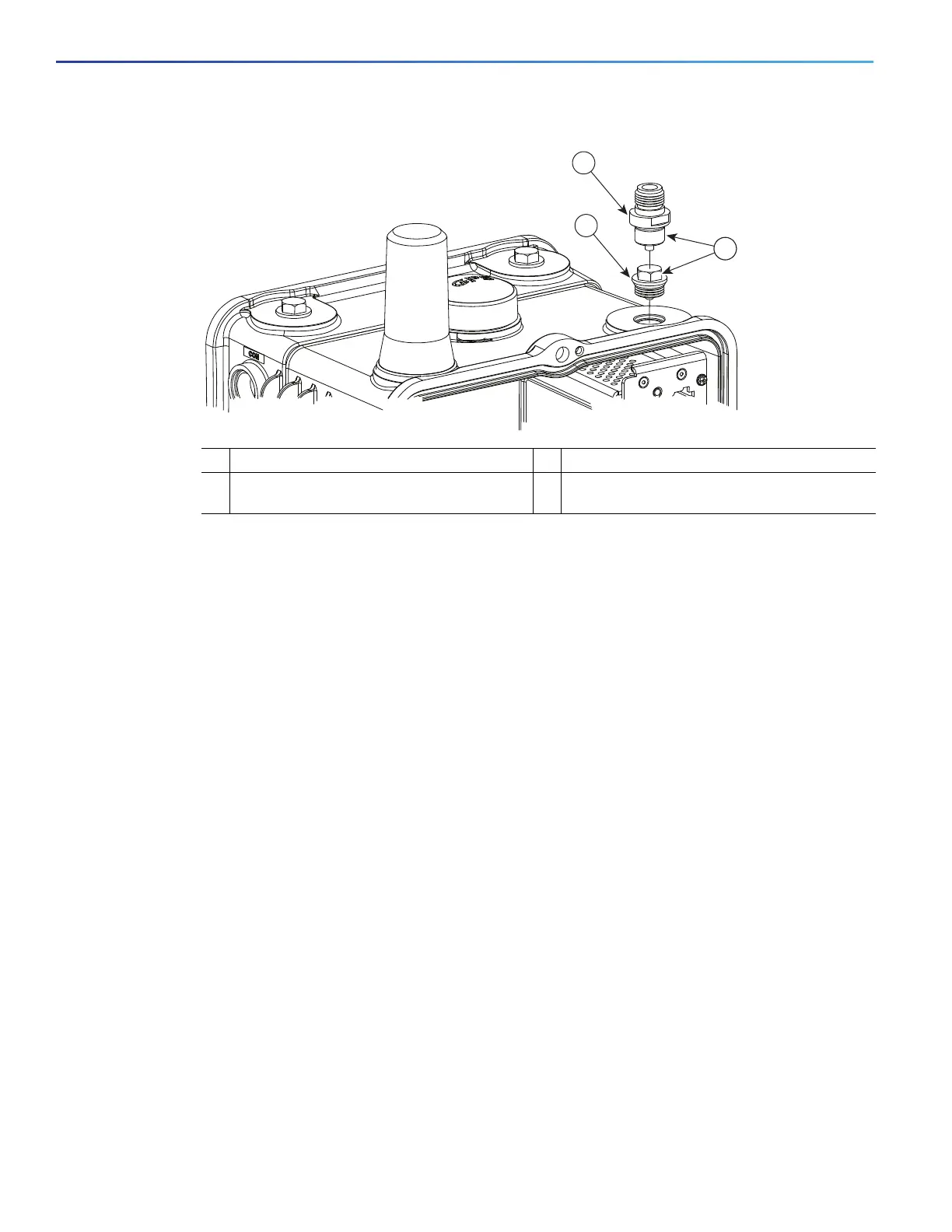

1 N-connector: torque to 6 to 7 ft-lbs 2 Plug: torque to 6 to 7 ft-lbs
3 Ports must have either an antenna, connector,
or plug installed.
