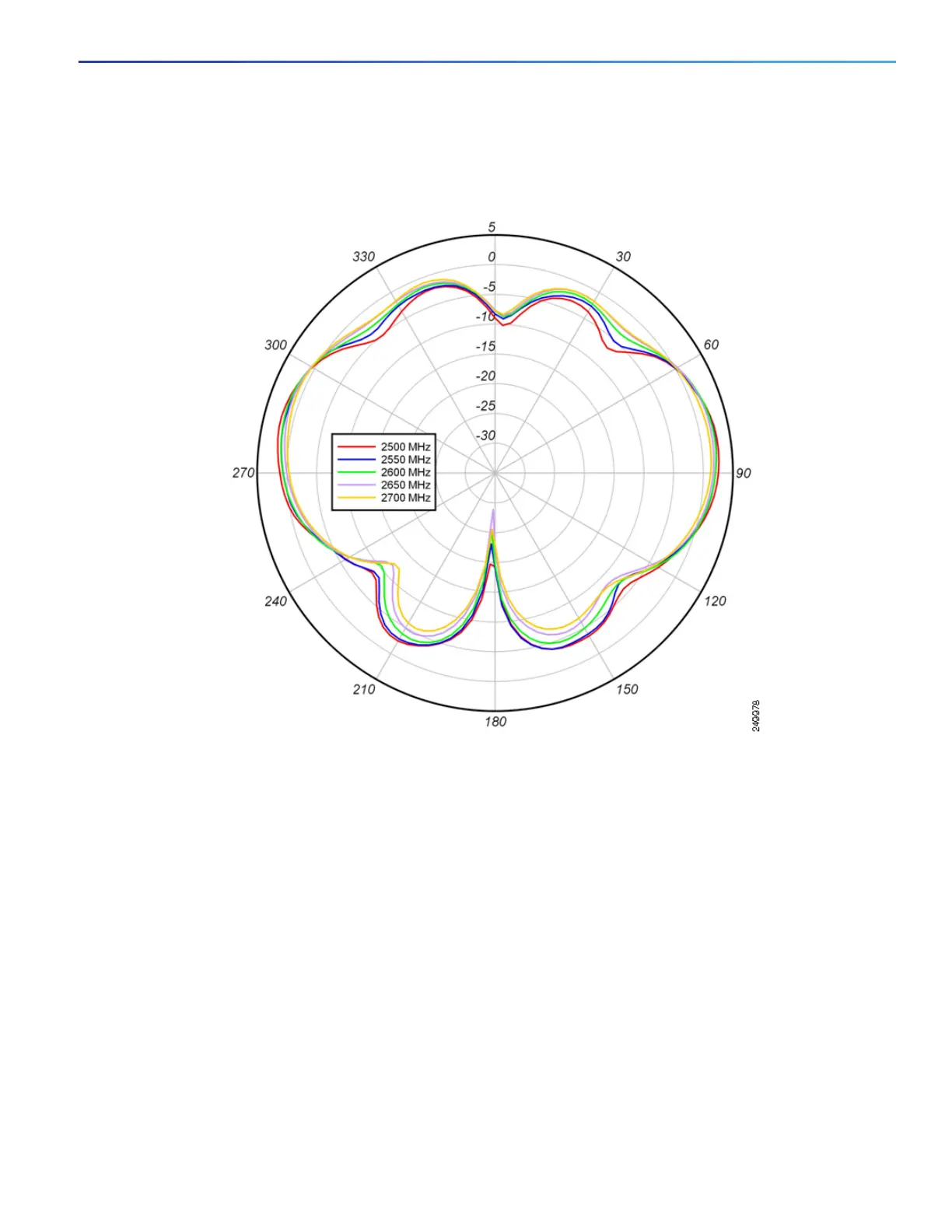

Figure 27 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 2600 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 27 Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 2600 MHz Band
System Requirements
The 4G-ANTM-OM-CM antenna requires a Cisco 3G EHWIC that uses a TNC-Male connector.
Installation Notes
NOTE: This antenna is designed to be mounted indoors on a ceiling. The antenna is mountable to ceiling tiles less than 1” thick
or to hard ceilings with the included installation accessories.
Follow these guidelines to ensure the best possible performance:
The antenna must be mounted to a ceiling to maximize its omnidirectional propagation characteristics. Mounting it on a wall may
noticeably decrease the antenna range and overall performance.
 Wherever possible, mount the EHWIC and antenna where the wireless devices would be within sight and avoid physical
obstructions. Barriers along the line of sight between antenna and EHWIC degrades the wireless radio signals.
