Cisco Indoor Swivel-mount Dipole Antenna
(ANT-4G-DP-IN-TNC)
This document provides the antenna specifications and mounting instructions for the Cisco Indoor Swivel-mount Dipole 3G/4G
Antenna supported on the Connected Grid Router 1120 and is designed to support Cellular/PCS/AWS/MDS,
WiMAX 2100/2300/2500/2600 and global GSM900/GSM1800/UMTS/LTE2600 bands.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:
 Technical Specifications
 Installation Requirements
 Safety Warnings
 Antenna Installation
 Obtaining Documentation and Submitting a Service Request

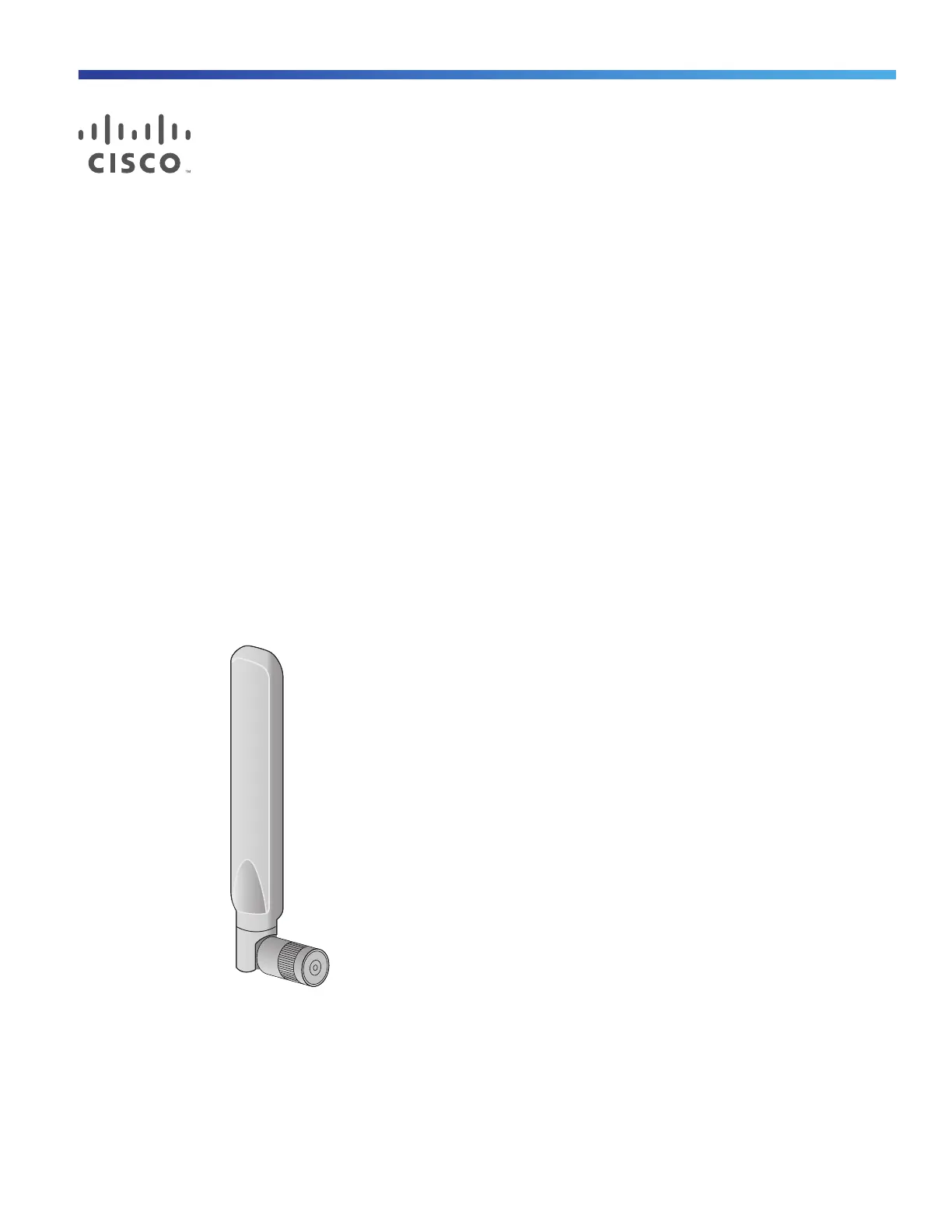

Figure 1 Swivel-mount Indoor Dipole Antenna
Technical Specifications
 Low-profile blade style sheath
 Applicable for both 3G and 4G solutions
