Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna

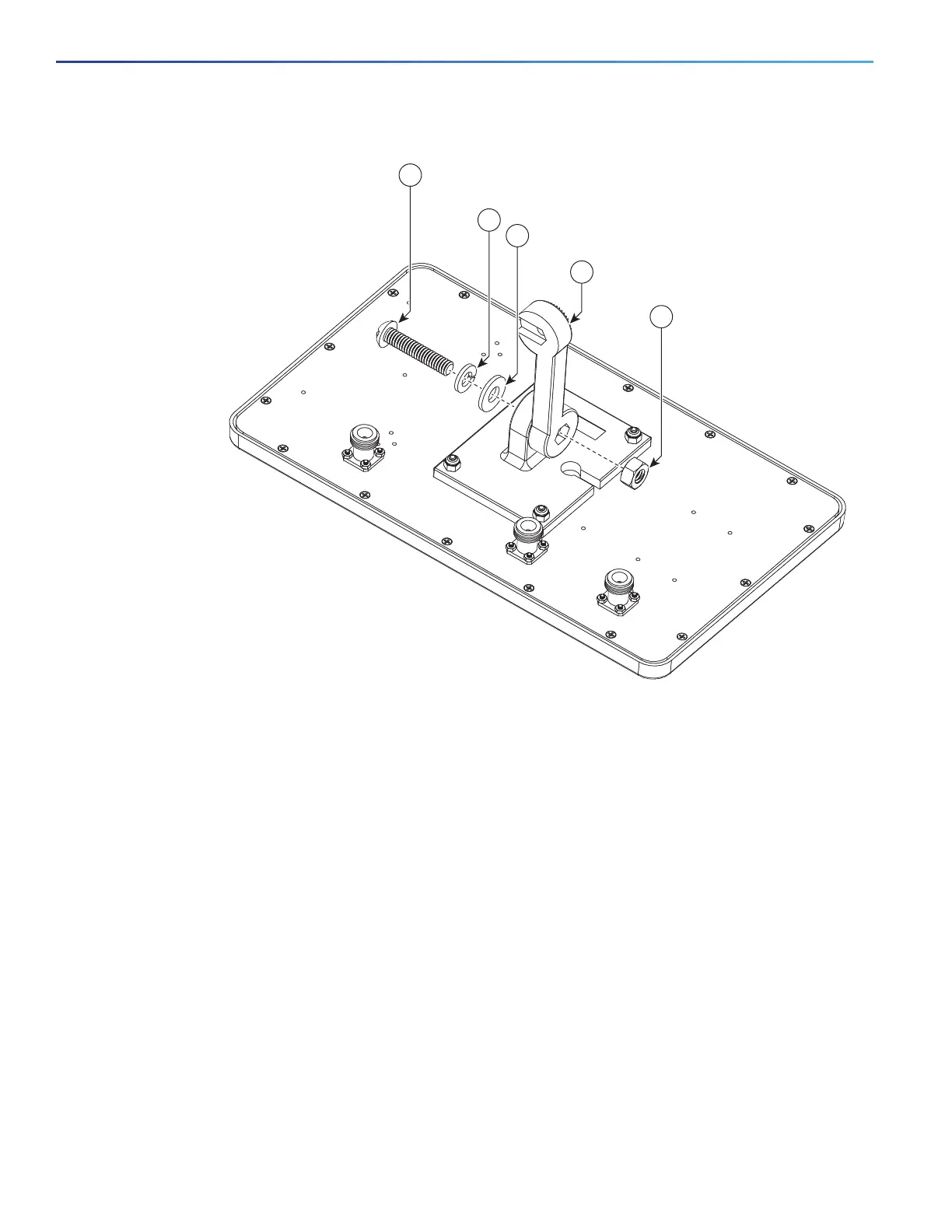

Figure 2 Attach elevation adjustable bracket
4. Attach azimuth adjustable bracket to pipe routing band clamps as shown. Tighten the pipe clamps to a torque of
35–45 in lbf (4.0–5.1 Nm).
1 Elevation adjustable bolt 4 Elevation adjustable bracket
2 Lock washer 5 Hex nut
3 1/4-in. flat washer
4
5
1
2
3
334673
