Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)

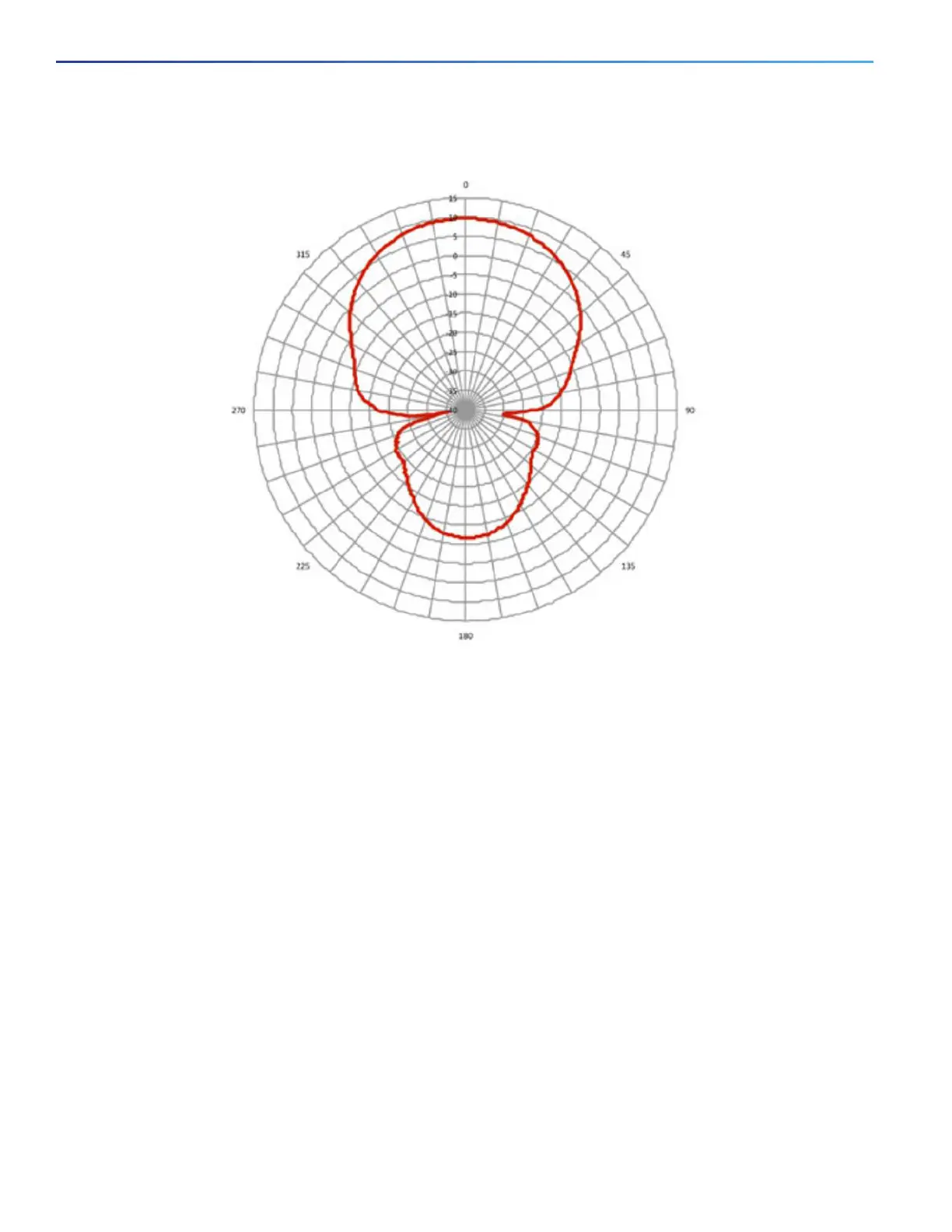

Figure 7 910 MHz Antenna Radiation Pattern — Vertical Plane
