Cisco ASR 9000 Series Configuration Guidelines

NLRI Format: Route-type 2:

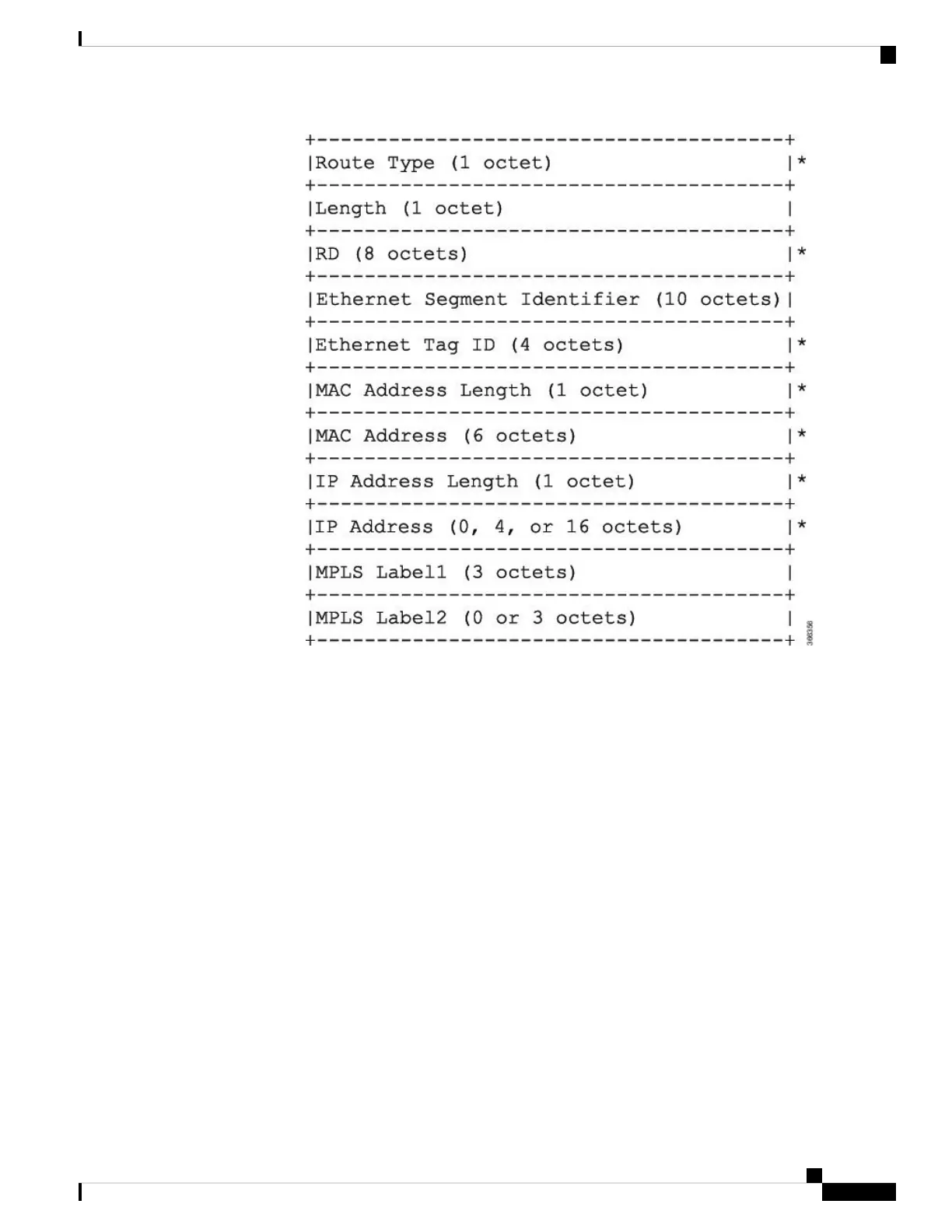

[Type][Len][RD][ESI][ETag][MAC Addr Len][MAC Addr][IP Addr Len][IP Addr][MPLS Label1][MPLS
Label2]
Net attributes: [Type][RD][ETag][MAC Addr Len][MAC Addr][IP Addr Len][IP Addr]
Path attributes: [ESI], [MPLS Label1], [MPLS Label2]
Example
route-policy evpn-policy
if rd in (1.1.1.2:0) [and/or evpn-route-type is 2] [and/or esi in
(0000.0000.0000.0000.0000)] [and/or etag is 0] [and/or macaddress in (0013.aabb.ccdd)]
[and/or destination in (1.2.3.4/32)] then
set ..
endif
end-policy
Route Type 3: Inclusive Multicast Ethernet Tag Route
This route establishes the connection for broadcast, unknown unicast, and multicast (BUM) traffic from a
source PE to a remote PE. This route is advertised on per VLAN and per ESI basis.
An Inclusive Multicast Ethernet Tag route type specific EVPN NLRI consists of the following fields:
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
569
EVPN Features
EVPN Route Types
