Blocking zone setup for dual antenna setup
It is recommended to define the following 3 blocking zones in each SAILOR 900 VSAT High
Power system:
1. Actual blocking zones on the vessel (No TX)
2. Switching blocking zones (TX allowed)
3. Personnel safety zones (No TX)
For instructions how to set up blocking zones see To set up blocking zones (RX and TX) on
page 6-28.

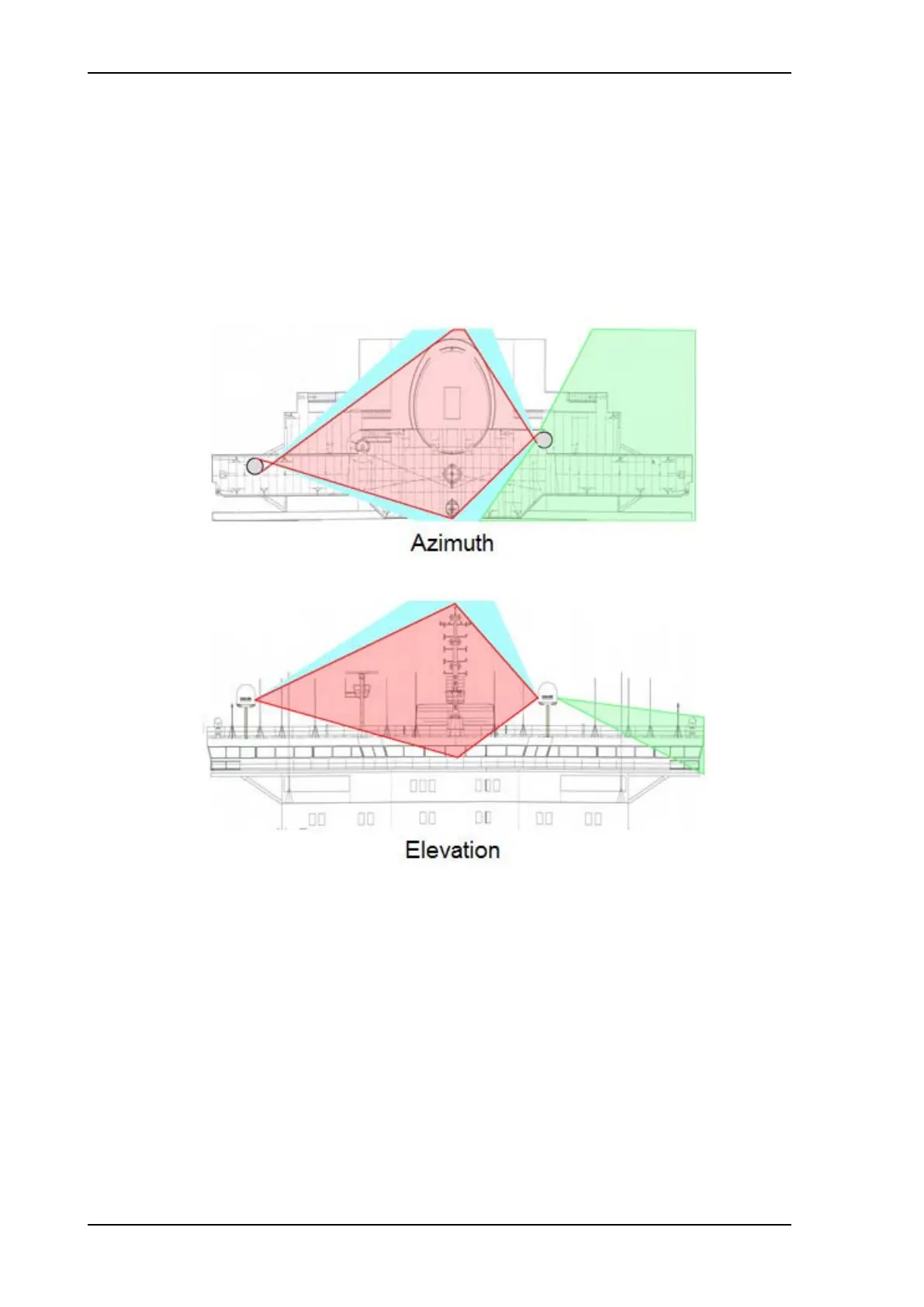

Figure 6-32: Dual-antenna mode, blocking zones — azimuth and elevation
1
2
3
1
3
2
