Installation of the ADU

98-150471-A02 Chapter 3: Installation 3-17

Installation

3.3 Installation of the ADU

The ADU is shipped fully assembled. You have to install it on the mast and attach the ADU

cable.

Before installing the ADU read the following guidelines.

WARNING! Use a strong webbed sling with a belt to lift

the ADU without damaging the radome. Make sure that

the sling can carry the ADU’s weight 126,5 kg.

WARNING! The ADU may be subject to swaying

motions in windy conditions. Always use tag lines to

stabilise the ADU during hoisting.

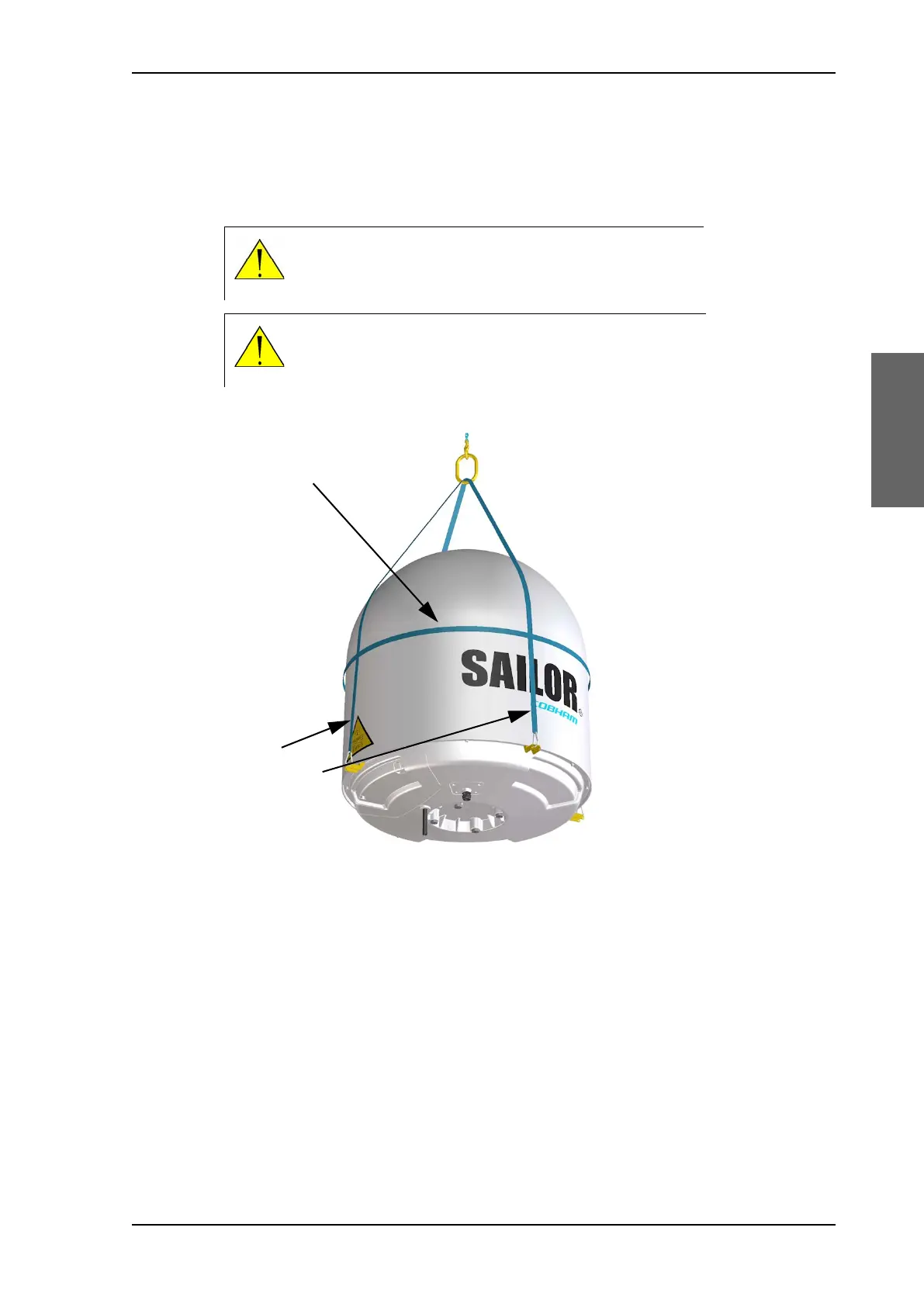

Figure 3-14: Use of strong sling with a belt and tag lines for safe hoisting

Webbed sling with belt

Tag lines
