Inmarsat G5 modem

98-150471-A02 Appendix C: VMU settings C-31

VMU settings

C.8.5 Configuration example (Inmarsat G5)

Examples of modem profile and satellite configuration from the ACU web MMI are shown

in the figures below.

C.8.6 LAN setup requirements for G5 system

Make sure that the following requirements are taken care of when configuring the LAN:

•LAN1: Static IP

• LAN1: DHCP Server disabled

• DNS setup: Static IP

•GW setup: Static IP

• LAN3: IP <> LAN1

• LAN4: IP <> LAN1

See also To configure the LAN network on page 6-30.

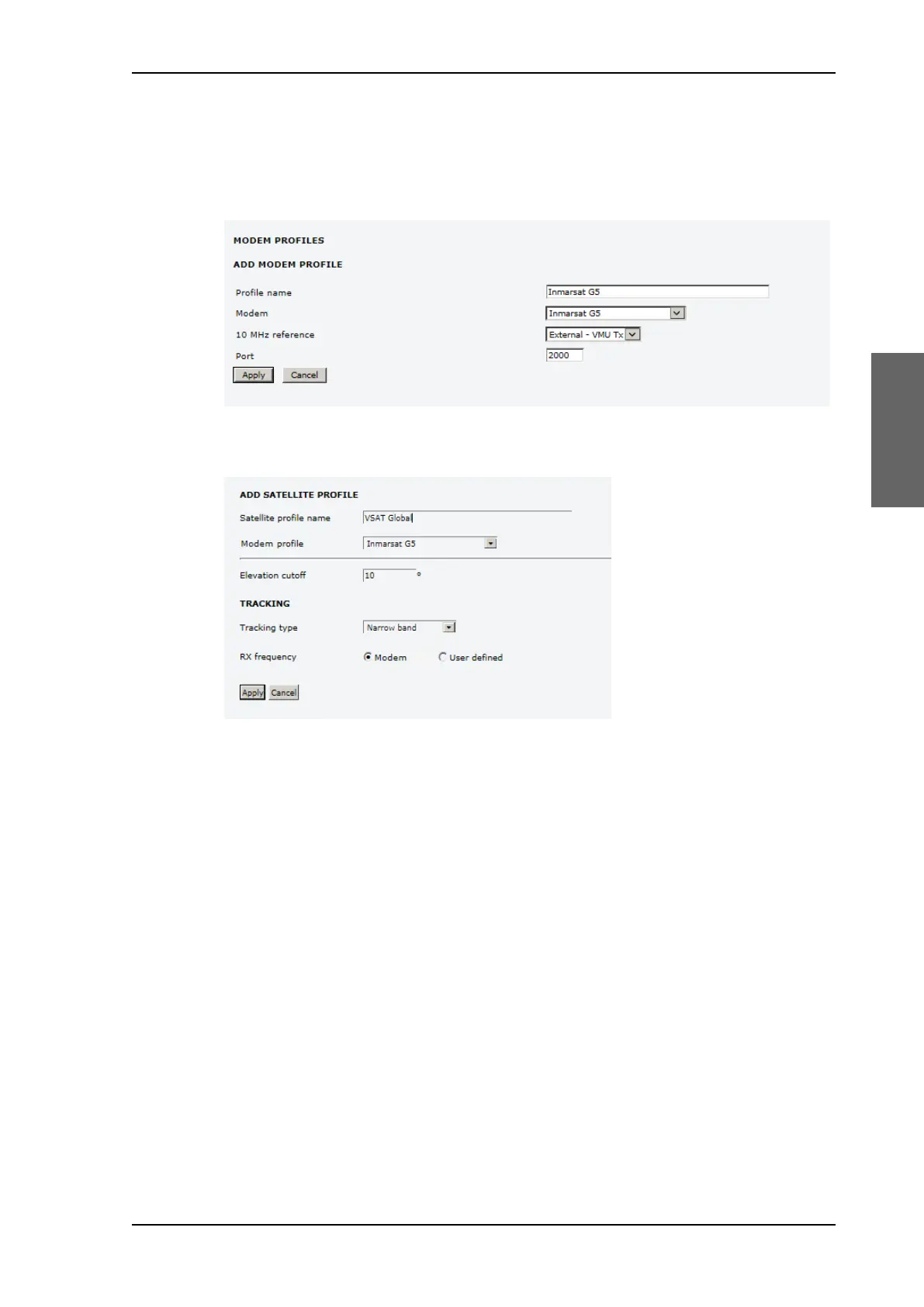

Figure C-24: VSAT modem profile, Inmarsat G5 (example)

Figure C-25: Satellite profile, Inmarsat G5 (example)

SAILOR900HP.book Page 31 Monday, July 18, 2016 12:44 PM
