SAILOR 900 VSAT High Power system
2-4 Chapter 2: Introduction 98-150471-A02
10.Polarisation Motor Module (PMM).
11.Polarisation motor.
12.Polarisation encoder.
13.Block Up Converter (BUC).
14.Low Noise Block downconverter (x2),
15.Ortho Mode Transducer (OMT) (not visible on photo).
16.Inertial Sensor Module (ISM).
17.Elevation locking pin to lock the antenna dish in a fixed position.
18.DC-Motor Driver Module for Azimuth (DDM).
19.Azimuth motor.
20.Azimuth encoder.
21.Rotary joint.
22.Feed horn.

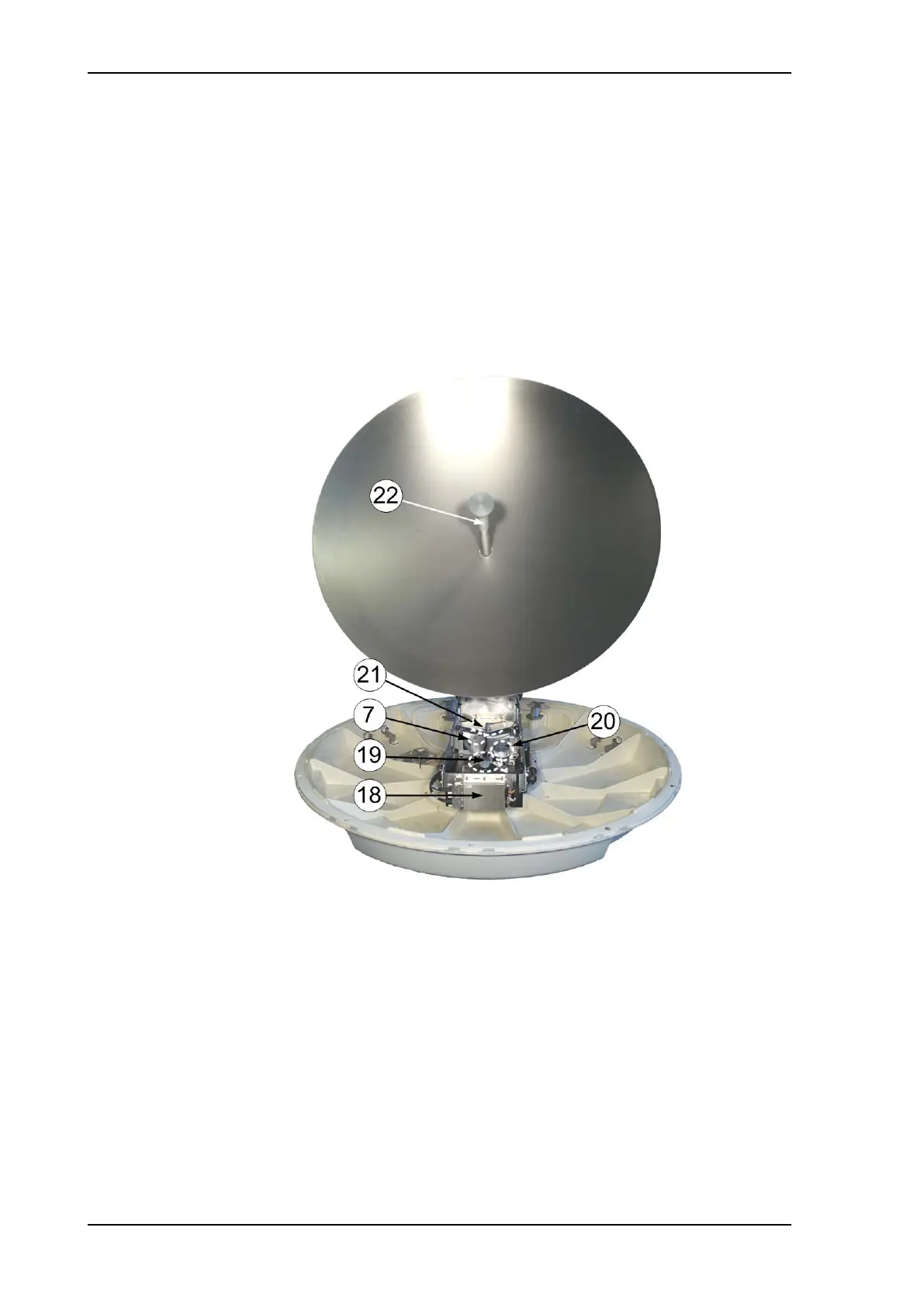

Figure 2-4: Above Deck Unit modules 2/2
