COBHAM SAILOR 900 - Figure 3-8: ADU Mast Flange, Distance to the Welded Seam; Figure 3-9: SAILOR 900: ADU, Bottom View

Site preparation
98-150471-A02 Chapter 3: Installation 3-9
Installation

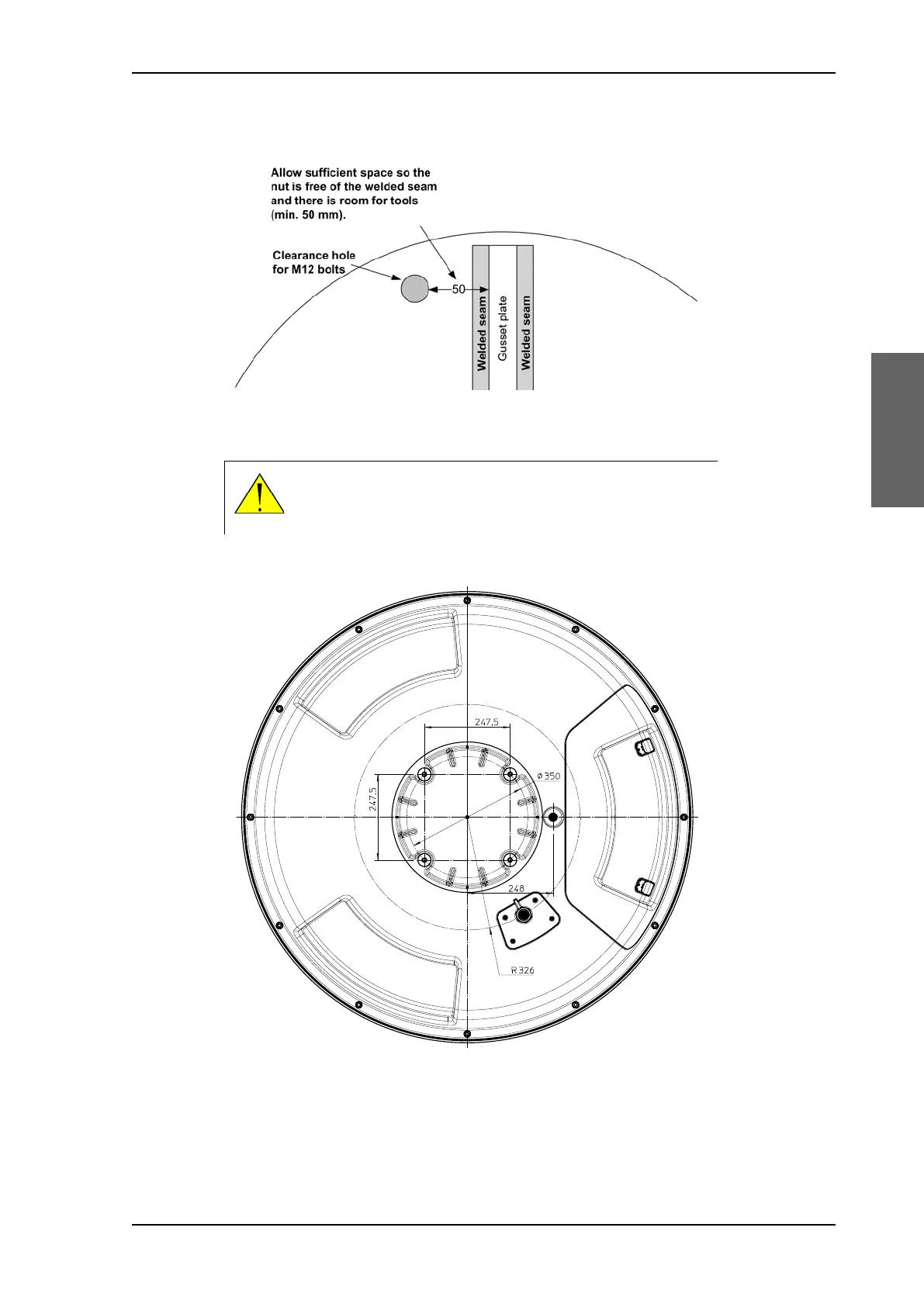

Figure 3-8: ADU mast flange, distance to the welded seam
CAUTION! Avoid sharp edges where the flange is in
direct contact with the radome. Round all edges as much as
possible to avoid damaging the surface of the radome.
Figure 3-9: SAILOR 900: ADU, bottom view
