Removal and replacement of ADU modules
8-10 Chapter 8: Service 98-150471-A02
8.5 Removal and replacement of ADU modules
All replacement of modules must be carried out by a Cobham SATCOM service partner. The
figure below shows the modules and their position. Some modules are equipped with LEDs
for status information and troubleshooting.
For instructions on how to open and remove the service hatch see To open and remove
the service hatch on page 3-21.
1. GNSS module (GPS, GLONASS, BEIDOU).
2. VSAT Interface Module (VIM).
3. Pedestal Control Module (PCM).
4. Service switch.

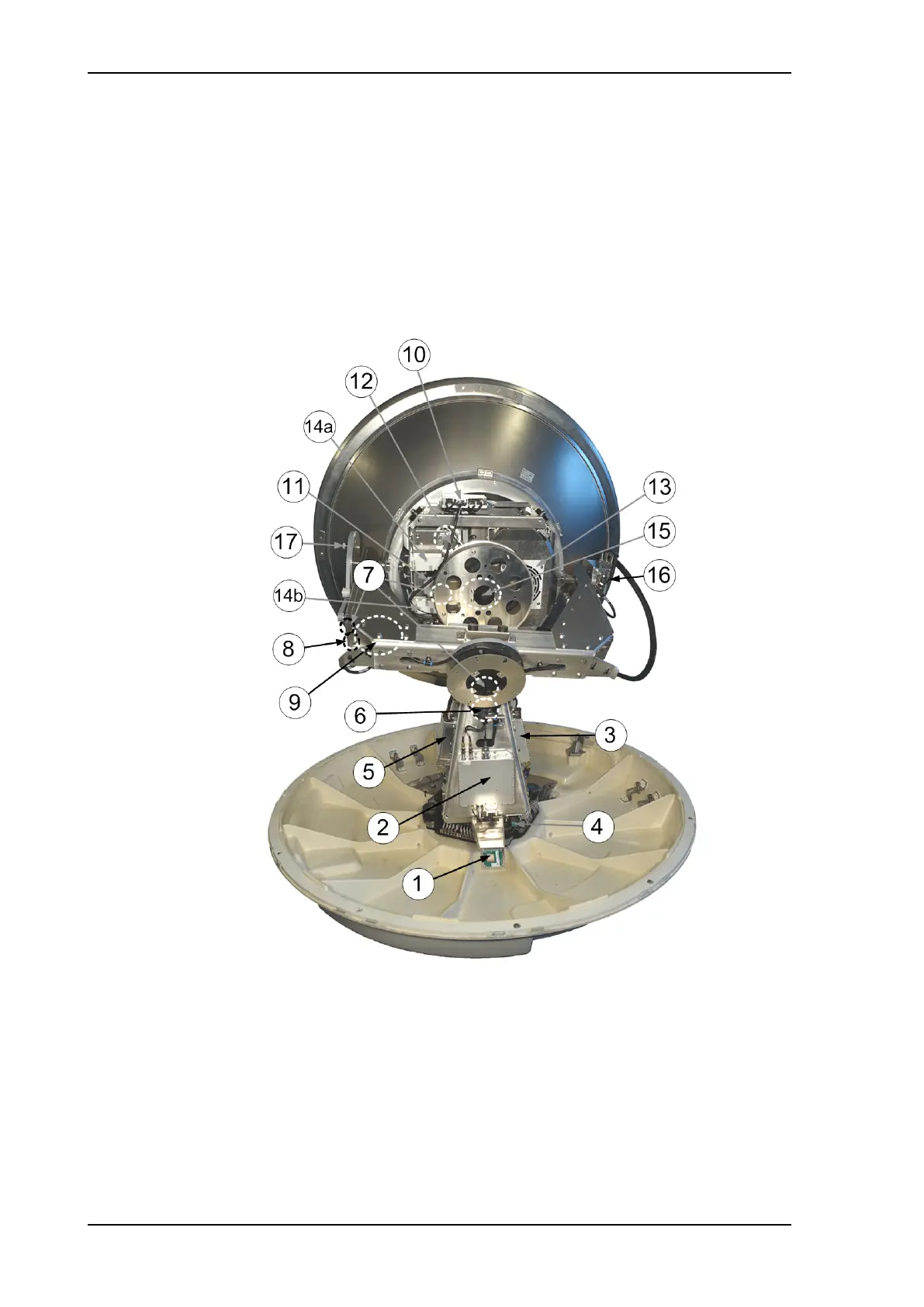

Figure 8-6: ADU modules and service switch
