Configuration with the web interface
98-150471-A02 Chapter 6: Configuration 6-41
Line up and commissioning for dual antenna setup
The SAILOR 900 VSAT High Power antenna systems must be lined up and commissioned
one by one. The line-up procedure is done for each antenna as it would have been done for
a single antenna system. In order to be able to do the line-up for each antenna you must
force the dual system to use one or the other antenna at a time. Do as follows:
1. Enter the web interface of the Master ACU, go to the page SERVICE > Dual antenna
mode.
2. Set the mode to either Master active or Slave active to force the system to use that
antenna until it is changed again or the Master system is rebooted. After reboot the dual
antenna mode will be set to Auto (default).
6.3.8 Upload of new software
For uploading new software to the SAILOR 900 VSAT High Power see Software update on
page 8-5.
6.3.9 Administration
In this section of the web interface you can configure the following administrative settings:
• To access the administration settings (user name, password)
• To set up user permissions
• To import and export a system configuration
• To reset to factory default
To access the administration settings (user name, password)
The ADMINISTRATION settings require an administration user name and password. To log
on as administrator, do as follows:
1. Select ADMINISTRATION from the left navigation pane.
2. Enter the Administration user name and password.

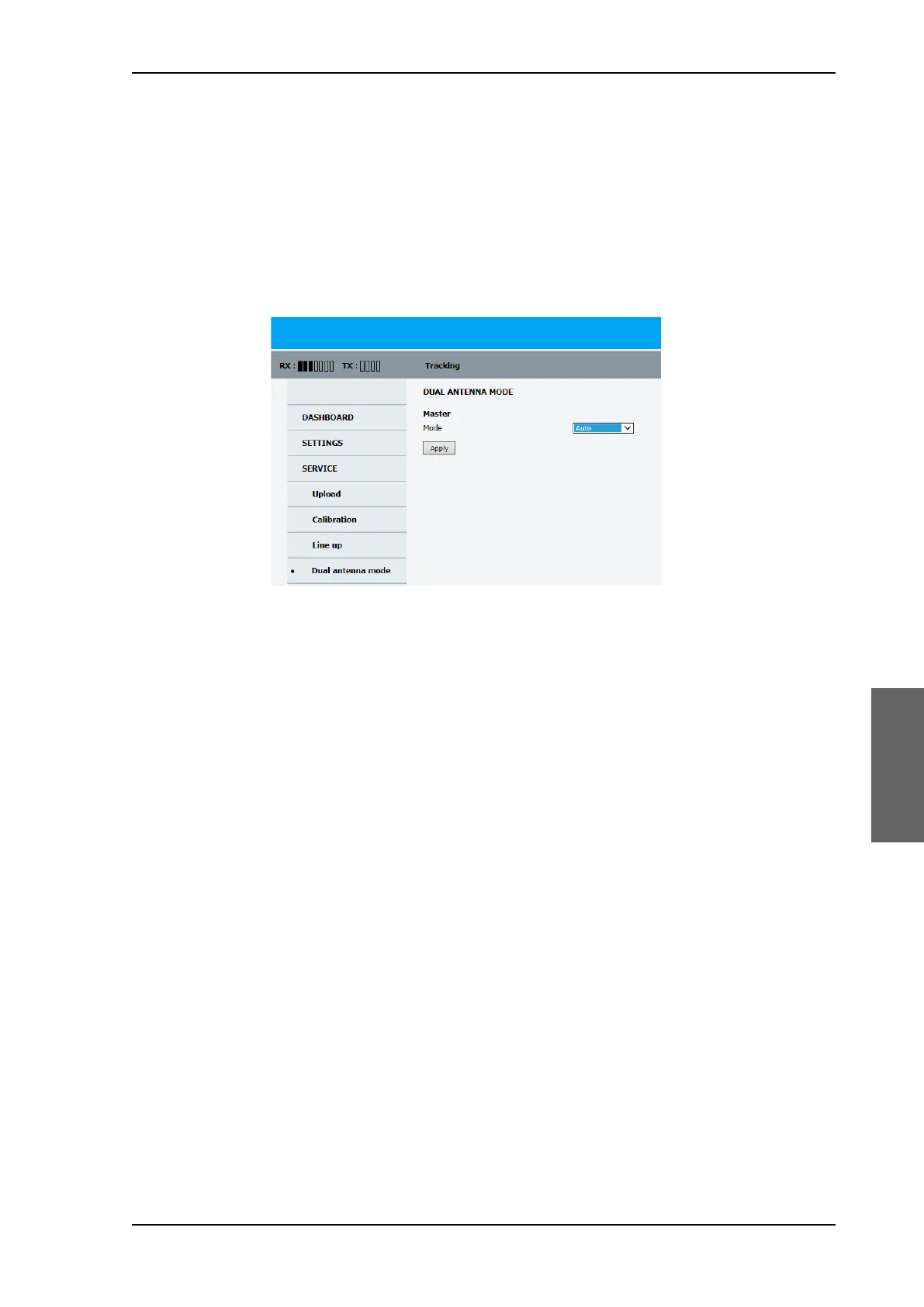

Figure 6-33: Dual-antenna mode, line up
SAILOR900HP.book Page 41 Monday, July 18, 2016 12:44 PM
