98-150471-A02 E-1

Appendix E

DVB-S satellites

DVB-S satellites E

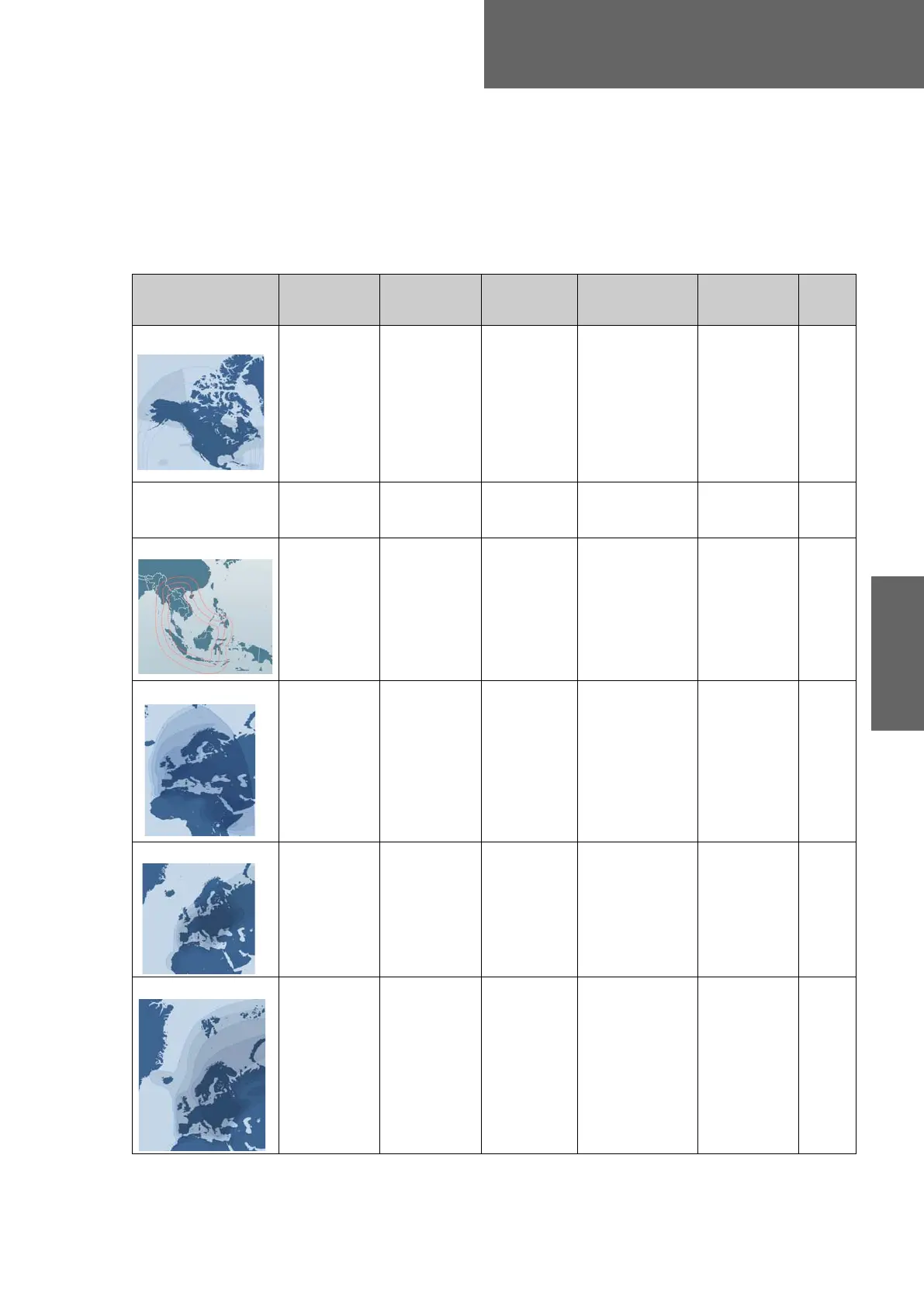

This appendix contains examples of DVB-S satellite data for azimuth calibration.

VSAT coverage

Satellite

name

Satellite

position

polarisation

frequency

Symbol

rate

NID

Americas EchoStar9/

Galaxy23

121°W Vertical 12.016 GHz 20.000 MS/s 0

Europe &

Americas

Hispasat 30°W Vertical 12.052 GHz 27.500 MS/s 51

East Asia

NSS6

Transponder

(South East)

Backup

(North East)

95°E

Horizontal

11.635 GHz

12.729 GHz

27.500 MS/s

26.400 MS/s

8192

100

Europe & ME

SES 4 22°W Horizontal 12.673 GHz 20.25 MS/s 65535

Europe

THOR 6

BEAM K2

0.8°W Horizontal 11.747 GHz 28.000 MS/s 4369

Europe

THOR 5

BEAM T2

Backup

0.8°W

Vertical 12.418 GHz 28.000 MS/s 70

Table E-1: Examples of DVB-S satellites for azimuth calibration
