SAILOR 900 VSAT High Power system
98-150471-A02 Chapter 2: Introduction 2-3
Introduction
Modules in the SAILOR 900 VSAT High Power ADU
1. GNSS module (GPS, GLONASS, BEIDOU).
2. VSAT Interface Module (VIM).
3. Pedestal Control Module (PCM).
4. Service switch.
5. DC-Motor Driver Module for cross elevation (DDM).
6. Cross elevation motor and encoder.
7. Zero Reference Module (x4) (ZRM) (not visible on photo). (3 on this figure)
8. DC-Motor Driver Module for elevation (on the bottom) (DDM).
9. Elevation motor and encoder (not visible).

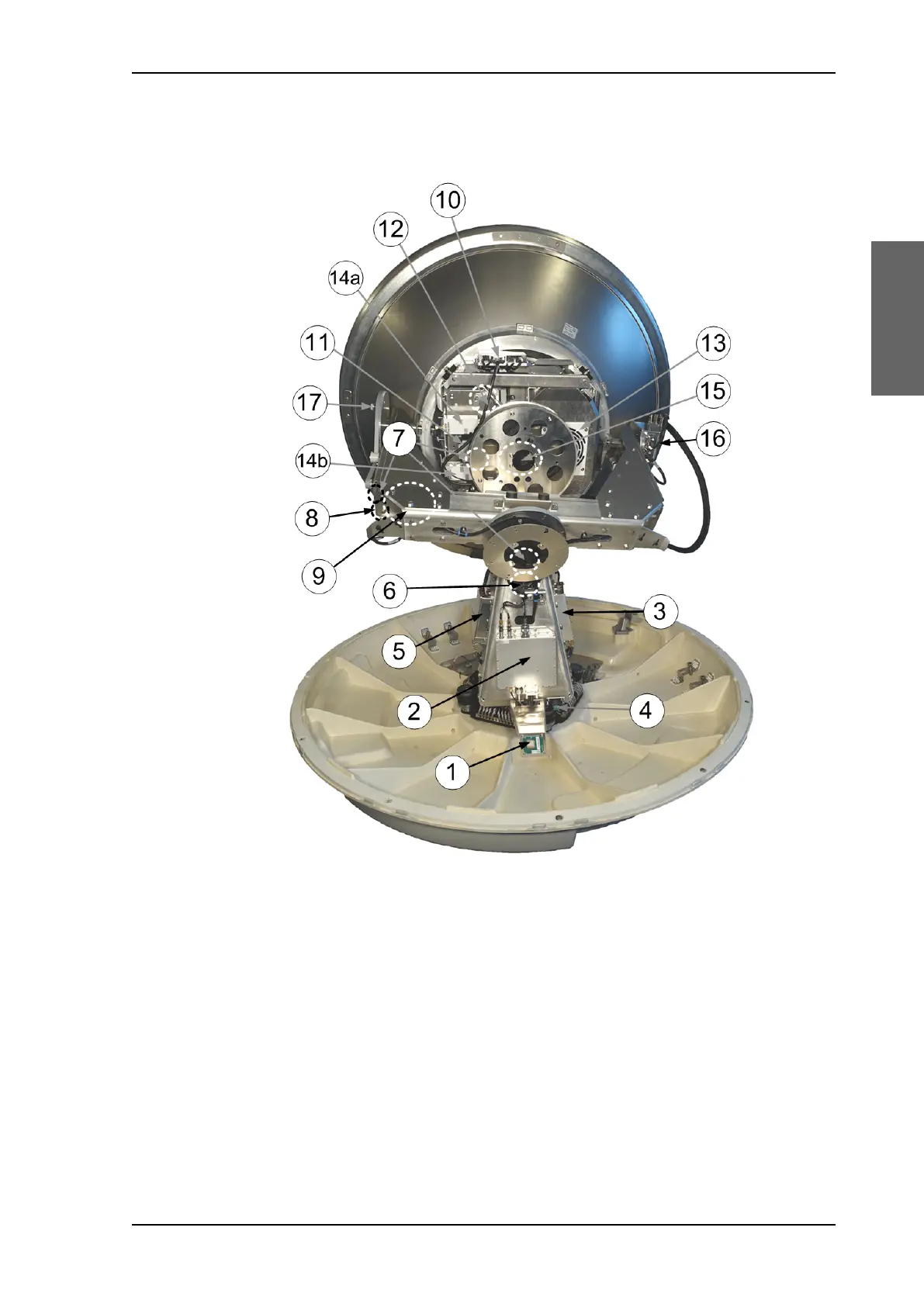

Figure 2-3: Above Deck Unit modules 1/2
