6.3.3 To set up blocking zones (RX and TX)
On this page you define blocking zones, i.e. NO TX and RX zones, enter azimuth values and
elevation angles for each blocking zone. You must select Active to enable a blocking zone.
To set up a blocking zone, do as follows:
1. Select SETTINGS > Blocking zones.
2. Select Active to enable the blocking zone.

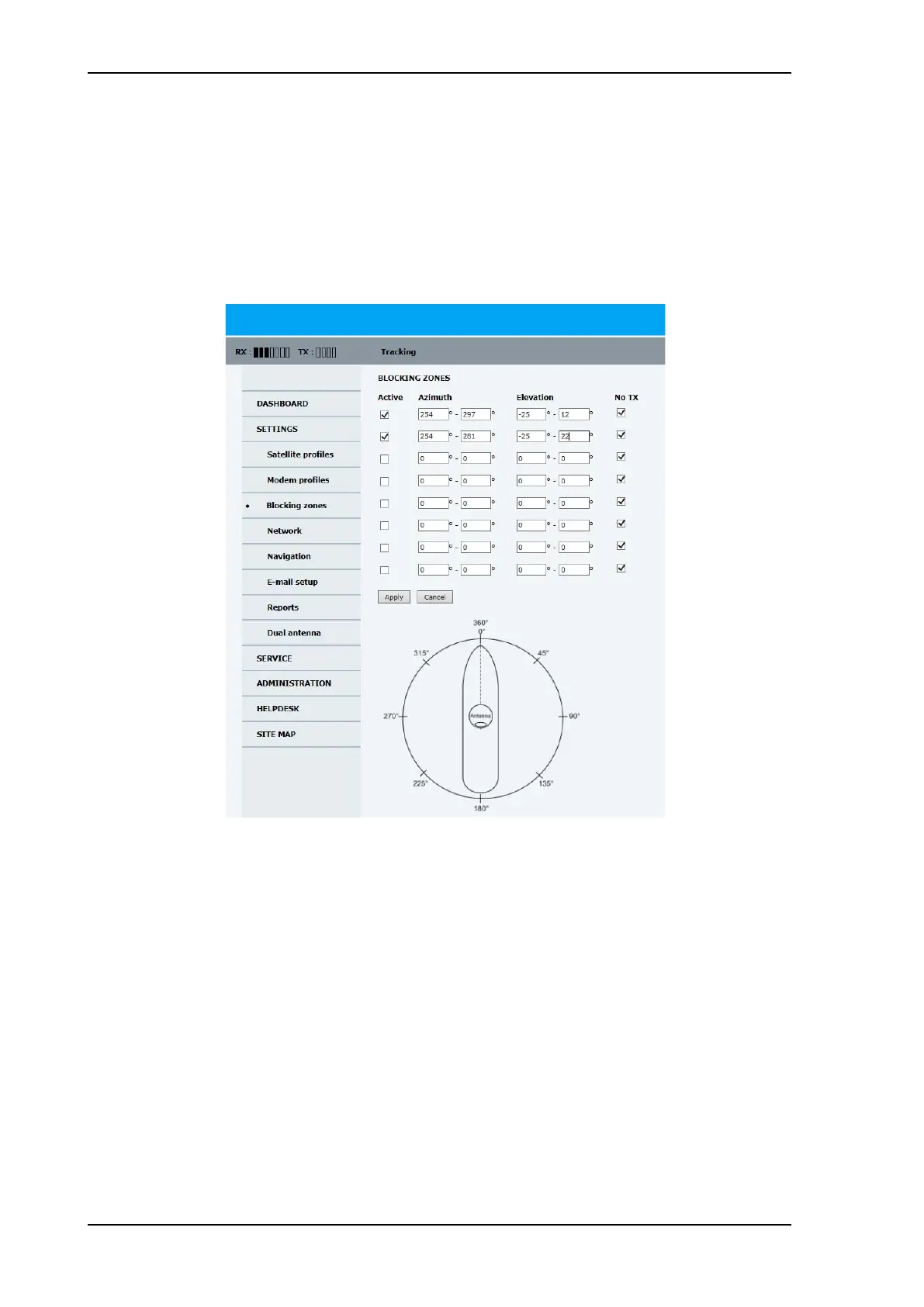

Figure 6-21: Web interface: SETTINGS, Blocking zones — azimuth and elevation
