COBHAM SAILOR 900 - Figure 8-7: above Deck Unit Modules (Continued)

Removal and replacement of ADU modules
8-12 Chapter 8: Service 98-150471-A02
18.DC-Motor Driver Module for Azimuth (DDM).
19.Azimuth motor.
20.Azimuth encoder.
21.Rotary joint.
22.Feed horn.
Before contacting your service partner check the LEDs on all modules (VIM, DDMs, PCM,
PMM and ISM). See LEDs of the ADU modules on page 8-7 and LEDs in the ACU on
page 8-8.

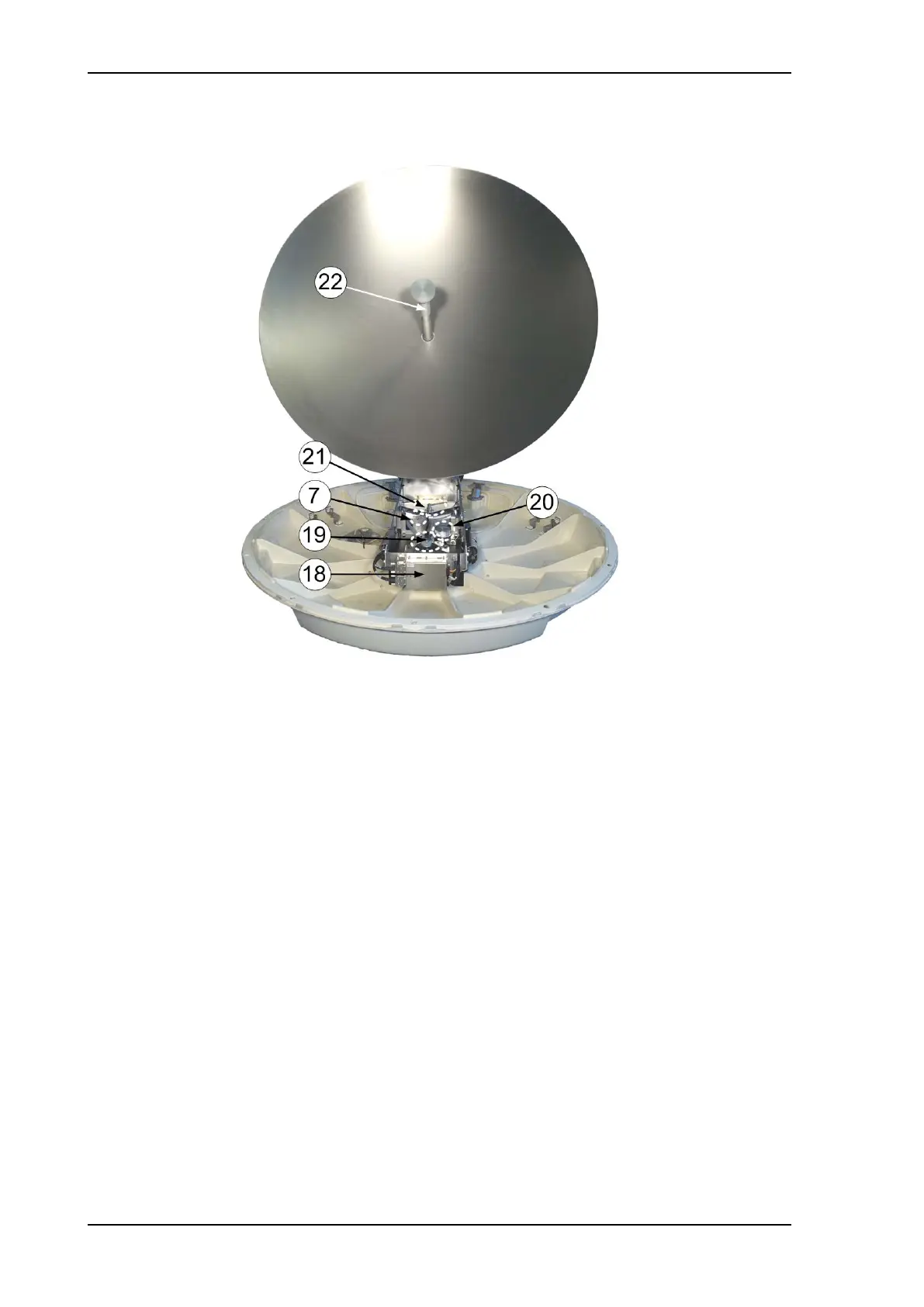

Figure 8-7: Above Deck Unit modules (continued)
