OpenAMIP setup for iDirect iNFINITI & Evolution
C-4 Appendix C: VMU settings 98-150471-A02
The pin allocation for the RS-232 Console cable is shown below. See also Appendix B on
page C-1 for a cable drawing.

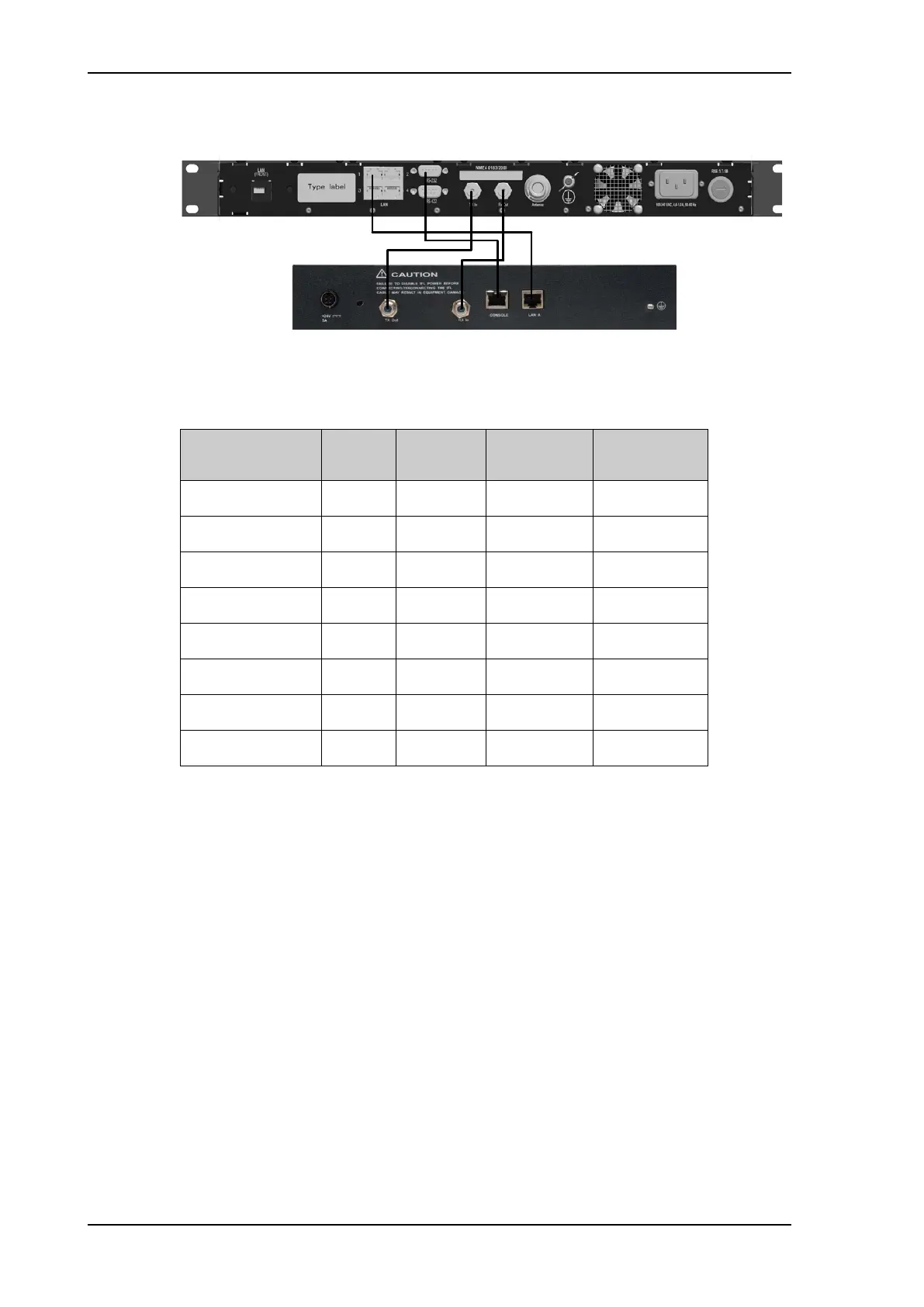

Figure C-2: Connecting iDirect Evolution X5 to the ACU (OpenAMIP)
Console port (DTE) RJ-45 pin Color code
RJ-45 to DB-9
adapter pin
Console device
RTS 1 Blue 8 CTS
DTR 2 Orange 6 DSR
TxD 3 Black 2 RxD
GND 4 Red NC GND
GND 5 Green 5 GND
RxD 6 Yellow 3 TxD
DSC 7 Brown 4 DTR
Rx-RF Power 8 White/Grey 9 --
Table C-1: RS-232 Console cable for iDirect VSAT modem
