1
2
3
5
6
9
5
7
4
8
A. Left-Hand B-Pillar B. Left-Hand Door C. Right-Hand B-Pillar
1. Primary Noise Emission Control
Label (Mexico or United States)
2. Customer Assistance Label
(United States or Mexico)
3. FMVSS Certification Label or
Spanish Weights and
Measurement Label
4. Canada Certification Label or
FMVSS Certification Label
5. Entry/Exit Warning Decal
6. Vehicle Emission Control
Information Label
7. Secondary Noise Emission
Control Label (English)
8. Mexico Certification Label
9. Component GWR Label (Spanish
or English)

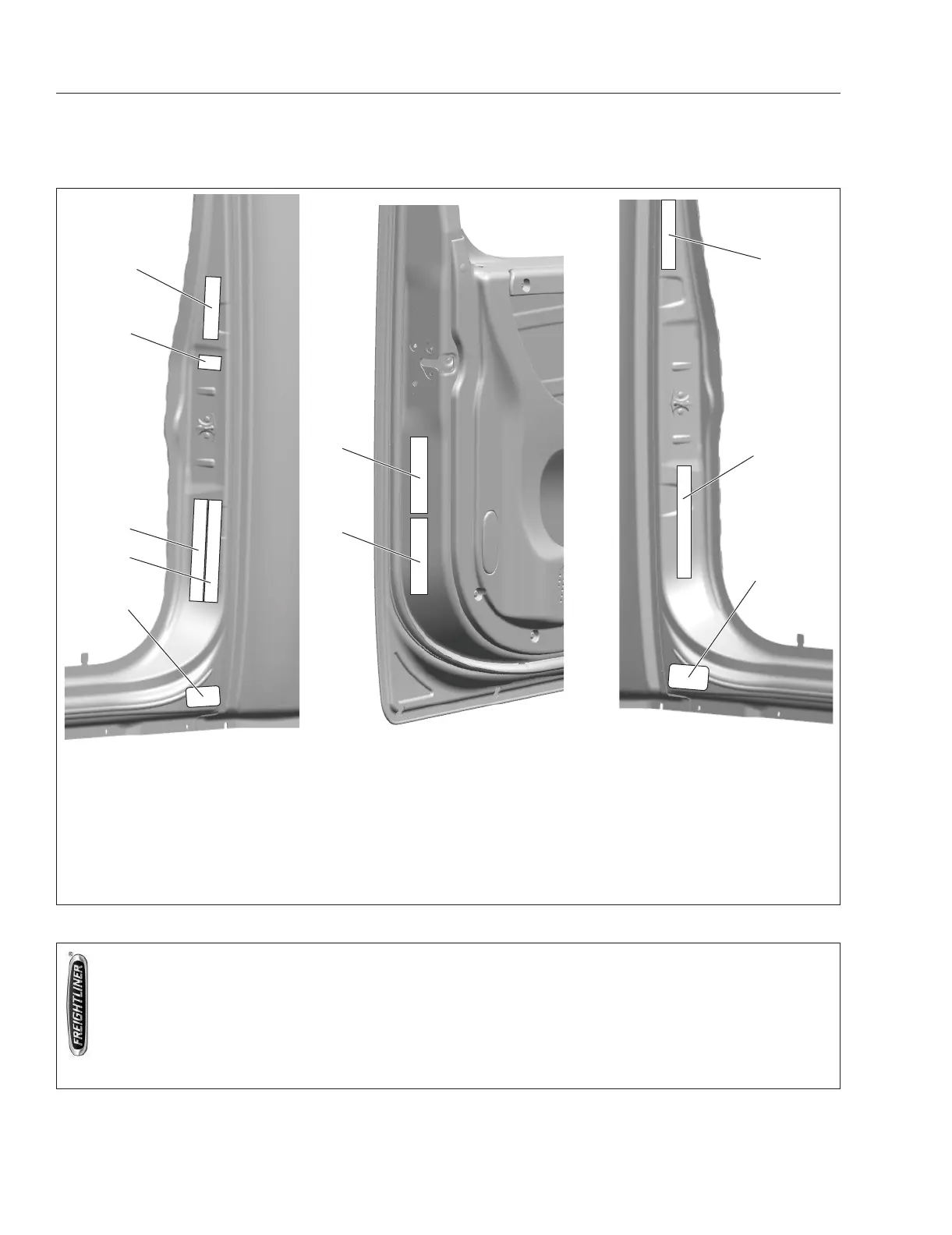

Fig. 1.6, Label Locations
f08020006/21/2016
MAXIMUM GWR BY
COMPONENT (KG)LBS
COMPONENT
AXLES:
SUSPENSION:
TIRES:
RIMS:
HUBS/SPOKES:
BRAKES:
STEERING:
FRONT AXLE 2ND INT AXLE
3RD INT AXLE 4TH INT AXLE
5TH INT AXLE
6TH INT AXLE REAR AXLE
COMPONENT GVWR
( 5443) 12000 ( 9072) 20000
( 9072) 20000
CHASSIS:
ENG/TRANS:
5TH WHEEL:
PARK BRAKE:
AXLE:
VIN: 1FUJGBDV4GLZZ9999
1ST INT AXLE
( 5443) 12000
( 5601) 12350
( 6713) 14800
( 6032) 13300
( 6032) 13300
( 6032) 13300
( 9072) 20000
( 9253) 20400
(11612) 25600
(10432) 23000
( 9072) 20000
( 9072) 20000
( 9253) 20400
(11612) 25600
(10432) 23000
( 9072) 20000
Fig. 1.7, Component GWR Label
Vehicle Identification
1.3
