Daimler Freightliner Cascadia 2021 - Cab Power Distribution and Component Location Overview

f547299a08/12/2020
2
3
4
5
6
1
7
8
9
10
11
1. Vehicle Power Distribution Module (VPDM)
2. Electronics Bay
3. VPDM Ground
4. Battery Cable Access (BCA) Front Wall Pass-Through
5. VPDM Power
6. sSAM Ground
7. sSAM Power
8. Single Signal Detect and Actuation Module (sSAM)
9. Front Wall Cab Ground Pass-Through Stud
10. Front Wall Interior Ground Stud
11. Pass-Through Bulkhead Connector

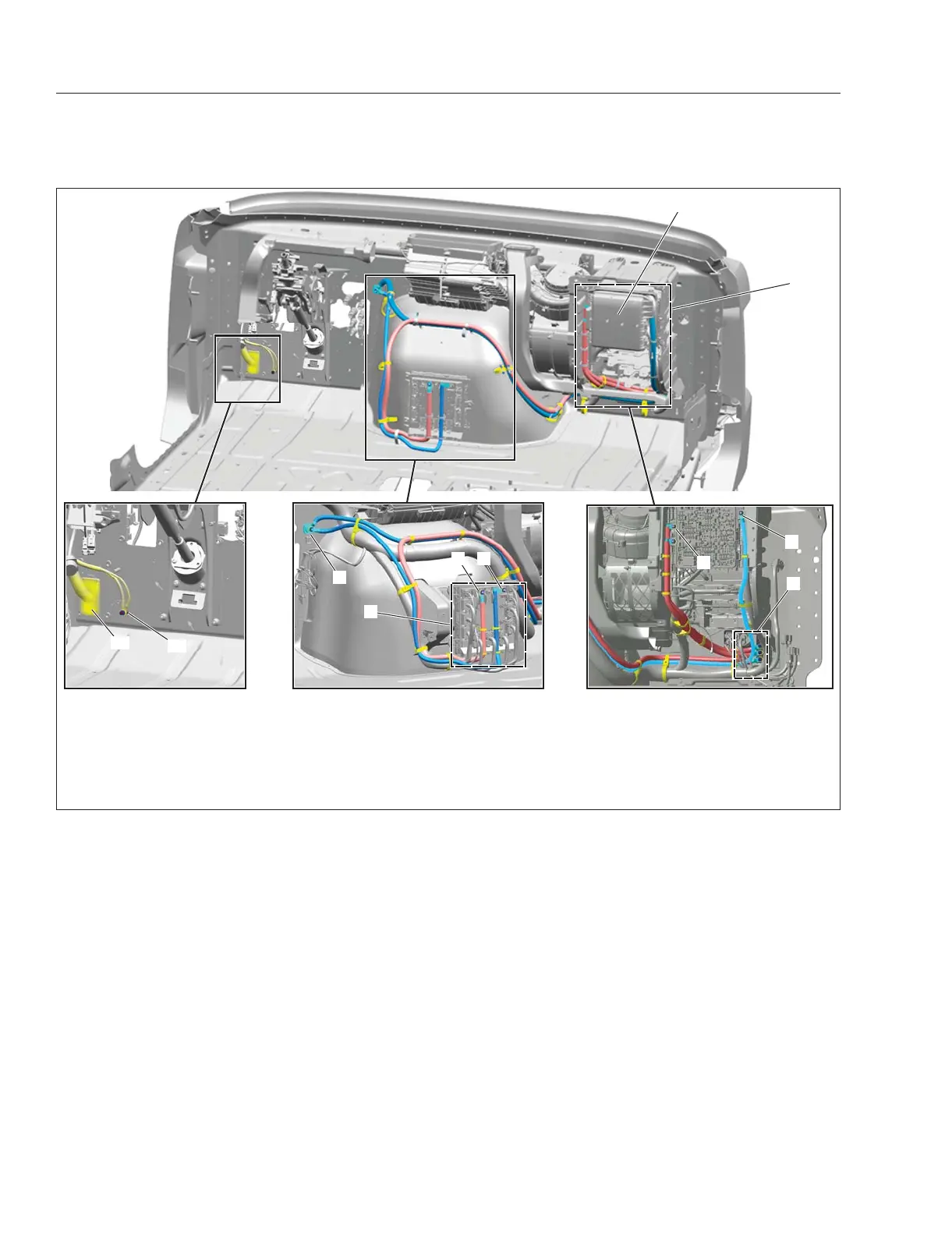

Fig. 11.5, Cab Power Distribution and Component Location Overview
Electrical System
11.3
