Sears Atlas Seat
See Fig. 9.4 for seat adjustment controls.
1.
Isolator: Position the handle to the left to allow
isolation movement. Position the handle to the
right to lock-out isolation movement.
2.
Fore/Aft Seat Slide: To adjust the fore-and-aft
position of the entire seat, squeeze the fore/aft
slide lock against the adjustment bail, and lift the
bail up. See
Fig. 9.5. Slide the seat forward or
backward to the desired position. Release the
bail and fore/aft slide lock, to its original position,
to lock the seat in place.
3.
Bottom Cushion Tilt: Lift the handle upward and
move the seat cushion to the desired position.
Three positions are available.
4.
Seat Extension: Rotate the handle upward to dis-
engage, then move the seat cushion to the de-
sired position and release the lever. Three posi-
tions are available.
5.
Backrest Tilt: Pull upward on the recliner handle,
move the backrest to the desired position and
release the handle.
6.
Lumbar Support: Rear rocker switch: Push for-
ward to inflate the lower lumbar bag; push rear-
ward to deflate the bag. Center rocker switch:
Push forward to inflate the upper lumbar bag;
push rearward to deflate the bag.
7.
Suspension Inflation/Deflation: Push forward on
the gray rocker switch to inflate and raise the
suspension; push rearward to deflate and lower
the suspension.
Armrest Angle: Rotate the control knob, located on
the underside of the armrest, to set the desired angle
of the armrest.
Seat Belts and Tether Belts
Seat belt assemblies are designed to secure persons
in the vehicle to help reduce the chance of injury, or
the amount of injury, resulting from accidents or sud-
den stops. For this reason, Daimler Trucks North
05/08/2012 f910683
1
2
3
45
1. Ventilation ON
2. Heat/Ventilation OFF
3. Heat ON
4. Heat/Ventilation ON/OFF Switch
5. Heat/Ventilation Adjustment Switch

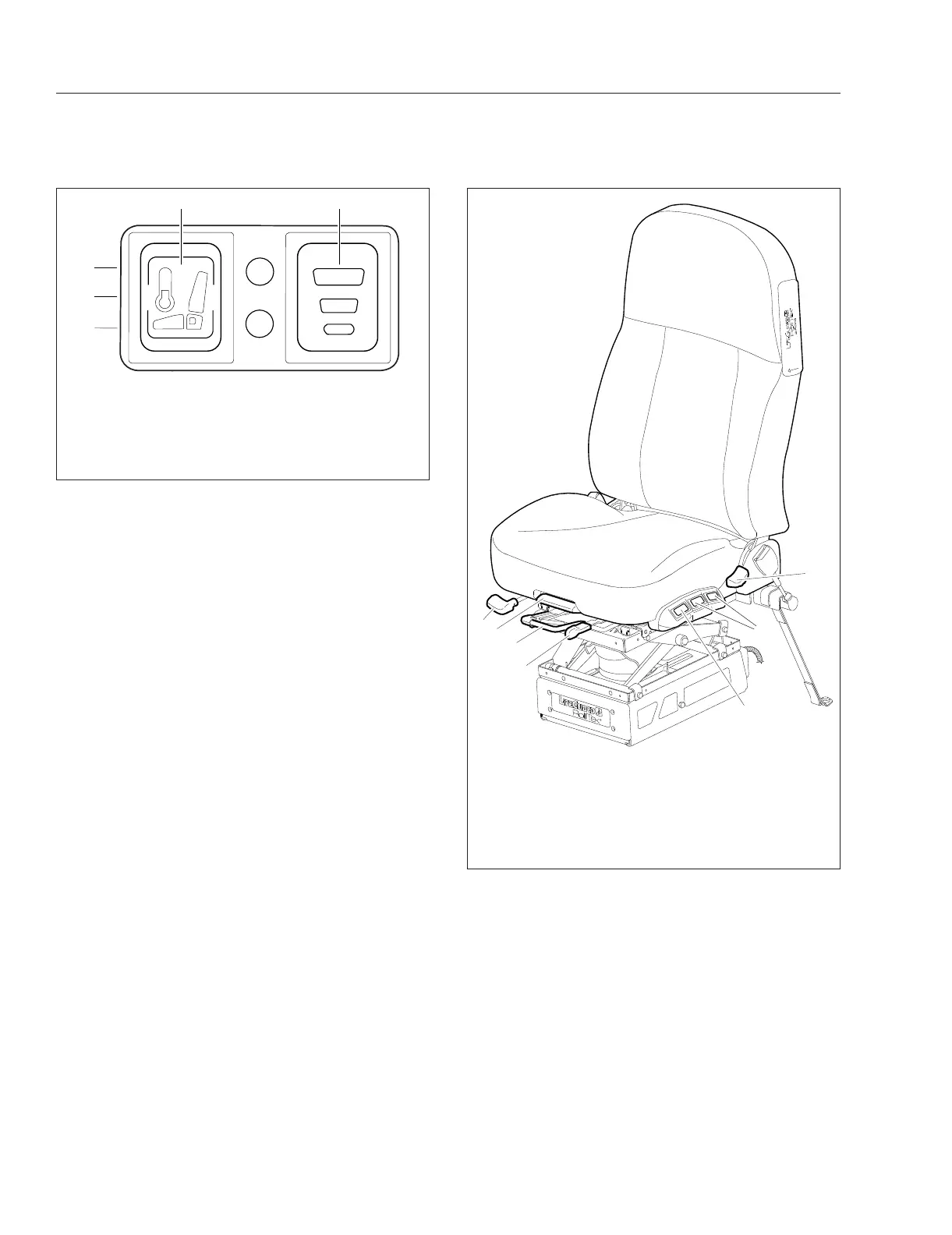

Fig. 9.3, High Back Seat Heat/Ventilation Controls
10/15/2007 f910597
1
2
3
4
5
6
7
1. Isolator Lever
2. Fore/Aft Seat Slide
Lever
3. Bottom Cushion Tilt
Handle
4. Seat Extension Lever
5. Backrest Tilt Lever
6. Lumbar Support
Switches
7. Suspension Inflation/
Deflation Switch
Fig. 9.4, Sears Atlas Seat
Seats and Restraints
9.3
