Inverter/Charger
An optional 1500- or 1800-watt inverter/charger is
available on 60" and 72" sleepers. An inverter co-
verts the vehicle’s battery power to 120 volts to pro-
vide electricity for small appliances and electrical
equipment. It is located in the driver-side luggage
compartment. See
Fig. 11.11. The unit has one
three-pin GFIC OUT connector, one three-pin GFIC
IN connector, and two AC power outlets.
DANGER
Do not store gasoline, flammable material, or any
component with a connection to the fuel system
in the storage compartment with the inverter/
charger. The unit contains equipment that may
produce sparks. Storing flammable or electrical
equipment in proximity to the unit could result in
fire or explosion hazards, which could result in
serious injury or death.
The display on the sleeper control panel provides
information about the operation of the unit. See
Fig. 11.12 (Xantrex Freedom) or Fig. 11.13 (Eaton).
Refer to Table 11.3 for general control panel details.
f54606602/17/2017

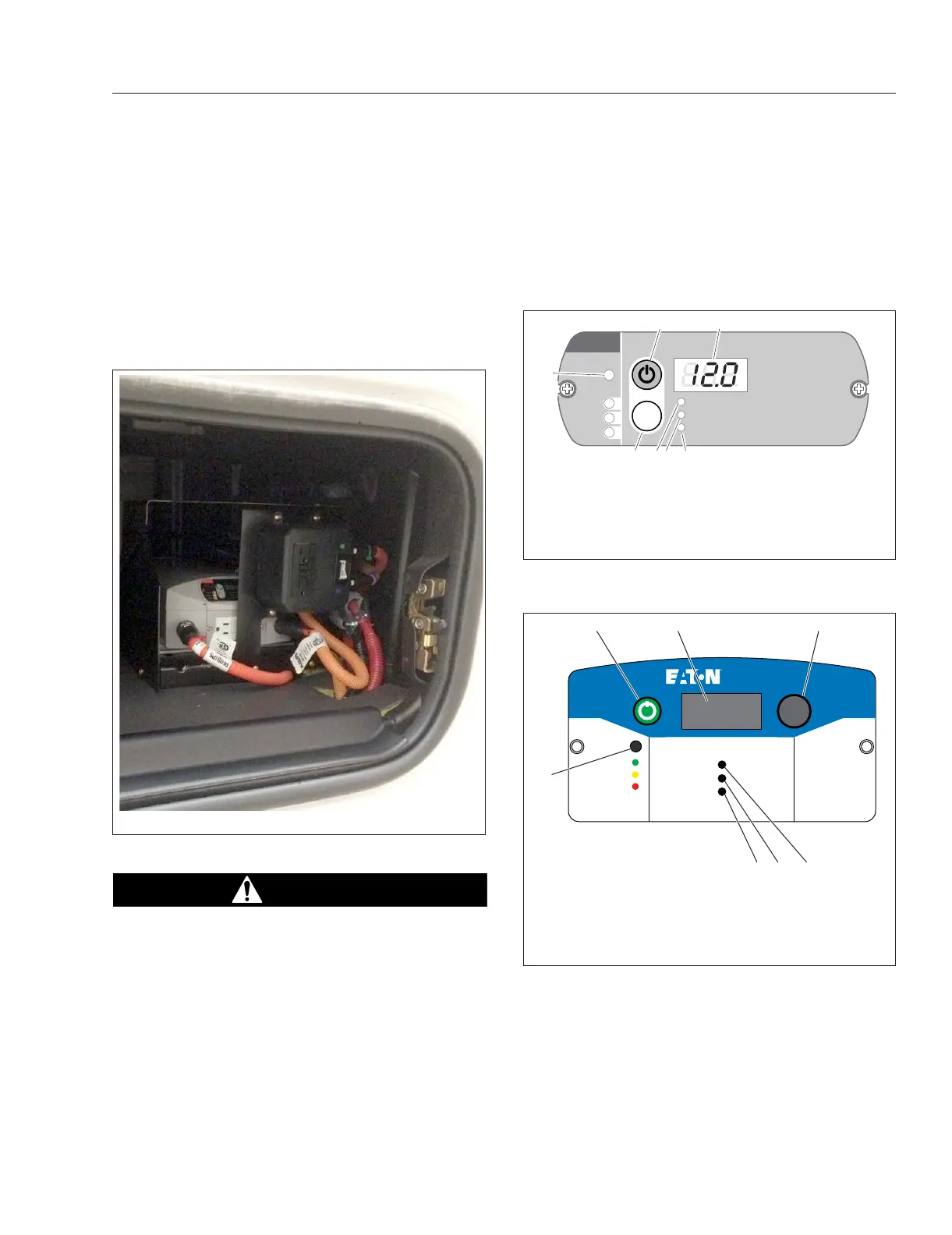

Fig. 11.11, Inverter/Charger
f546067a09/09/2016
FREEDOM HF
Input Voltage (V)
Se l e c t
STAT US
Bat t er y
Fa u l t
Ut il ity
Input Current (A)
Out put Power (kW)
1
54
3
7
2
6
1. Power Button
2. LED Display
3. Select Status Display
Button
4. Input Voltage LED
5. Input Current LED
6. Output Power LED
7. Status LED
Fig. 11.12, Inverter/Charger Display Panel (Xantrex
Freedom)
Status
Input Current (A)
Output power ( )KW
Utility
Battery
Fault
SELECT
True Sine Wave
Input Voltage (V)
Inverter
f54664208/12/2020
12 3
456
7
1. Power Button
2. LED Display
3. Select Status Display
Button
4. Input Voltage LED
5. Input Current LED
6. Output Power LED
7. Status LED
Fig. 11.13, Inverter/Charger Display Panel (Eaton)
