Daimler Freightliner Cascadia 2021 - Headlight Aiming Screen;Wall; Vertical Low-Beam Headlight Variation Limits

f546264
02/25/2016
B
B
1
2
3
25 ft (7.6 m)
A
A
A. Measure the distance from the ground to the center of each headlight bulb.
B. Mark where the center of each headlight projection should appear.
1. Screen or Wall
2. Center of Right-Hand Headlight Projection
3. Center of Left-Hand Headlight Projection

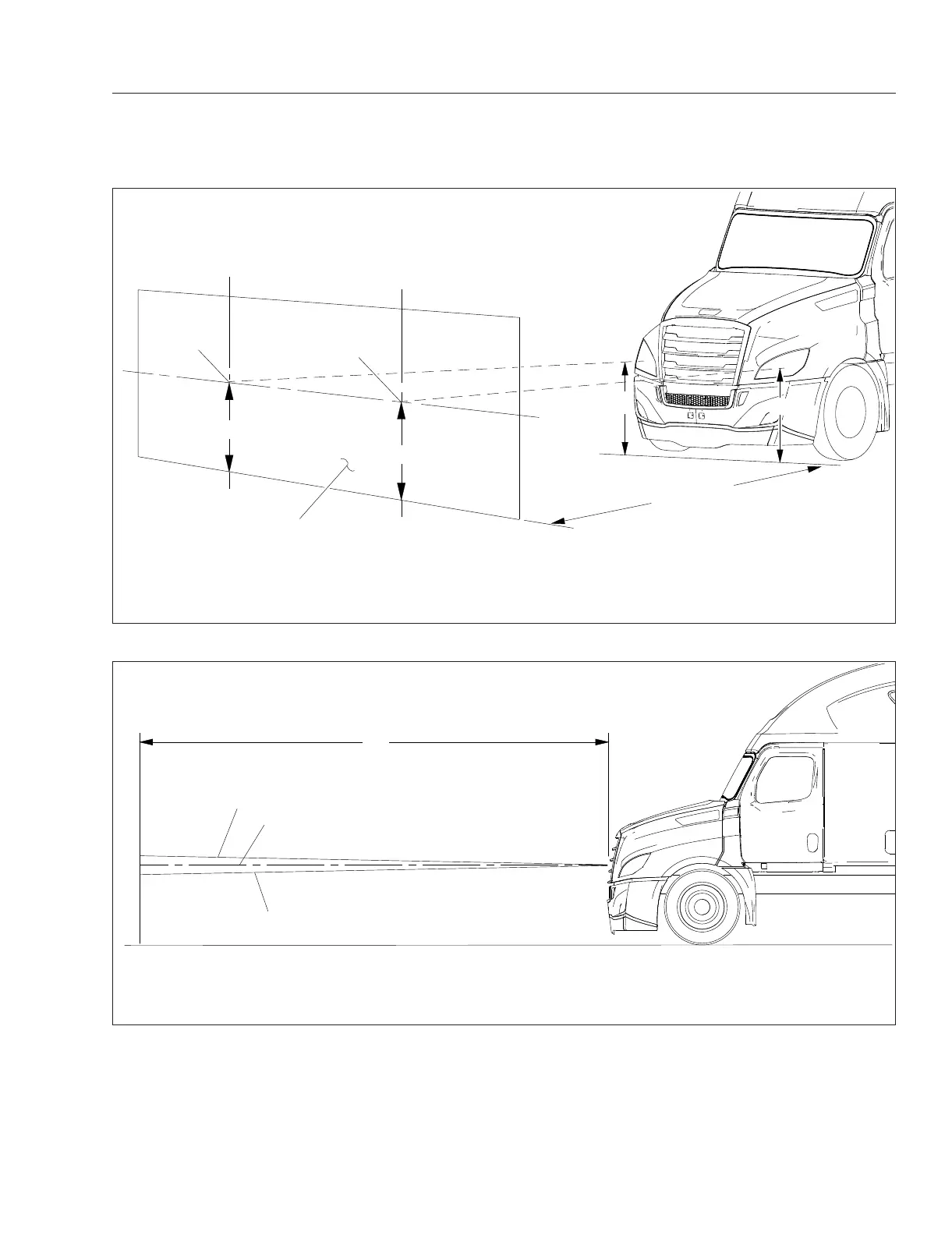

Fig. 22.2, Headlight Aiming Screen/Wall
02/25/2016 f546265
A
1
2
3
A. Measurement: 25 ft (7.6 m)
1. Low-Beam Angle Upper Limit
2. Ideal Low-Beam Projection
3. Low-Beam Angle Lower Limit
Fig. 22.3, Vertical Low-Beam Headlight Variation Limits
Headlights
22.2
