3.
Remove the bulb from the headlamp assembly
by twisting the bulb counterclockwise a quarter
turn then lifting the bulb out of the headlamp as-
sembly.
4.
Squeeze the connector lock and slide the red
locking tab down to disconnect the electrical con-
nector. See
Fig. 22.6.
CAUTION
Ensure that the bulb is installed correctly, and
that it is firmly seated in the headlamp housing.
Improper bulb installation may result in melting
or fire damage to the vehicle.
IMPORTANT: Do not touch the glass of the bulb
during replacement. Any oils or debris that come
in contact with the glass of the bulb may
shorten the life of the lamp.
5.
Connect the electrical connector to the new lamp
and slide the red locking tab up.
6.
Position the bulb in the headlamp housing, then
twist the bulb clockwise a quarter turn.
7.
Visually verify from either the front or back that
the bulb is correctly oriented in the headlamp
housing.
See
Fig. 22.7 to verify from the front that the
three tabs of the headlamp housing are correctly
oriented.
See
Fig. 22.8 and Fig. 22.9 to verify the correct
installation from the back. The lamp is fully
seated only when the connector is pointing
straight down.
8.
Install the back cover on the headlamp housing.
f54692901/11/2019
1
2
3
1. Turn Signal Lamp, 4157NAL LL, 28.5/8.3 Watt (dual
element)
2. Low Beam Headlamp, H11, 55 Watt
3. High Beam Headlamp, H11, 55 Watt

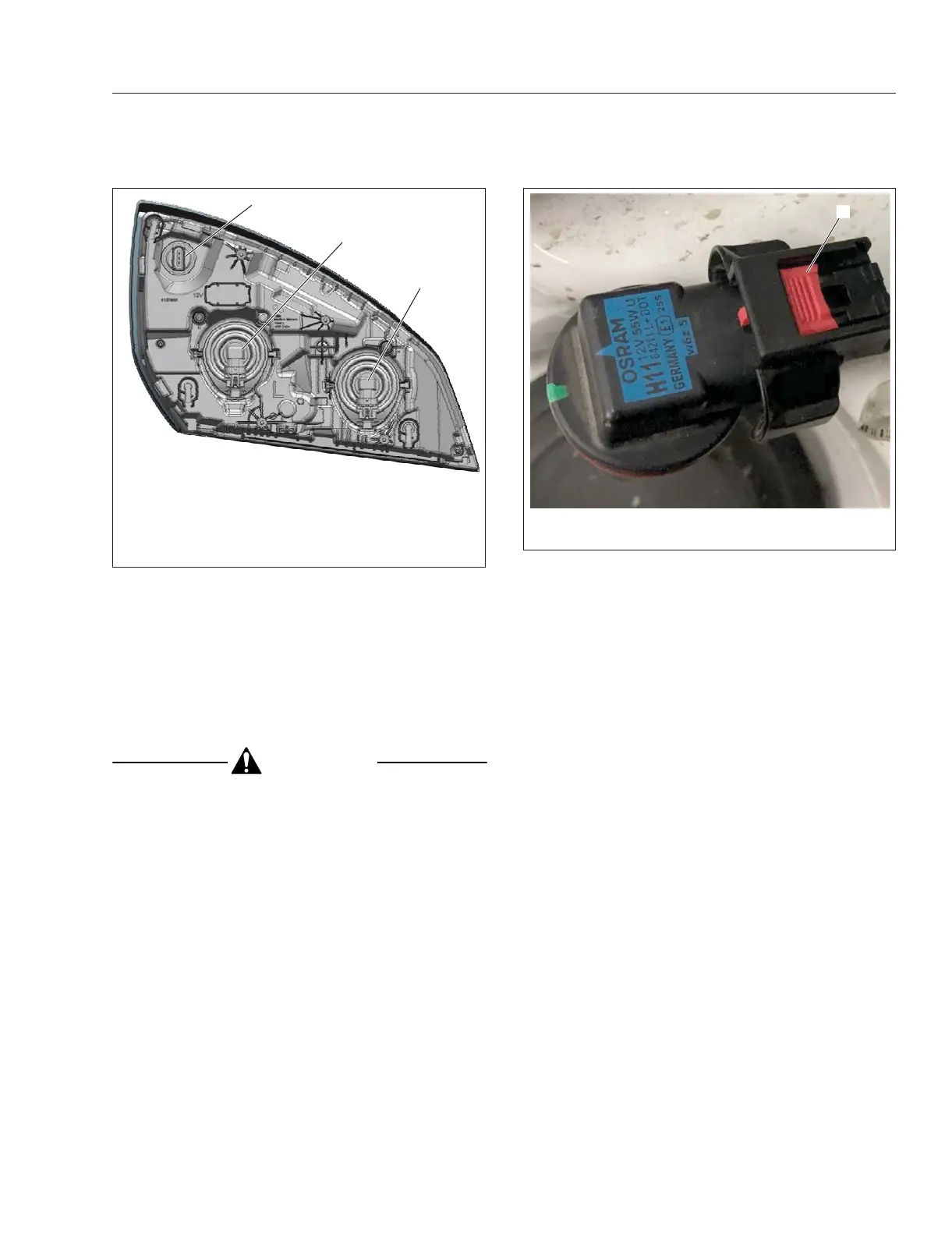

Fig. 22.5, Halogen Headlamp Assembly
f54692801/11/2019
1
1. Red Locking Tab
Fig. 22.6, Halogen Headlamp Electrical Connector
Headlights
22.4
