Headlight Aiming, Preliminary
Checks
Before checking or adjusting the headlight aim, do
the following.
•
Check that the hood is closed and latched.
•
Remove any large amounts of mud or ice from
the underside of the fenders.
•
Check the springs for sagging or broken
leaves.
•
Check the suspension for proper functioning of
the leveling mechanism. On cabs with air sus-
pensions, make sure that the height is properly
adjusted.
•
Check for damage to the hood and hinge as-
sembly. Repair as necessary.
•
With the vehicle unloaded, check that the tires
are inflated to the recommended air pressure.
•
Clean the headlight lenses. Use a soft cloth
with mild, non-caustic soap or detergent, and
water.
Headlight Aim Check
1.
Park the vehicle on a level surface, 25 ft (7.6 m)
away from, and perpendicular to, a vertical
screen or wall. Shut down the engine and set the
parking brake. Chock the tires.
2.
Each headlight has a height adjusting dot on the
lens. See
Fig. 22.1. Measure the distance from
the ground to the height adjusting dot on each
headlight (
Fig. 22.2, Item A). Note those
distances.
3.
On the screen or wall, mark the locations of each
headlight bulb center using the distances found
in step 2. See
Fig. 22.2, Items 2 and 3.
4.
Turn on the low-beam headlights.
5.
Check the vertical adjustment of the low beams.
The center of each beam projection should fall
on or near the marks made during step 3. See
Fig. 22.3.
6.
Use Table 22.1 to determine the maximum verti-
cal distance allowable between the marks on the
wall and the center of each low-beam projection.
If the distance between either projection center
and the mark made on the wall or screen is
greater than the maximum distance given in
Table 22.1, adjust the vertical positioning of that
headlight.
Headlight Aim Adjustment
The adjusting screw is located on the bottom of the
headlight assembly, accessible from inside the wheel
well when the hood is closed. See
Fig. 22.4. Re-
move the plug. Turn the adjusting screw clockwise to
raise the beam and counterclockwise to lower it, until
the beam pattern meets the acceptable standard.
f54661309/21/2016
A

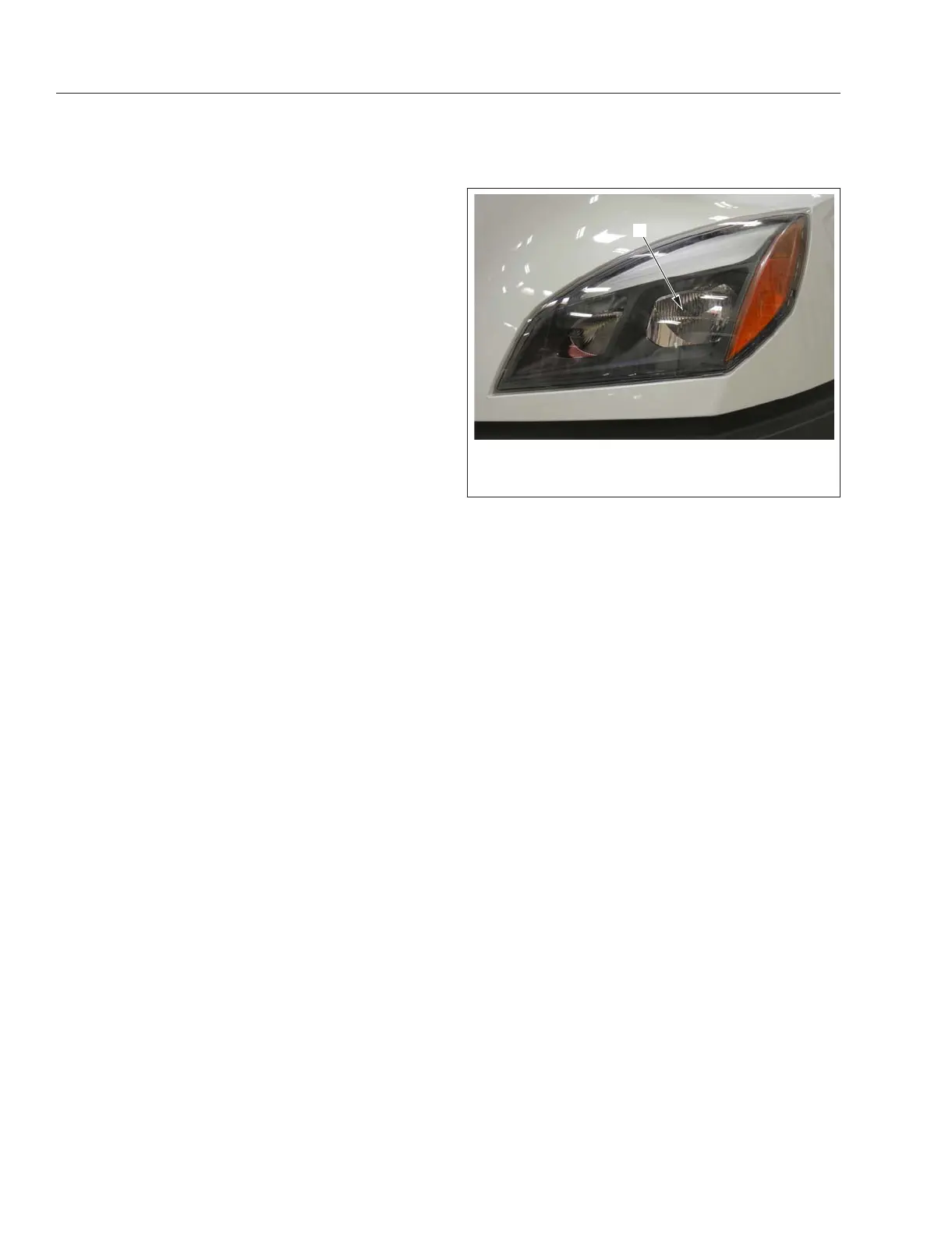

A. The height adjusting dot is located in front of the
low-beam lamp on the headlight lens.
Fig. 22.1, Headlight
Headlights
22.1
