Driver seat occupancy sensor reads someone
in the seat with the seat belt not fastened and
the parking brake off.
•
Key is in the ignition and the door is unlatched.
Warnings, Indicators, and Messages
Warning and indicator lights (telltales) with icon sym-
bols are displayed on the physical dashboard and on
ICU screens. The positions of the telltales and warn-
ings vary, but most telltale symbols are standard.
See the below tables for a listing of different warn-
ings and telltales in addition to messages and popup
screens.
The colors of telltales and warnings indicate the haz-
ard level: red (warning), amber (caution), green and
blue (active status), grey (passive status), white (in-
formational). Blue is currently used to indicate an ac-
tive phone call, that a software download is available,
and that utility lamps and high beams are on.
IMPORTANT: Depending upon local jurisdic-
tional emissions guidelines, vehicles and/or en-
gines that are domiciled outside of the U.S. and
Canada may not be compliant with EPA10 or
GHG21 regulations. Noncompliant vehicles may
not be equipped with all of the telltales shown in
the below tables.

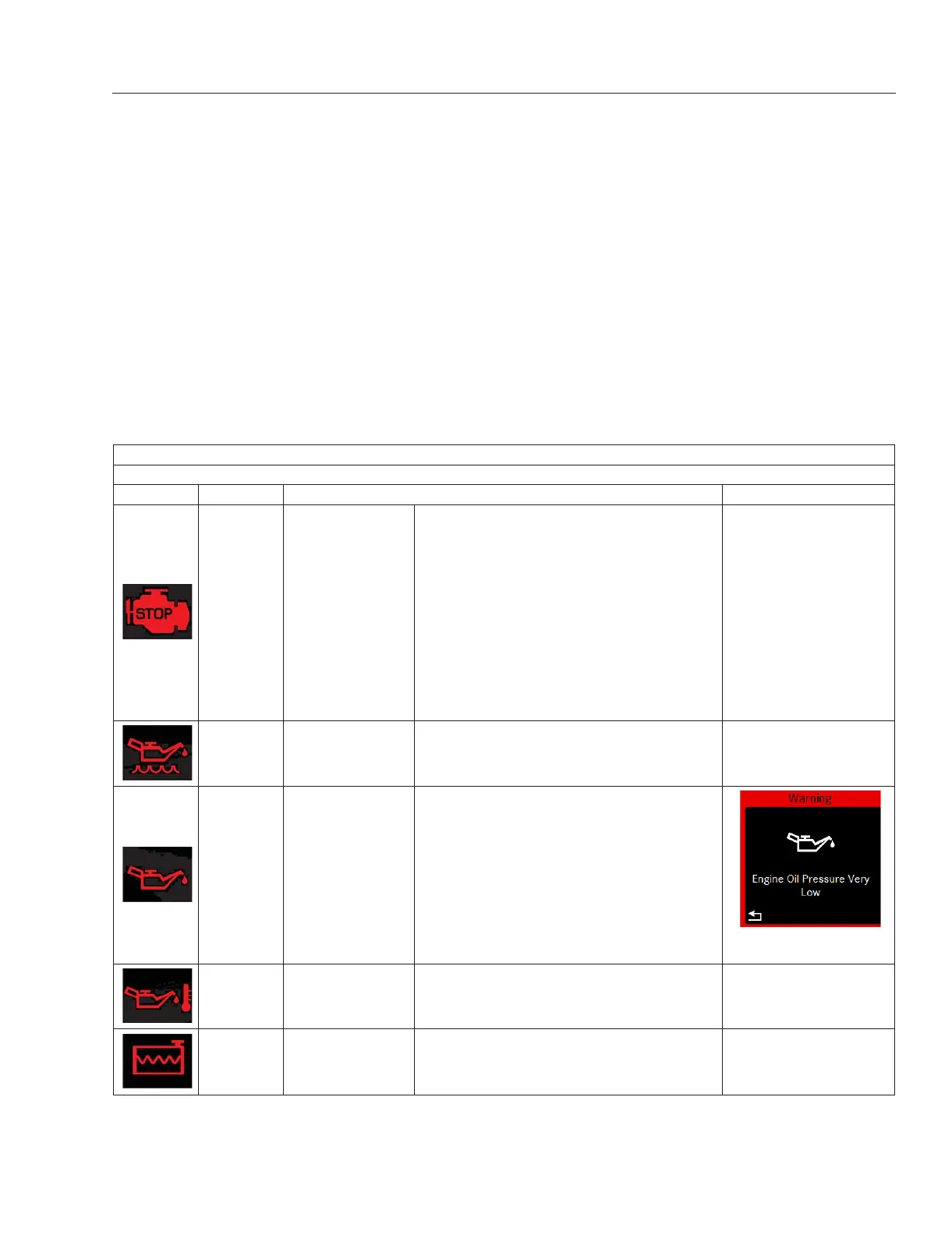

Warnings, Indicators, and Messages
Engine System
Telltale Color Description Related Messages
Red Stop Engine
*
Indicates a serious fault that requires engine
shutdown immediately. The engine protection
system will reduce the maximum engine torque
and speed, and, if the condition does not
improve, will shut down the engine within 30 to
60 seconds.
Safely bring the vehicle to a stop on the side of
the road and shut down the engine as soon as
the red light is seen. If the engine shuts
down while the vehicle is in a hazardous
location, turn the key to the OFF position
for a few seconds, then restart the engine
and move the vehicle to a safer location.
Various
Red
Engine Oil Level
Warning
Red
Low Engine Oil
Pressure
Indicates the engine oil pressure is below the
minimum allowable pressure.
04/22/2016
f611368
ICUC Warning
Red
Engine Oil
Temperature
Warning
Red Low Coolant Level
Instruments
3.52
