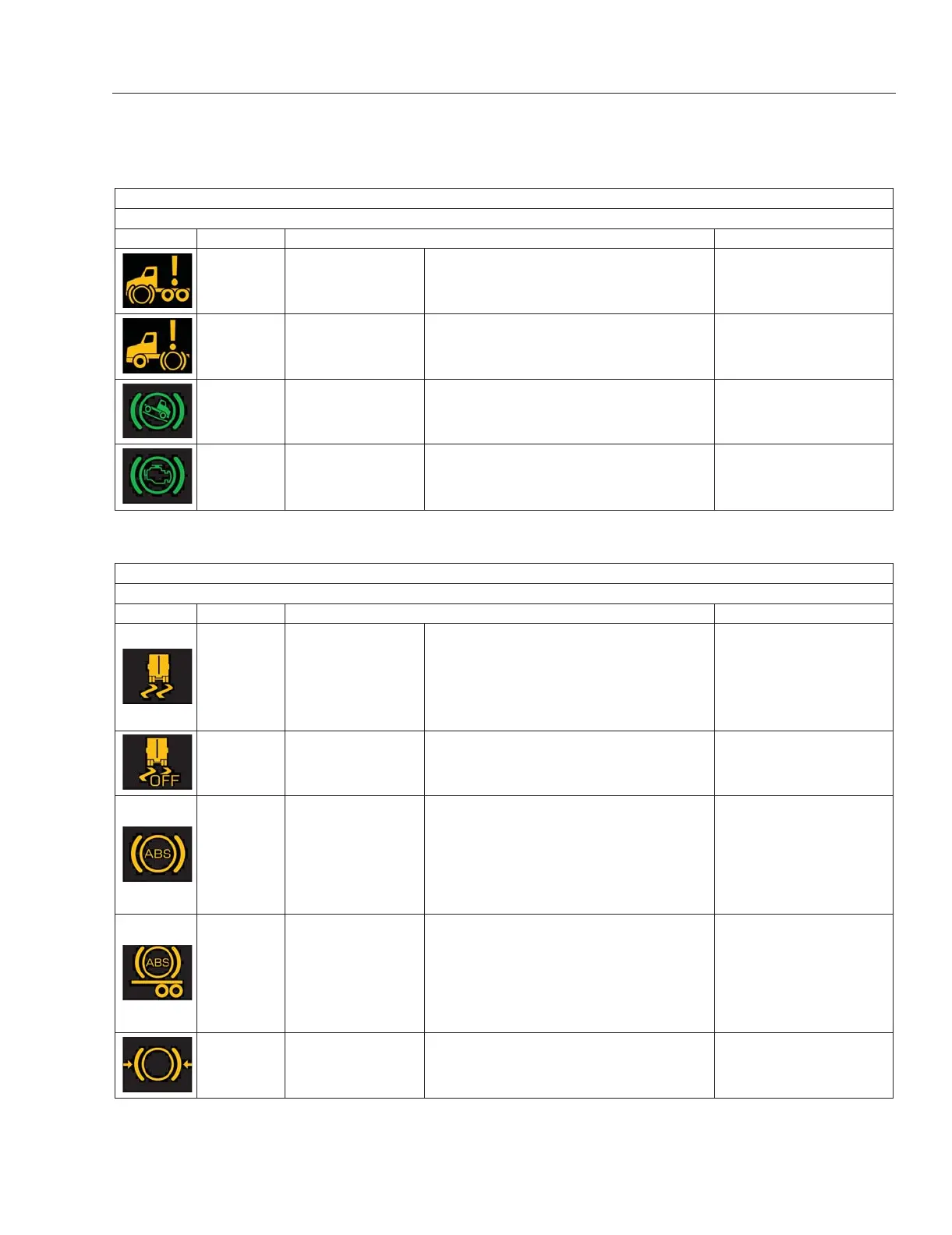

Telltales, Indicator Icons, and Messages
Brakes
Telltale Color Description Related Messages
Amber
Winch Brake
Caution
Amber Work Brake Caution
Green
Descent Control
Mode Engaged
Green
Engine Brake
Engaged
Indicates the engine brake is enabled.
Table 3.9, Brake Related Indicators
Telltales, Indicator Icons, and Messages
Driving Safety
Telltale Color Description Related Messages
Amber
Electronic Stability
Control (ESC)
Active
Flashing indicates a stability event has been
detected, and the ESC system is active.
Solid illumination indicates a problem
with the stability system. Repair the ESC
system immediately to ensure full
stability capability.
Amber
Electronic Stability
Program Off
Amber
Tractor Anti-Lock
Braking System
(ABS)
Momentary illumination indicates the vehicle
ABS is engaged.
Solid illumination indicates a problem with
the vehicle ABS.
Repair the ABS immediately to ensure
full braking capability.
Amber
Trailer Anti-Lock
Braking System
(ABS)
Momentary illumination indicates the trailer
ABS is engaged.
Solid illumination indicates a problem with
the trailer ABS.
Repair the ABS immediately to ensure
full braking capability.
Amber
Active Brake Assist
Active
Indicates Active Brake Assist is engaged.
