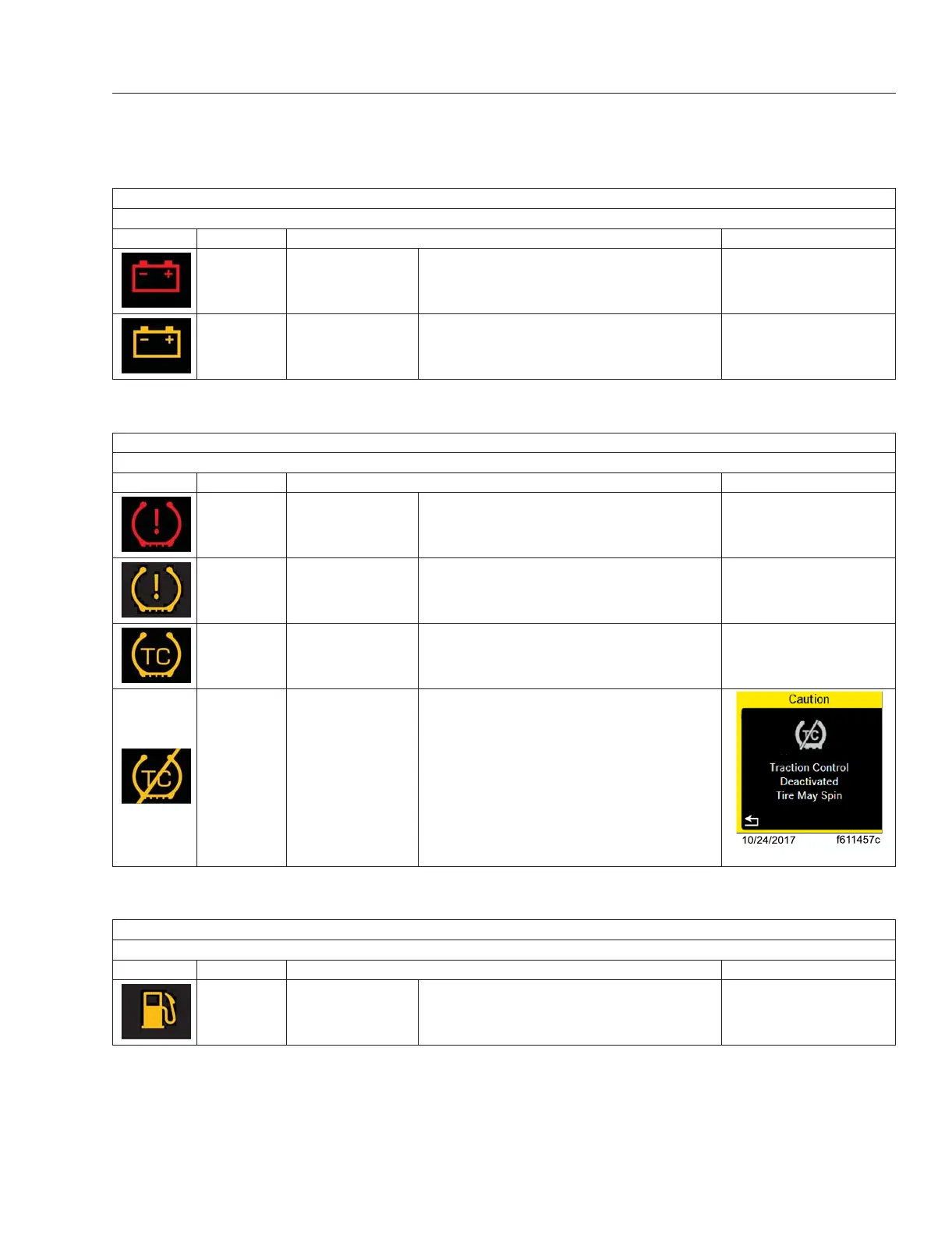

Telltales, Indicator Icons, and Messages
Battery
Telltale Color Description Related Messages
Red Battery Failure
Amber Battery Failure
Table 3.12, Battery Related Indicators
Telltales, Indicator Icons, and Messages
Tire Related Indicators
Telltale Color Description Related Messages
Red
Low Tire Pressure
Warning
Indicates a notable loss of tire pressure in at
least one tire.
If a tire monitoring system
is available, the tire(s)
with low pressure will be
highlighted red.
Amber
Low Tire Pressure
Warning
Indicates low tire pressure in at least one tire.
If a tire monitoring system
is available, the tire(s)
with low pressure will be
highlighted amber.
Amber
Automatic Traction
Control (ATC)
Active
Flashing indicates a wheel spin event has
been detected, and the ATC system is active.
Amber
Automatic Traction
Control (ATC)
Deactivated
Indicates the ATC SPIN button has been
pressed to allow wheel slip.
ICUC Caution
Table 3.13, Tire Related Indicators
Telltales, Indicator Icons, and Messages
Fuel
Telltale Color Description Related Messages
Amber Low Fuel
Indicates low fuel level.
Refill the main fuel tank.
Instruments
3.60
