Telltales, Indicator Icons, and Messages
Lamps

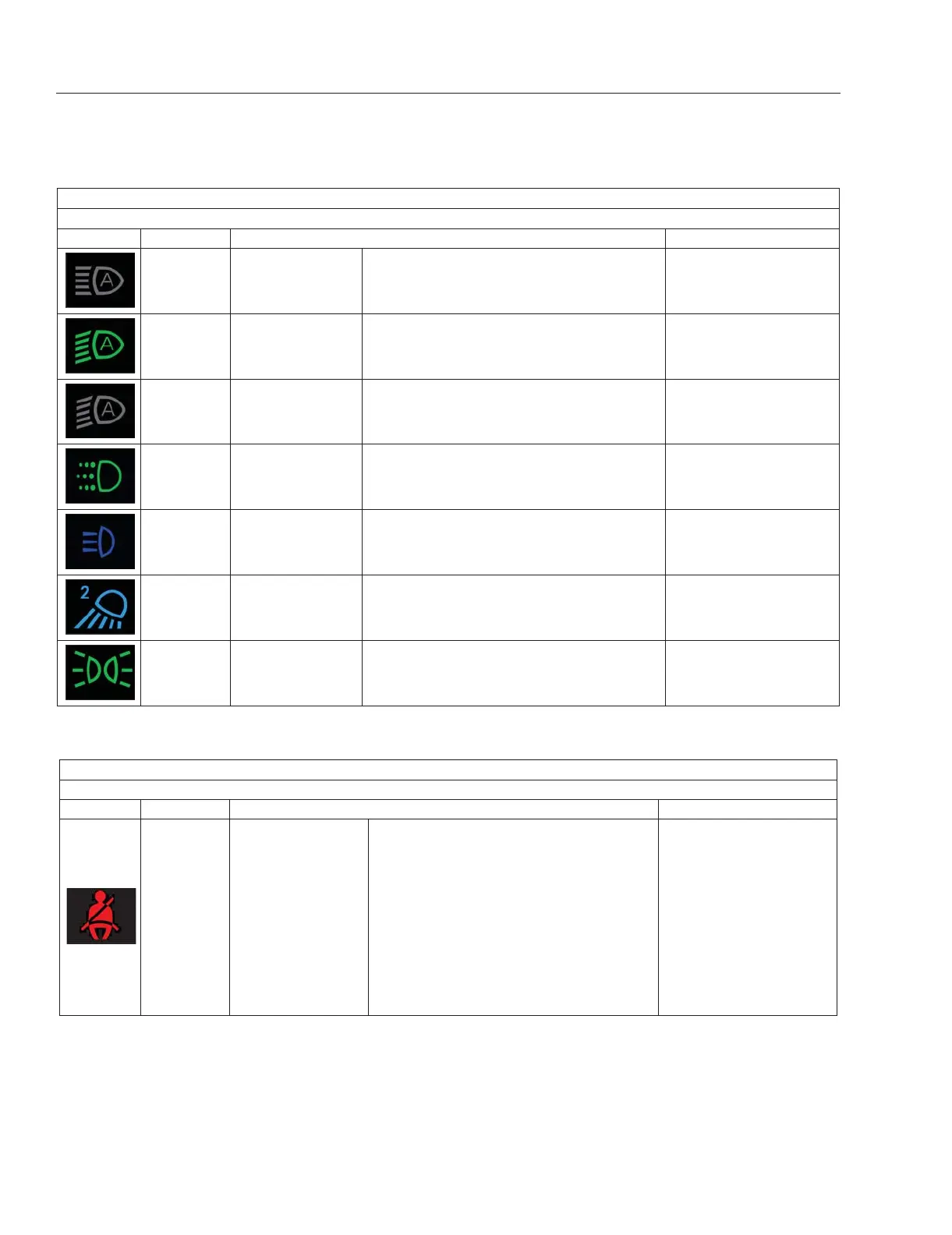

Telltale Color Description Related Information
Grey
Automatic High-
Beams Off
Indicates the high-beam headlights have been
set to automatic and are off.
Green
Automatic Low-
Beams On
Indicates the low-beam headlights have been
set to automatic and are on.
Grey
Automatic Low-
Beams Off
Indicates the low-beam headlights have been
set to automatic and are off.
Green
Daytime Running
Lamps On
Indicates the daytime running lamps are on.
Blue
Auxiliary Drive
Lamps On
Indicates the auxiliary drive lamps are on.
Blue Utility Lamps On Indicates the utility lamps are on.
Green
Taillights / Marker
Lamps On
Indicates the taillights, aka marker lamps, are
on.
Table 3.16, Lamp Indicators
Telltales, Indicator Icons, and Messages
Passenger Safety
Telltale Color Description Related Message
Red
Unfastened Seat
Belt
On some vehicles, activates with an audible
alert when the system detects that the
parking brake is off and the driver seat belt
is not fastened.
On vehicles with a seat occupancy sensor,
the seat being occupied, seat belt not
fastened, and parking brake off will cause
this warning to activate.
On other vehicles, this lamp illuminates for
15 seconds when the ignition is first turned
on.
