Connecting the Scanner
The scanner kit you ordered to match your interface should provide a compati-
ble cable for your installation. Use the appropriate instructions below to con-
nect the scanner to the terminal, PC or other host device.
Upon completing the connection via the appropriate interface instructions
below, proceed
to the Interface Related Features section of this manual and
scan the bar code to select
the correct interface type.
RS-232 Serial Connection — Turn off power to the terminal/PC and connect the
scanner to the terminal/PC serial port via the RS-232 cable as shown in Figure
1. If the terminal will not support POT (Power Off the Terminal) to supply scan-
ner power, use the approved power supply (AC Adapter). Plug the AC Adapter
ba
rrel connector into the socket on the RS-232 cable connector and the AC
Adapter plug into a standard power outlet.

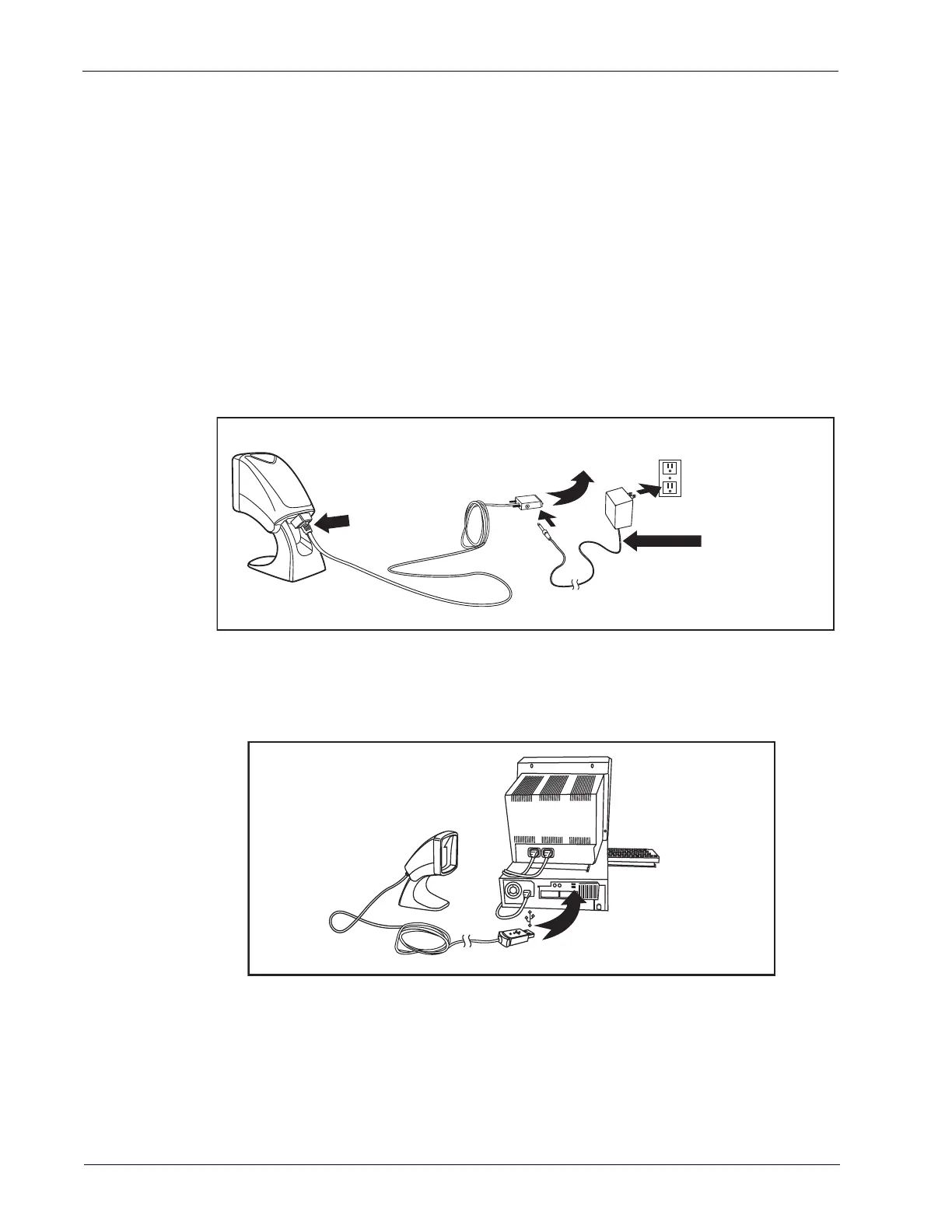

Figure 1 . RS-232 Serial Connection using A/C Adapter
I/F Cable
A/C Adapter
(if needed)
For 220-230 VAC
adapters, the
cord must be
facing down as
shown in the
illustration. If
installed upwards,
it will pose an
undue strain on the
socket outlet.
To Host/Terminal
Connect
Here
USB Connection — Connect the scanner to a USB port on the terminal/PC using
the correct USB cable for the interface type you ordered. Reference Figure 2.
Figure 2. USB Connection
U
S
B

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
