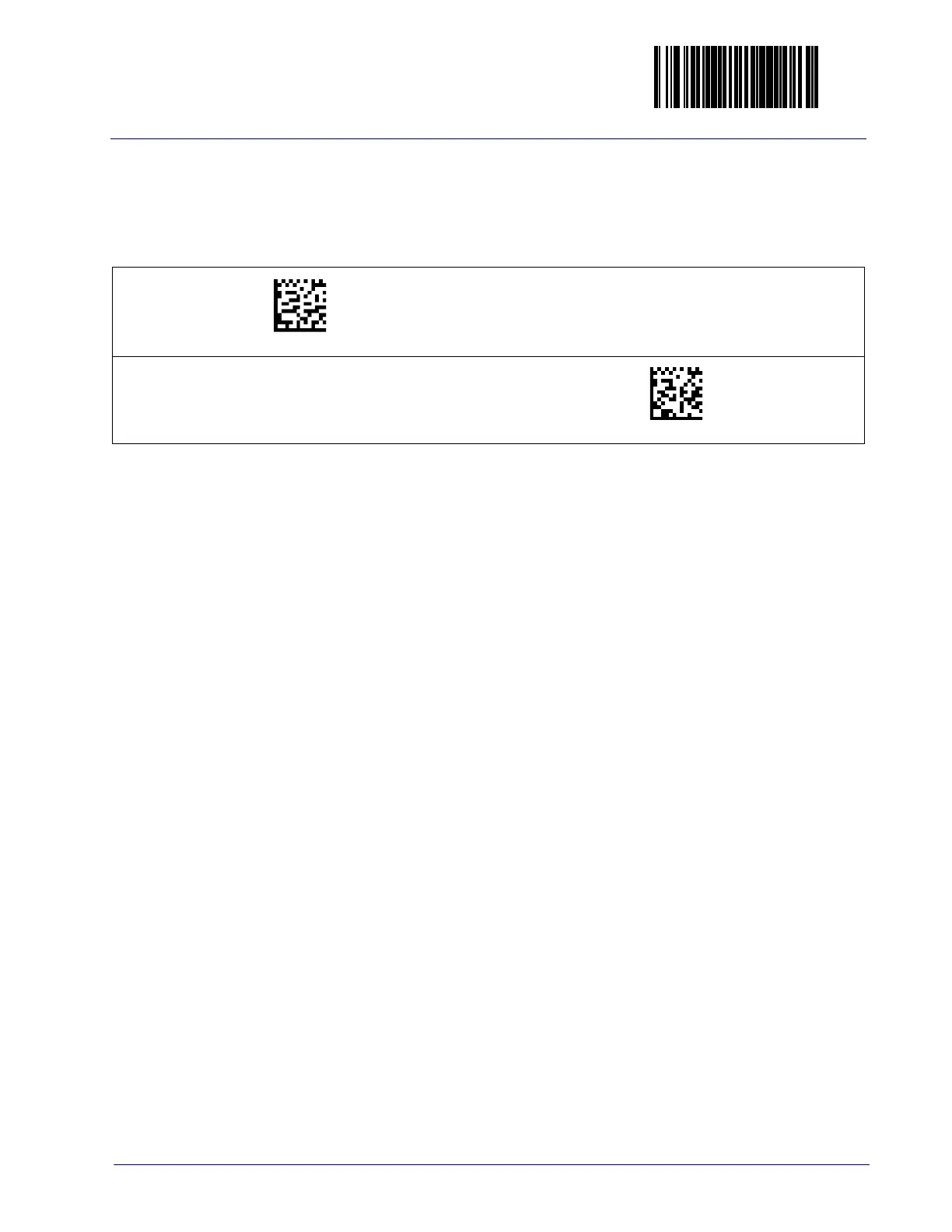

Enter/Exit Programming Mode
Product Reference Guide 125
Maxicode
Disable/Enable Maxicode
When disabled, the scanner will not read Maxicode labels.
Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a bar code if the label length falls in the range of the configu-
rable minimum and maximum length.
Configuring Fixed Length Decoding:
1. Scan the START bar code.
2. Scan the Fixed Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the first fixed length by following the Length 1, Length 2
Programming Instructions below.
5. Set Length 2 to the second fixed length (or to ‘0000’ if there is only one
fixed length) by following the Maxicode Length 1, Length 2 Programming
Instructions below.
Configuring Variable Length Decoding:
1. Scan the START bar code.
2. Scan the Variable Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the minimum length by following the Maxicode Length 1,
Length 2 Programming Instructions below.
5. Set Length 2 to the maximum length by following the Maxicode Length 1,
Length 2 Programming Instructions below.
Disable Maxicode
DEFAULT
Enable Maxicode
03D000(CR)
03D001(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
