Datalogic Magellan 800i Product Reference Guide

Enter/Exit Programming Mode USB COM Interface Set-up
45 Magellan™ 800i Scanner
Intercharacter Delay
• If the transmission speed is too high, the system may not be able to receive all characters.
You may need to adjust the delay to make the system work properly. Selectable from 00 to
99.
USB Keyboard: 00 = 1 ms USB Host poll rate.
Non-zero values less than 25 are 10 ms
increments in USB Host poll rate values greater than 25 result in a USB Host poll rate of
255 ms.

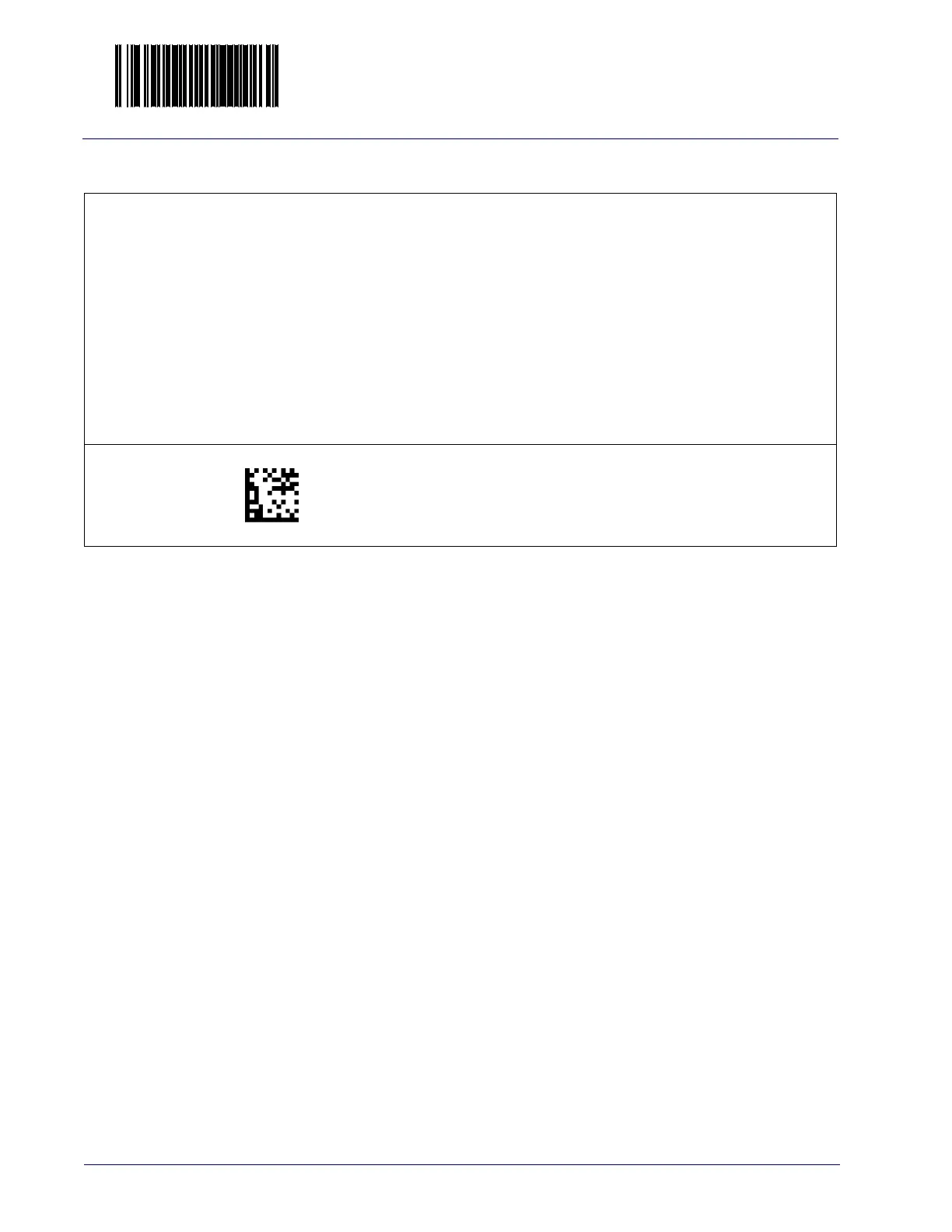

To configure this feature, scan the ’Enter/Exit Programming Mode’ bar code above to
pl
ace the unit in Programming Mode, then the “Set Intercharacter Delay,” followed by the
two digits (zero padded) from the Alphanumeric table in Appendix C, Alphanumeric Pad
representing your desired length. Exit prog
ramming mode by again scanning the ’Enter/
Exit Programming Mode’ bar code above/
DEFAULT SETTING FOR THIS FEATURE:
01
0287(CR)
Set Intercharacter Delay
USB COM Interface Set-up
To set the reader to use the USB Com interface, follow these instructions:
1. Download and install the USB Com driver available from the www.data-
logic.com website.
2. Program the reader for the USB Com interface using the bar code located
on
page 28.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
