Datalogic Magellan 800i Product Reference Guide

Programming
Product Reference Guide 3
Programming
The scanner is typically factory-configured with a set of default features stan-
dard to the interface type you
ordered. After scanning the interface bar code
from the Interface Related Features section, you ca
n select other options and
customize your scanner through use of the instructions and programming bar
co
des available in that section and also the Data Editing and Symbologies chap-
ters of this manual.
Using the Programming Bar Codes
This manual contains feature descriptions and bar codes which allow you to
reconfigure your scanner. Some programming bar code labels, like the label
below for resetting defaults, require only the scan of that single label to enact
the change. Most of the programming labels in this manual, however, require
the scanner to be placed in Programming Mode prior to scanning them. Scan a
START/END bar code once to enterProgramming Mode. Once the scanner is in
Programming Mode, you can scan a number of parameter settings before scan-
ning the START/END bar code a second time, which will then accept your
ch
anges, exit Programming Mode and return the scanner to normal operation.
Resetting the Standard Product Defaults
If you are unsure of what programming options are in your scanner, or you’ve
changed some options and want the factory settings restored, scan the
Stan-
dard Product Default Settings
bar code below. This will copy the factory config-
uration for the currently active interface to the current configuration

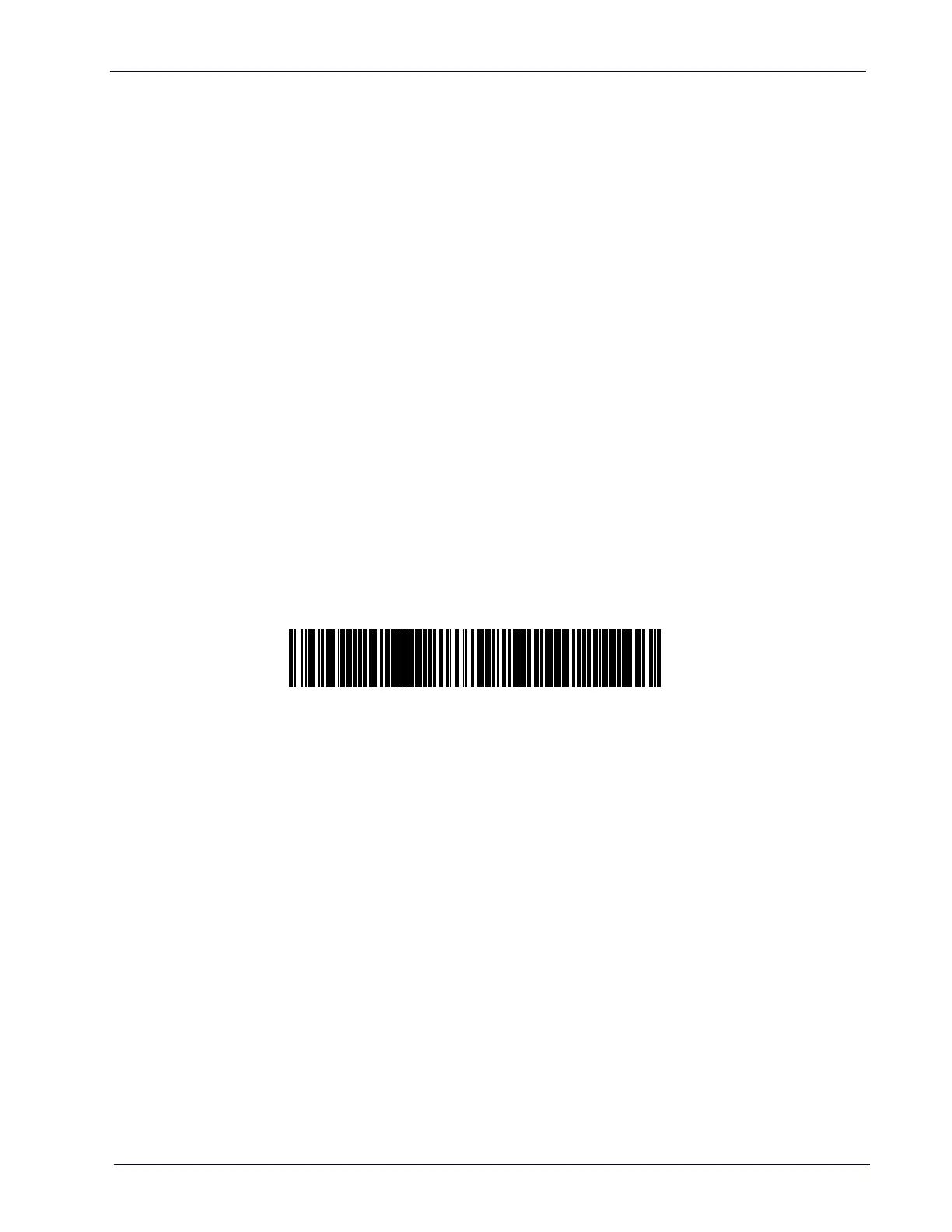

Standard Product Default Settings
.
The programming section lists th
e factory default settings for each of the menu
commands for the standard RS-232 interface in BOLD text on the following
pages. Exceptions to default settings for the other interfaces can be found in
Appendix D, Default Settings.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
