Datalogic Magellan 800i Product Reference Guide

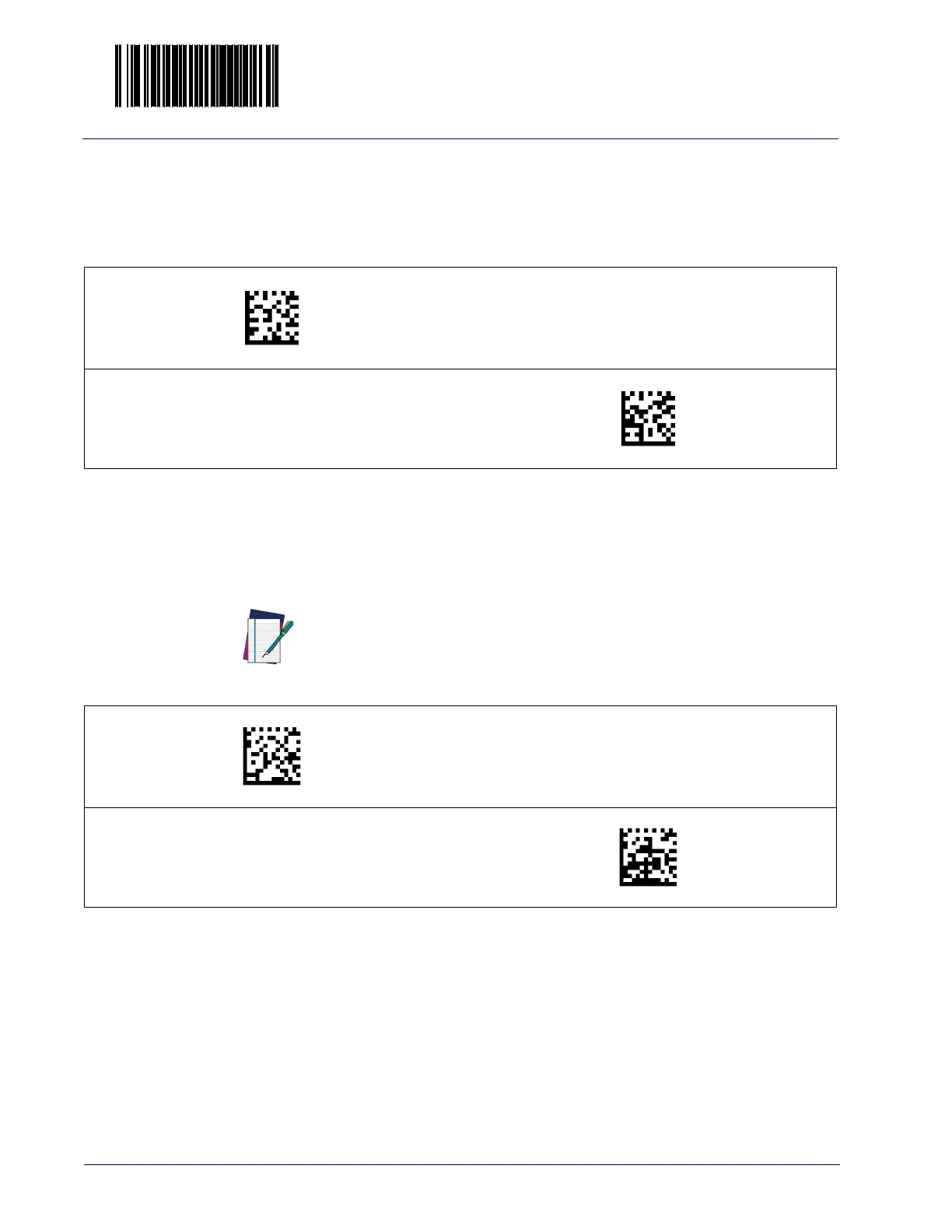

Enter/Exit Programming Mode 2D Symbologies
120 Magellan™ 800i Scanner
Datamatrix
Disable/Enable Datamatrix
When disabled, the scanner will not read Datamatrix bar codes.
Dot Matrix Datamatrix Labels
When enabled, the scanner will read Datamatrix labels ink printed with ROUND,
dot matrix modules.
Length Control
Fixed Length Decoding — When fixed length decoding is enabled, the scanner
will decode a bar code if the label length matches one of the configurable fixed
lengths.
Variable Length Decoding — When variable length decoding is enabled, the scan-
ner will decode a bar code if the label length falls in the range of the configu-
rable minimum and maximum length.
Disable Datamatrix
DEFAULT
Enable Datamatrix
010000(CR)
010001(CR)
NOTE
This feature does NOT support dot-peened, laser or chem-
ical etched labels.
Disable Dot Matrix
DEFAULT
Enable Dot Matrix
037E00(CR)
037E01(CR)

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
