Enter/Exit Programming Mode 2D Symbologies
124 Magellan™ 800i Scanner

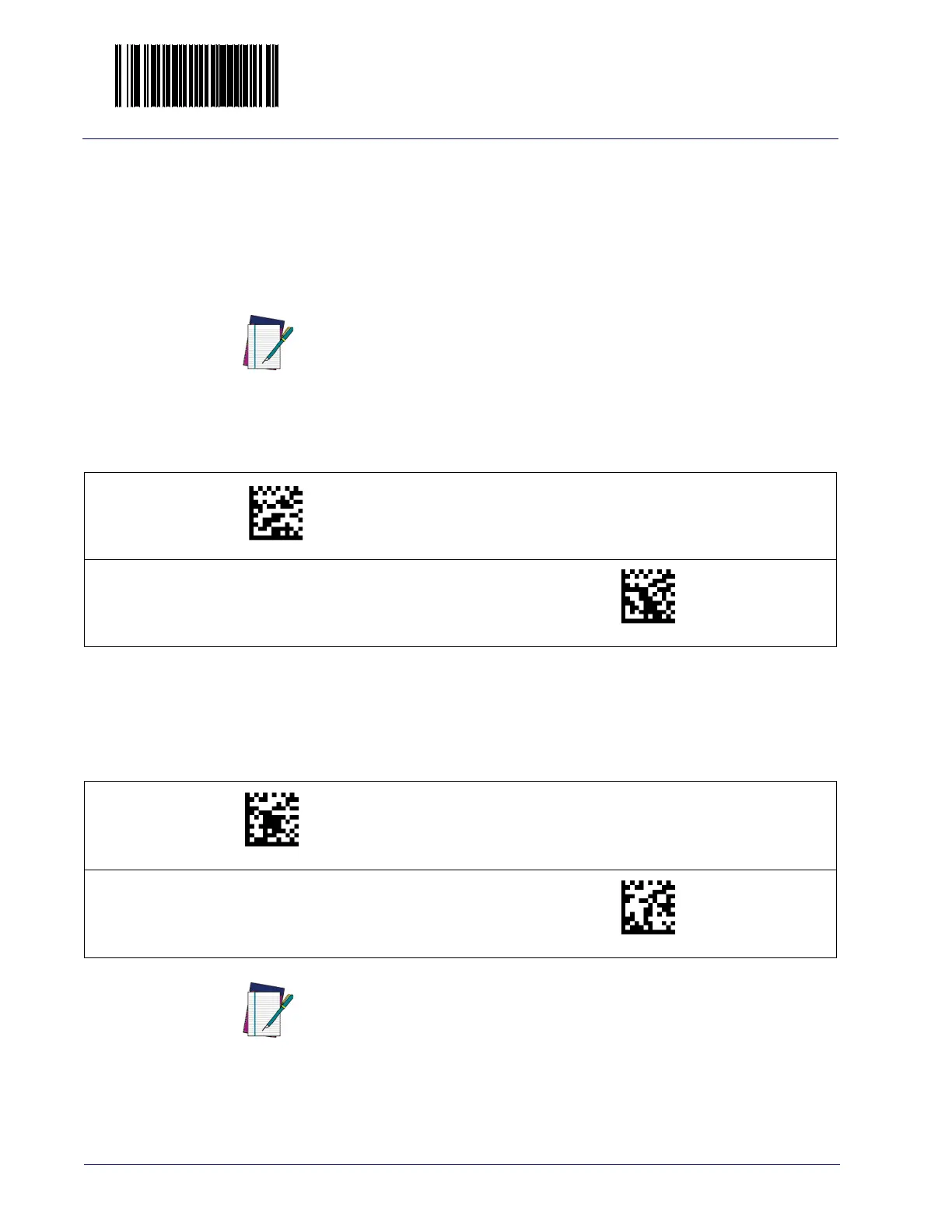

QR Code Length 1, Length 2 Programming Instructions
1. Scan the START bar code.
2. Scan either the Set Length 1 or Set Length 2 bar code.
3. Turn to Alphanumeric Pad and scan the four digits (zero-padded) repre-
senting the length.
Scan the END bar code.
Micro QR Code
Disable/Enable Micro QR Code
When disabled, the scanner will not read Micro QR Code labels.
NOTE
For QR Code labels, only the data characters are included
in the length calculations.
Any value set higher than 2710 will be considered to be
2710.
DEFAULT SETTING FOR THIS FEATURE: 0001
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 2710
03DA(CR)
03DB(CR)
Disable Micro QR Code
DEFAULT
Enable Micro QR Code
042800(CR)
042801(CR)
NOTE
Micro QR Code follows all of the QR Code configuration
settings for Length Control.

Datalogic Magellan 800i Specifications

General

Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Aztec Code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Tilt reading angle	0 - 360 °
Optical sensor resolution	752 pixels
Light levels (direct sunlight)	0 - 86000 lx
Bluetooth	No
Cable length	2 m
Standard interfaces	USB
Input voltage	5 V
Power consumption	350 mA
Dimensions (WxDxH)	76 x 109 x 151 mm
Certification	China RoHS EU RoHS
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	306.2 g
